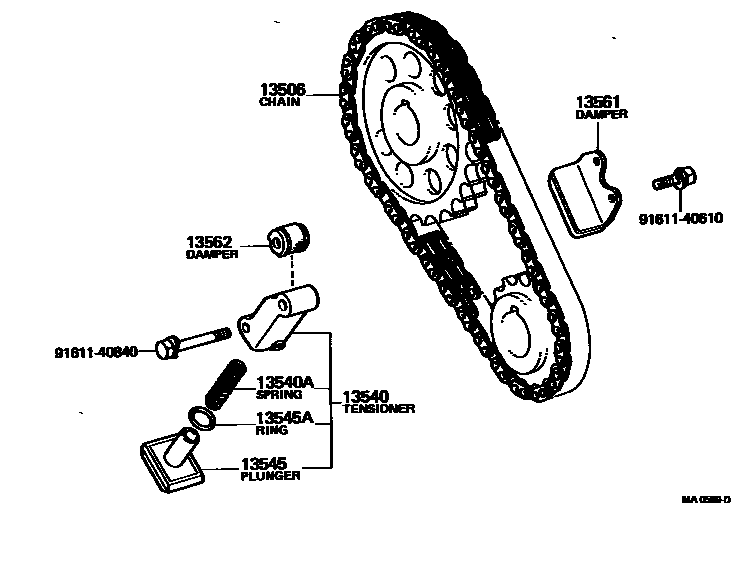

Toyota DYNA — TIMING CHAIN
13506CHAIN SUB-ASSY
13540TENSIONER ASSY, CHAIN, NO.1
13540ASPRING, COMPRESSION(FOR CHAIN TENSIONER)
13545PLUNGER, CHAIN TENSIONER
13545ARING, O(FOR CHAIN TENSIONER)
13561DAMPER, CHAIN VIBRATION, NO.1
13562DAMPER, CHAIN VIBRATION, NO.2
9161140610
main91611-40610
9161140840
main91611-40840
9 parts on this diagram · 1 diagram in section
TIMING CHAIN for Toyota DYNA
This section contains 9 genuine Toyota parts for the TIMING CHAIN system of the Toyota DYNA. Key components include: CHAIN SUB-ASSY, TENSIONER ASSY, CHAIN, NO.1, SPRING, COMPRESSION(FOR CHAIN TENSIONER), PLUNGER, CHAIN TENSIONER, RING, O(FOR CHAIN TENSIONER).
