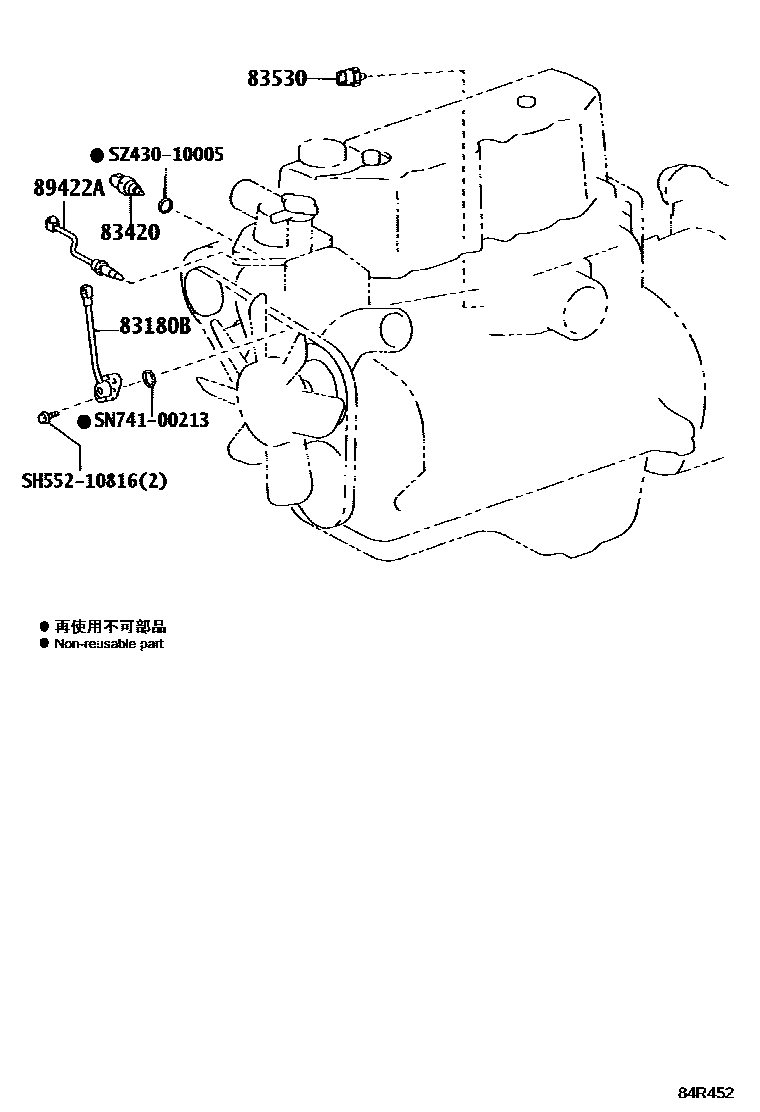

Toyota DYNA — SWITCH & RELAY & COMPUTER

83180BDETECTOR ASSY, REVOLUTION

mainS831901482i201107-202005

83420GAGE ASSY, WATER TEMPERATURE SENDER

mainS834201250i201107-202005

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-E0210i201107-201908

main83530-E0220i201107-201908

main83530-E0250i201909-202005

main83530-E0260i201909-202005

89422ASENSOR, WATER TEMPERATURE

mainS834301840i201107-202005

SH55210816

mainSH552-10816

SN74100213

mainSN741-00213

SZ43010005WASHER, SOFT, NO.1

mainSZ430-10005

7 parts on this diagram · 23 diagrams in section

SWITCH & RELAY & COMPUTER for Toyota DYNA

This section contains 141 genuine Toyota parts for the SWITCH & RELAY & COMPUTER system of the Toyota DYNA. Key components include: RELAY ASSY, STARTER, RELAY, STARTER CUT, RELAY, IGNITION, NO.1, TIMER ASSY, PREHEATING, RELAY ASSY, INTAKE HEATER OR GLOW PLUG.
