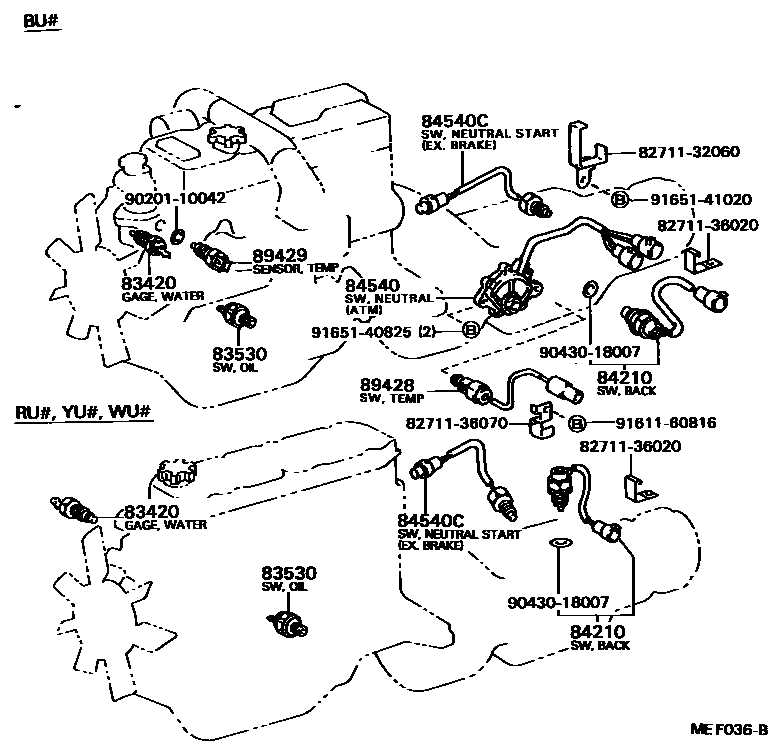

Toyota DYNA — SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-20020iRU75,85,WU9#,YU6#,7#,8#198409-198708

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14010iRU75,85,WU9#,YU6#,70,80198409-198502

main83530-14030iRU75,85,WU9#,YU6#,7#,8#198502-198708

sub83530-28030

84210SWITCH ASSY, BACK-UP LAMP

main84210-36010iRU75,85,YU6#,70,80198409-198508

main84210-60021iWU9#198409-198708

84540SWITCH ASSY, NEUTRAL START

main84540-36040

main84540-36050

84540CSWITCH ASSY, NEUTRAL (FOR EXHAUST BRAKE)

main84540-36040iWU9#198409-198508

main84540-36050iWU9#..GEN198508-198708

89428SWITCH, TEMPERATURE DETECT, NO.2

89429SENSOR, OIL TEMPERATURE

8271132060WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-32060

8271136020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-36020

8271136070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-36070

9020110042

main90201-10042

9043018007

main90430-18007

9161160816

main91611-60816

9165140825

main91651-40825

9165141020

main91651-41020

15 parts on this diagram · 6 diagrams in section
