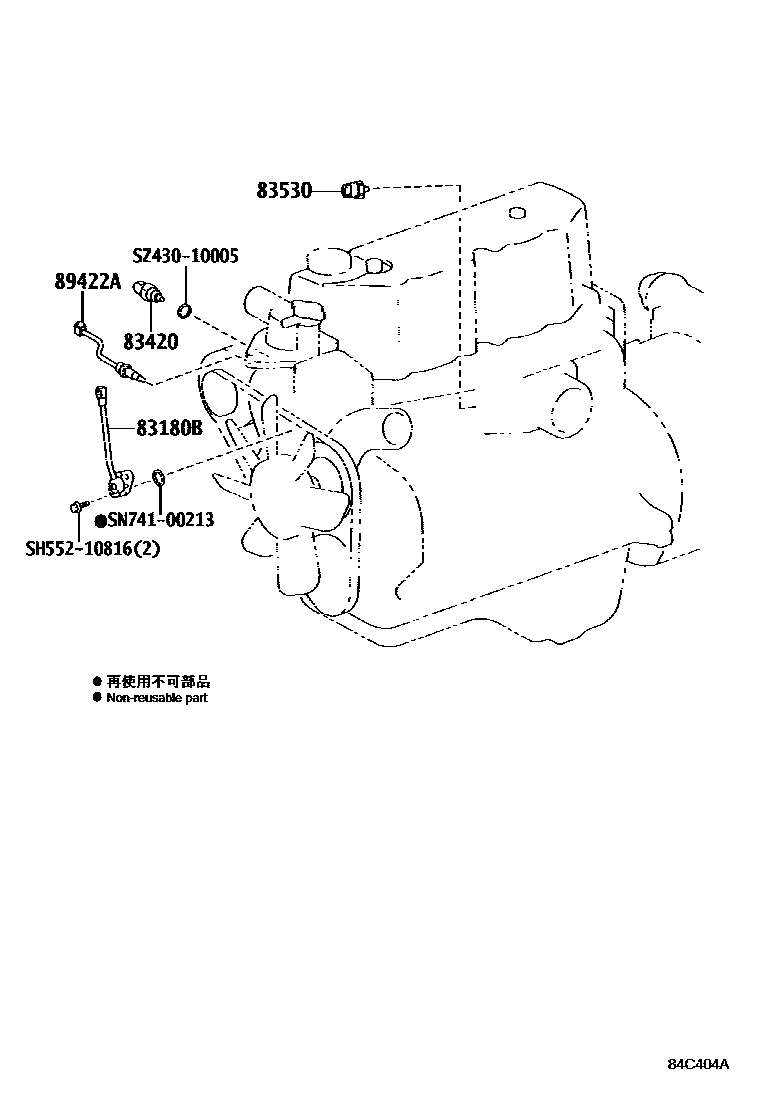

83180BDETECTOR ASSY, REVOLUTION

mainS831901482iWU600,650201107-202005

83420GAGE ASSY, WATER TEMPERATURE SENDER

mainS834201250iXZU600..GCC;WU600,650,XZU650201107-202005

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-E0210iWU600,650201107-201908

sub83530-E0260

main83530-E0220iXZU600,650201605-201908

sub83530-E0250

main83530-E0250iXZU600..GEN201909-202005

main83530-E0260iWU600,650201909-202005

89422ASENSOR, WATER TEMPERATURE

mainS834301840iWU600,650201107-202005

SH55210816

mainSH552-10816

SN74100213

mainSN741-00213

SZ43010005WASHER, SOFT, NO.1

mainSZ430-10005

7 parts on this diagram · 17 diagrams in section
