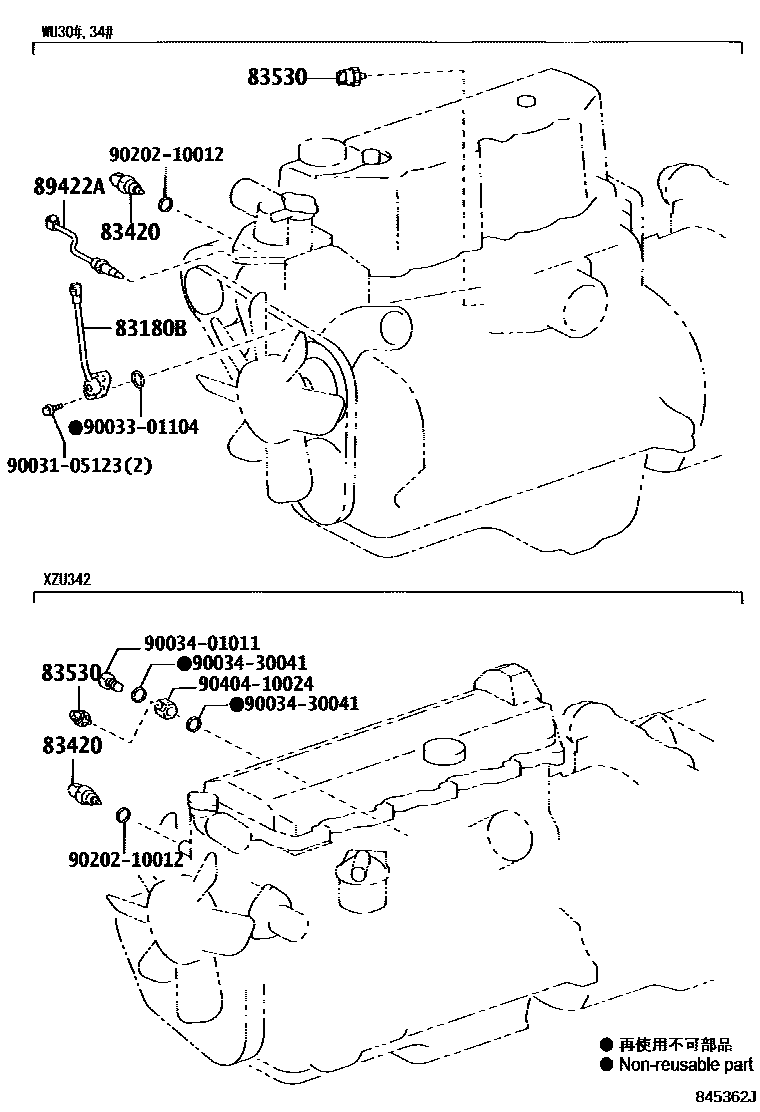

83180B DETECTOR ASSY, REVOLUTION
83420 GAGE ASSY, WATER TEMPERATURE SENDER
main S834201250 i XZU349..6F;XZU309..IV3 202203-202310 83530 SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
main 83530-37030 i WU302,342,352..DCRTP,DCRTR 200209-201106 main 83530-E0250 i XZU349..5F;XZU309,359..IV1,IV8 202203-202310 89422A SENSOR, WATER TEMPERATURE
main 89422-37030 i BU303,343,XZU300,320,330,340..GEN,TAIW 200411-200610 10 parts on this diagram · 40 diagrams in section
SWITCH & RELAY & COMPUTER for Toyota DYNA This section contains 166 genuine Toyota parts for the SWITCH & RELAY & COMPUTER system of the Toyota DYNA. Key components include: AIR CLEANER, RELAY ASSY, STARTER, RELAY, STARTER CUT, RELAY, IGNITION, NO.1, RELAY, IGNITION, NO.2.
