Toyota DYNA — SUPERSHIFT
27690BSOLENOID ASSY, W/BRACKET
84222ASWITCH, TRANSFER INDICATOR
2P
3P
84340BSWITCH ASSY, CLUTCH(FOR SUPER SHIFT)
84722GSWITCH, TRANSMISSION CONTROL
84726CLEANER, TRANSMISSION CONTROL
89250ABRACKET ASSY, CLUTCH SWITCH
W/CLUTCH BOOSTER
89428CSWITCH, TEMPERATURE(FOR SUPER SHIFT)
89530BCOMPUTER ASSY, TRANSMISSION CONTROL
8271122270WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-22270
8271130580WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-30580
8271136030WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-36030
9017910016
main90179-10016
9040112005
main90401-12005
9040451046
main90404-51046
9040451048
main90404-51048
9040451319
main90404-51319
9043012247
main90430-12247
9046716002
main90467-16002
9165140616
main91651-40616

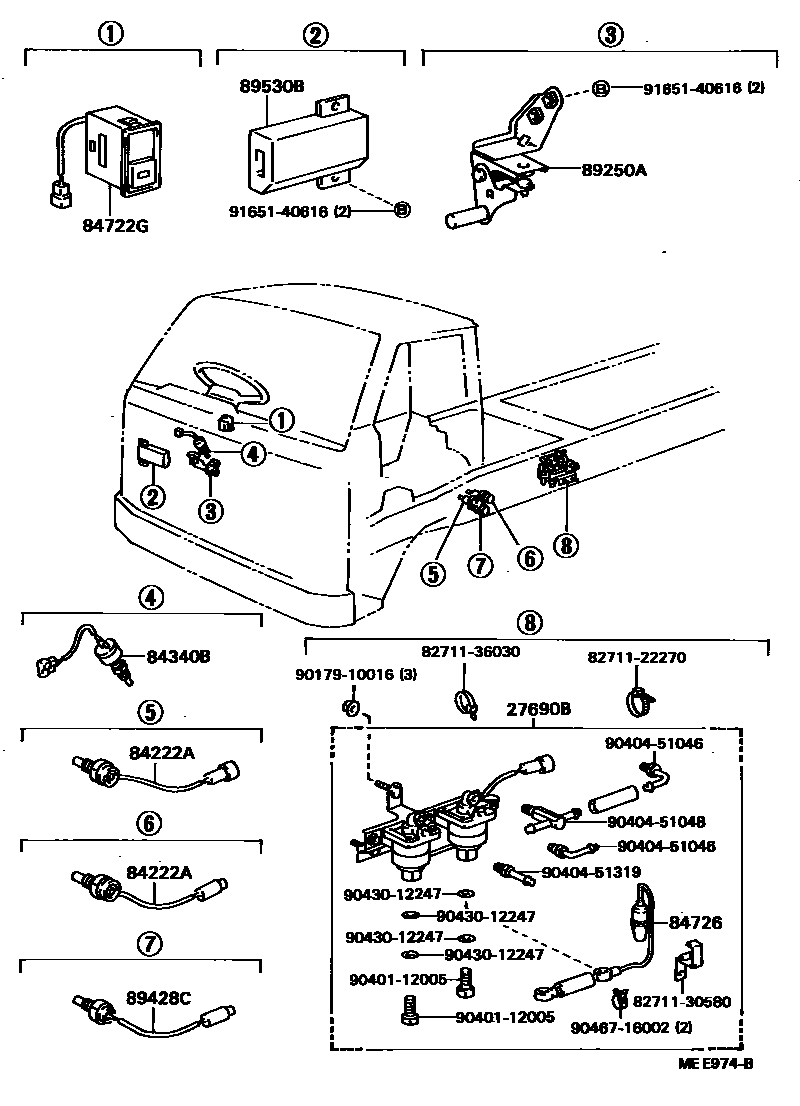

19 parts on this diagram · 1 diagram in section
SUPERSHIFT for Toyota DYNA
This section contains 19 genuine Toyota parts for the SUPERSHIFT system of the Toyota DYNA. Key components include: SOLENOID ASSY, W/BRACKET, SWITCH, TRANSFER INDICATOR, SWITCH ASSY, CLUTCH(FOR SUPER SHIFT), SWITCH, TRANSMISSION CONTROL, CLEANER, TRANSMISSION CONTROL.
