Toyota DYNA — STEERING WHEEL
45100WHEEL ASSY, STEERING
2-SPOKE,URETHANE,MD.CHARCOAL,TRIM1#
2-SPOKE,URETHANE,W(SRS AIR BAG),MD.CHARCOAL,TRIM1#
45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45130BUTTON ASSY, HORN
main45130-36120-B0iWU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,419,423,425,427,429,433,435,439..DCRTJ,DCRTK,DSL200610-201208
MD.CHARCOAL,TRIM1#
W(SRS AIR BAG),MD.CHARCOAL,TRIM1#
45176RING, HORN CONTACT
45180COVER SUB-ASSY, STEERING WHEEL
MD.CHARCOAL,TRIM1#
45201PNUT, STEERING WHEEL SET
9014950032
main90149-50032

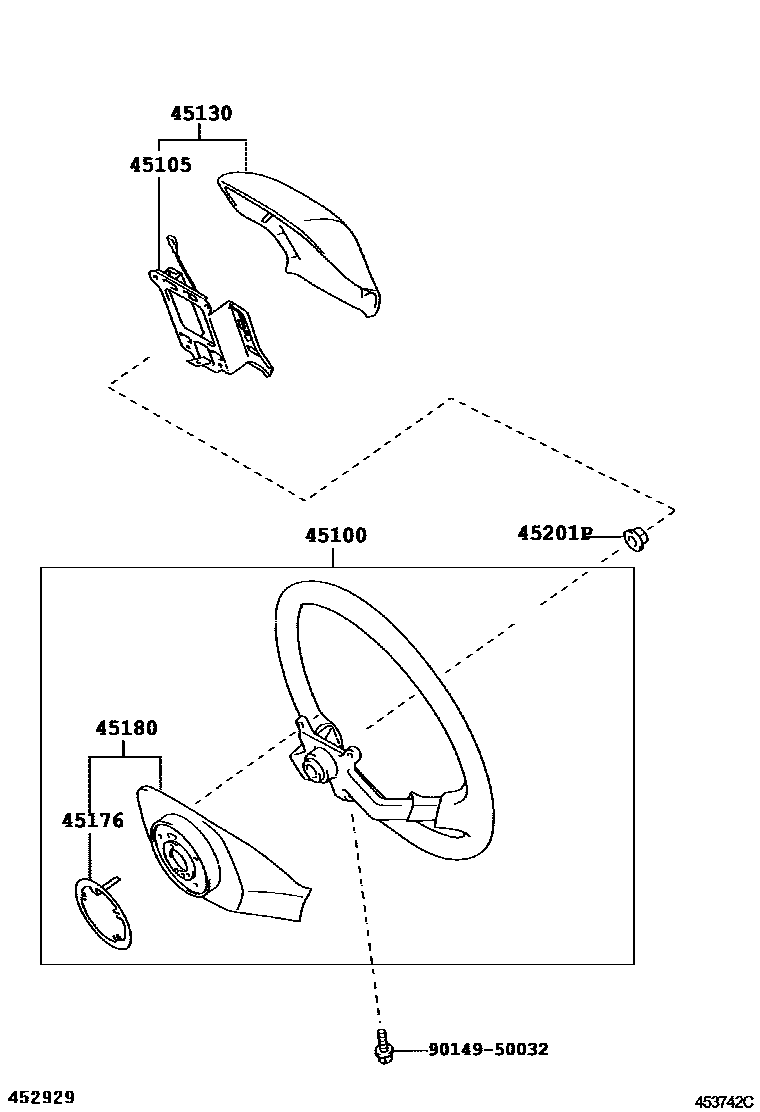

7 parts on this diagram · 2 diagrams in section
STEERING WHEEL for Toyota DYNA
This section contains 8 genuine Toyota parts for the STEERING WHEEL system of the Toyota DYNA. Key components include: WHEEL ASSY, STEERING, PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1, BUTTON ASSY, HORN, RING, HORN CONTACT, COVER SUB-ASSY, STEERING WHEEL.
