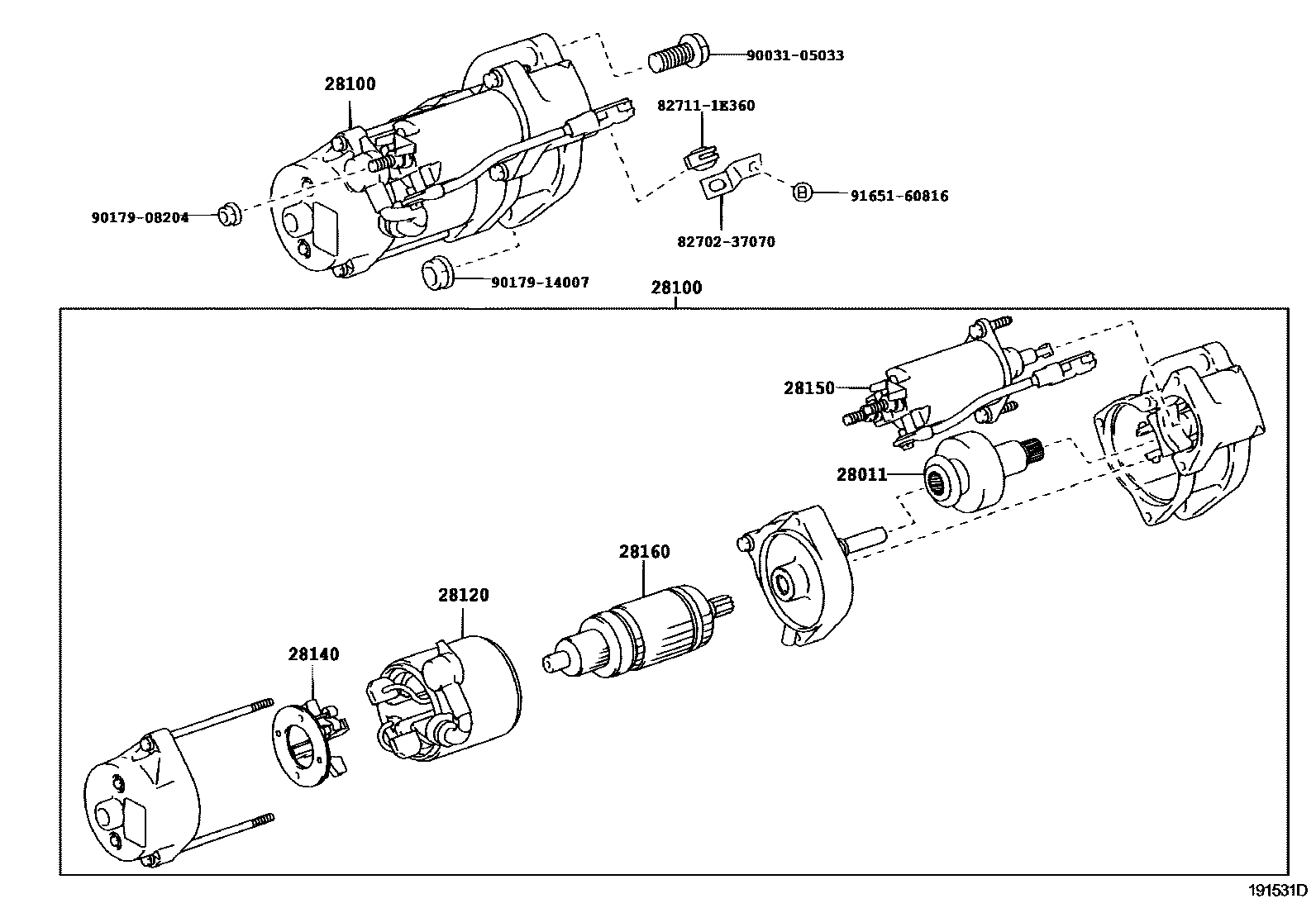

Toyota DYNA — STARTER

0001 124V 4.5KW 0002 124V 4.5KW 0003 124V 4.5KW 0004 124V 5.0KW 0005 124V 4.5KW 0006 124V 4.5KW 0007 124V 5.0KW

28011CLUTCH SUB-ASSY, STARTER

main28011-54010i15BFTE..BU410,420200411-200701

main28011-78061iJ05C,S05C..XZU404,412,414,420,422,424,430,434200110-200802

sub28011-78062

main28011-78090iW04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN200610-201106

sub28011-78091

main28011-78111iN04C..XZU415,425,435200608-200708

sub28011-78112

28100STARTER ASSY

main28100-56321i15BFTE..BU410,420200411-200701

24V 4.5KW

sub28100-56332

main28100-78062iJ05C,S05C..XZU404,41#,42#,43#200110-200308

24V 4.5KW

main28100-78063iS05C..XZU414,424,434..EUR200308-200608

24V 4.5KW

main28100-78090iW04D..WU410,420200212-200610

24V 4.5KW

main28100-78112iN04C..XZU415,425,435200608-200610

24V 5.0KW

main28100-78113iN04C..XZU415,425,435200611-200708

24V 5.0KW

sub28100-78114

main28100-78160iW04D..WU412,422200610-201106

24V 4.5KW

28120YOKE ASSY, STARTER

main28120-56221i15BFTE..BU410,420200411-200701

main28120-78060iJ05C,S05C..XZU404,41#,42#,43#200110-200602

subS2812-01801

main28120-78080iJ05C,S05C..XZU404,412,414,420,422,424,430,434200602-200802

main28120-78090iW04D..WU410,420200212-200802

main28120-78110iN04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK200610-200909

main28120-78111iN04C..XZU41#,42#,439200909-201208

28140HOLDER ASSY, STARTER BRUSH

main28140-77090i15BFTE..BU410,420200411-200701

main28140-78060iW04D..WU410,420200110-200802

subS2814-01600

main28140-78080iJ05C,S05C..XZU404,412,414,420,422,424,430,434200602-200802

main28140-78110iN04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK200610-201208

28150SWITCH ASSY, MAGNET STARTER

main28150-56320i15BFTE..BU410,420200411-200701

main28150-78061iJ05C,S05C..XZU404,412,414,420,422,424,430,434200110-200802

subS2815-02244

main28150-78090iW04D..WU410,420200212-200802

main28150-78100iW04D..WU412,422200610-201106

28160ARMATURE ASSY, STARTER

main28160-77090iW04D..WU412,422200610-201106

main28160-78060iW04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN200610-201106

subS2816-01690

main28160-78110iN04C..XZU415,425,435200608-200708

sub28160-78111

8270237070BRACKET SUB-ASSY, WIRING HARNESS

main82702-37070

827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E360

9003105033

main90031-05033

9017908204

main90179-08204

9017914007

main90179-14007

9165160816

main91651-60816
