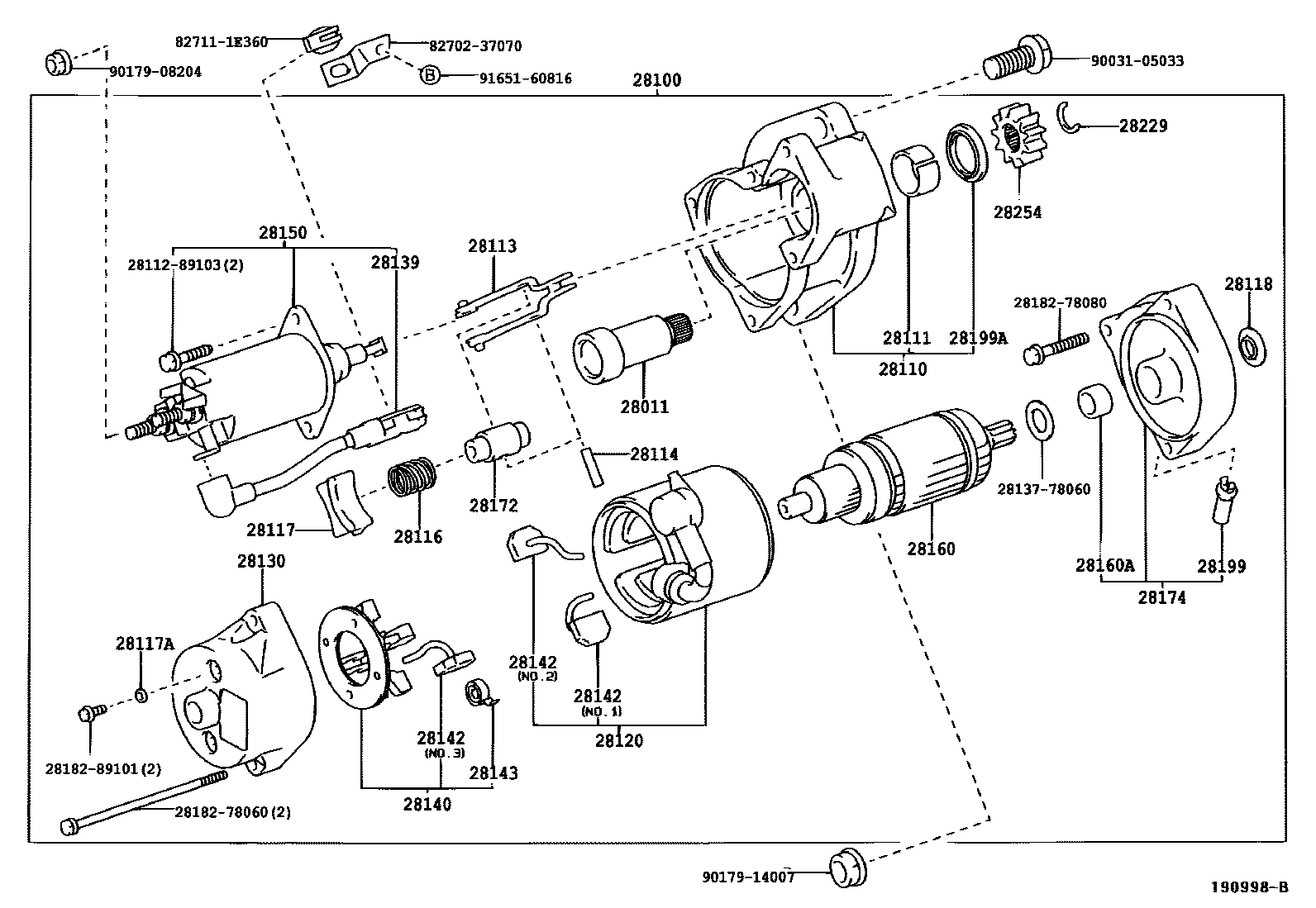

Toyota DYNA — STARTER

0001 1TYPE A 0002 1TYPE B

28011CLUTCH SUB-ASSY, STARTER

main28011-78060iJ05C,S05#..XZU402,41#,420,430200010-200106

TYPE A:REFER TO ILLUSTRATION

subS2825-51022

main28011-78061iJ05C,S05#..XZU402,41#,420,430200106-200206

TYPE A:REFER TO ILLUSTRATION

sub28011-78062

main28011-78070iS05#..XZU411,412200010-200206

TYPE B:REFER TO ILLUSTRATION

sub28011-78071

28100STARTER ASSY

main28100-78061iJ05C,S05#..XZU402,41#,420,430200010-200106

24V 4.5KW,TYPE A:REFER TO ILLUSTRATION

main28100-78062iJ05C,S05#..XZU402,41#,420,430200106-200206

24V 4.5KW,TYPE A:REFER TO ILLUSTRATION

sub28100-78063

main28100-78071iS05#..XZU411,412200010-200105

24V 4.5KW,TYPE B:REFER TO ILLUSTRATION

main28100-78072iS05#..XZU411,412200105-200206

24V 4.5KW,TYPE B:REFER TO ILLUSTRATION

sub28100-78073

28110HOUSING ASSY, STARTER DRIVE

main28115-78060iJ05C,S05#..XZU402,41#,420,430200010-200206

TYPE A:REFER TO ILLUSTRATION

subS2811-52080

main28115-78070iS05#..XZU411,412200010-200206

TYPE B:REFER TO ILLUSTRATION

subS2811-52160

28111BUSH(FOR STARTER HOUSING)

main28111-78060iJ05C,S05#..XZU402,41#,420,430200010-200206

sub28111-78061

28113LEVER, STARTER PINION DRIVE

main28113-78060iJ05C,S05#..XZU402,41#,420,430200010-200206

TYPE A:REFER TO ILLUSTRATION

subS2811-31330

main28113-89101iS05#..XZU411,412200010-200206

TYPE B:REFER TO ILLUSTRATION

subS2811-31290

28114PIN, STARTER DRIVE LEVER SET

main28114-78060iJ05C,S05#..XZU402,41#,420,430200010-200206

TYPE A:REFER TO ILLUSTRATION

subS2811-41120

main28114-89101iS05#..XZU411,412200010-200206

TYPE B:REFER TO ILLUSTRATION

subS2811-41110

28116SPRING, PINION RETURN

main28116-89101iJ05C,S05#..XZU402,41#,420,430200010-200206

subS2811-61040

28117RUBBER(FOR STARTER YOKE)

main28117-78060iJ05C,S05#..XZU402,41#,420,430200010-200206

TYPE A:REFER TO ILLUSTRATION

subS2811-71250

main28117-78070iS05#..XZU411,412200010-200206

TYPE B:REFER TO ILLUSTRATION

subS2811-71270

28117ASEAL, RUBBER

main28117-78080×2iJ05C,S05#..XZU402,41#,420,430200010-200206

subS2816-81370

28118PLATE(FOR STARTER YOKE)

main28118-78031iS05#..XZU411,412200010-200206

TYPE B:REFER TO ILLUSTRATION

subS2811-81240

main28118-78080iJ05C,S05#..XZU402,41#,420,430200010-200206

TYPE A:REFER TO ILLUSTRATION

subS2811-81480

28120YOKE ASSY, STARTER

main28120-78060iJ05C,S05#..XZU402,41#,420,430200010-200206

TYPE A:REFER TO ILLUSTRATION

subS2812-01801

main28120-78070iS05#..XZU411,412200010-200206

TYPE B:REFER TO ILLUSTRATION

subS2812-01810

28130FRAME ASSY, STARTER COMMUTATOR END

main28133-78060iJ05C,S05#..XZU402,41#,420,430200010-200206

TYPE A:REFER TO ILLUSTRATION

sub28133-78061

main28133-78070iS05#..XZU411,412200010-200206

TYPE B:REFER TO ILLUSTRATION

subS2813-32320

28139WIRE, LEAD, NO.1(FOR STARTER)

main28139-78070iS05#..XZU411,412200010-200206

TYPE B:REFER TO ILLUSTRATION

main28139-89104iJ05C,S05#..XZU402,41#,420,430200010-200206

TYPE A:REFER TO ILLUSTRATION

subS2817-11121

28140HOLDER ASSY, STARTER BRUSH

main28140-78060iJ05C,S05#..XZU402,41#,420,430200010-200206

TYPE A:REFER TO ILLUSTRATION

subS2814-01600

main28140-78070iS05#..XZU411,412200010-200206

TYPE B:REFER TO ILLUSTRATION

subS2814-01610

28142BRUSH, STARTER

main28142-78070iS05#..XZU411,412200010-200206

TYPE B:REFER TO ILLUSTRATION,NO.2

subS2814-21770

main28147-78070×2iS05#..XZU411,412200010-200206

TYPE B:REFER TO ILLUSTRATION,NO.3

subS2814-21750

main28148-78070iS05#..XZU411,412200010-200206

TYPE B:REFER TO ILLUSTRATION,NO.1

subS2814-21760

main28148-89101iJ05C,S05#..XZU402,41#,420,430200010-200206

TYPE A:REFER TO ILLUSTRATION,NO.1

subS2814-21530

main28148-89102iJ05C,S05#..XZU402,41#,420,430200010-200206

TYPE A:REFER TO ILLUSTRATION,NO.2

subS2814-21540

main28148-89103×2iJ05C,S05#..XZU402,41#,420,430200010-200206

TYPE A:REFER TO ILLUSTRATION,NO.3

subS2814-21550

28143SPRING, STARTER BRUSH

main28143-78060×4iJ05C,S05#..XZU402,41#,420,430200010-200206

28150SWITCH ASSY, MAGNET STARTER

main28150-78061iJ05C,S05#..XZU402,41#,420,430200010-200206

TYPE A:REFER TO ILLUSTRATION

subS2815-02244

main28150-78071iS05#..XZU411,412200010-200206

TYPE B:REFER TO ILLUSTRATION

28160ARMATURE ASSY, STARTER

main28160-78060iJ05C,S05#..XZU402,41#,420,430200010-200206

TYPE A:REFER TO ILLUSTRATION

subS2816-01690

main28160-78070iS05#..XZU411,412200010-200105

TYPE B:REFER TO ILLUSTRATION

main28160-78071iS05#..XZU411,412200105-200206

TYPE B:REFER TO ILLUSTRATION

subS2816-01641

28160ABEARING, STARTER ARMATURE

main28252-78060iJ05C,S05#..XZU402,41#,420,430200010-200206

TYPE A:REFER TO ILLUSTRATION

subS2825-21990

main28252-78070iS05#..XZU411,412200010-200206

TYPE B:REFER TO ILLUSTRATION

subS2825-21870

28172HOLDER, STARTER SPRING

main28172-89101iJ05C,S05#..XZU402,41#,420,430200010-200206

subS2826-21160

28174HOUSING, STARTER MOTOR

main28174-78060iJ05C,S05#..XZU402,41#,420,430200010-200206

TYPE A:REFER TO ILLUSTRATION

sub28174-78061

main28174-78070iS05#..XZU411,412200010-200206

TYPE B:REFER TO ILLUSTRATION

subS2811-91330

28199COVER, STARTER

main28199-78070iJ05C,S05#..XZU402,41#,420,430200010-200206

subS2817-91011

28199APROTECTOR, DUST STARTER

main28199-78060iJ05C,S05#..XZU402,41#,420,430200010-200206

subS2819-91040

28229RETAINER, STARTER IDLE GEAR

main28229-78060iJ05C,S05#..XZU402,41#,420,430200010-200206

TYPE A:REFER TO ILLUSTRATION

subS2816-81400

main28229-89101iS05#..XZU411,412200010-200206

TYPE B:REFER TO ILLUSTRATION

subS2816-81360

28254PINION, STARTER IDLE GEAR

main28250-78060iJ05C,S05#..XZU402,41#,420,430200010-200206

subS2825-11040

2811289103BOLT, HOUSING SET

main28112-89103

2813778060WASHER, FELT, STARTER

main28137-78060

2818278060STAY, STARTER COMMUTATOR END FRAME

main28182-78060

2818278080STAY, STARTER COMMUTATOR END FRAME

main28182-78080

2818289101STAY, STARTER COMMUTATOR END FRAME

main28182-89101

8270237070BRACKET SUB-ASSY, WIRING HARNESS

main82702-37070

827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E360

9003105033

main90031-05033

9017908204

main90179-08204

9017914007

main90179-14007

9165160816

main91651-60816

36 parts on this diagram · 2 diagrams in section
