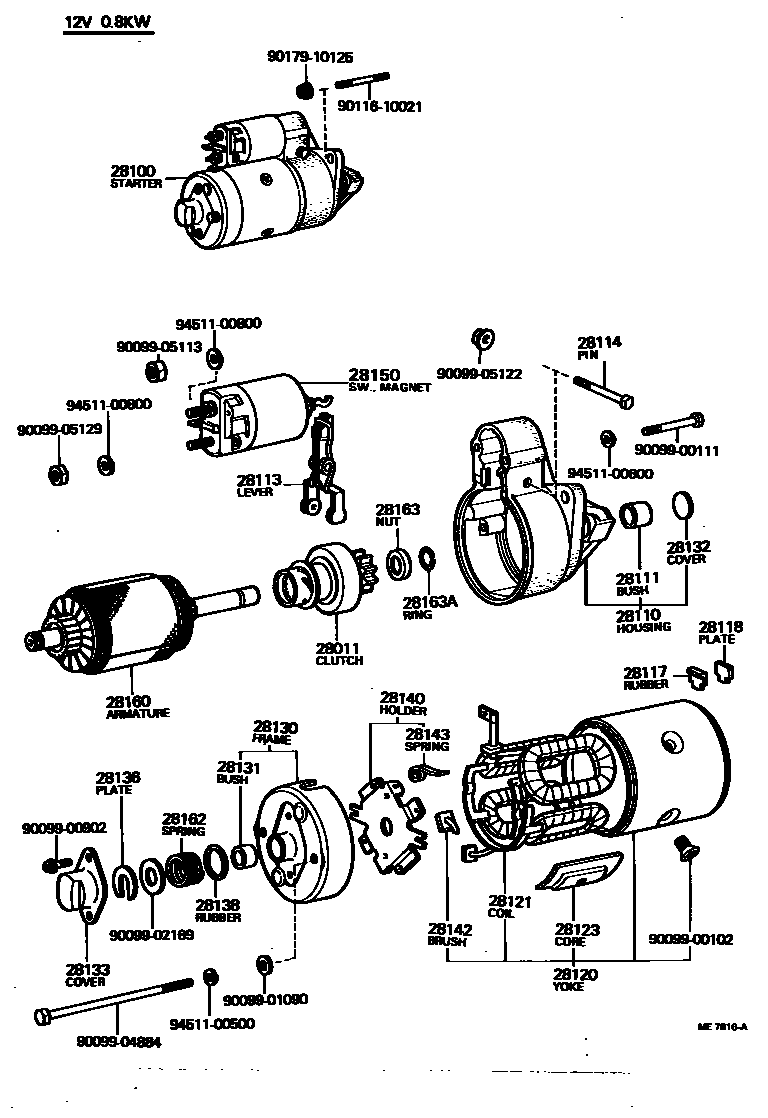

Toyota DYNA — STARTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0008 1 0009 1

28011CLUTCH SUB-ASSY, STARTER

main28011-15010i5R..RU2#,30..ARL,GEN197909-198408

12V 0.8KW

main28011-41011i5R..RU2#,30..ARL,GEN197708-197909

12V 0.8KW

main28011-41020i5R..RU2#,30..EUR,GEN197708-198408

12V 1.0KW

main28011-54010iB,H,2B,3B,2H..BU2#,3#,40,HU30,40,50198009-198411

12V 2.5KW,24V 4.5KW

main28011-77090iB,H,2J..BU2#,30,HU30,JU20197708-198003

12V 2.5KW,24V 4.5KW

main28011-78010i1W..WU40..LHD198304-198408

24V 4.5KW

sub28011-78011

28100STARTER ASSY

main28100-36070i5R..RU2#,30..ARL,GEN197708-197909

12V 0.8KW

main28100-37010i5R..RU2#,30..ARL,GEN197909-198302

12V 0.8KW,12V 0.8KW

main28100-37011i5R..RU2#,30..ARL,GEN198302-198408

12V 0.8KW,12V 0.8KW

main28100-40060i5R..RU2#,30..EUR,GEN197708-197906

12V 1.0KW

main28100-40061i5R..RU2#,30..EUR,GEN197906-198408

12V 1.0KW

sub28100-35110

main28100-46040i2J..JU20197708-197904

24V 4.5KW W/EDIC

main28100-46060i2J..JU20197708-197904

24V 4.5KW W/O EDIC

main28100-47040iH..HU30197708-198104

12V 2.5KW W/EDIC

main28100-47050iH..HU30..GEN197708-198104

12V 2.5KW W/O EDIC

main28100-47080i2H..HU40,50198204-198408

12V 2.5KW,12V 2.5KW

sub28100-47081

main28100-56030iB..BU20..ST..EUR;B..BU20,25,30..LHD..5H..WT198104-198408

24V 4.5KW,24V 4.5KW W/EDIC

main28100-56040iB,2B,3B..BU2#,3#,40..ARL,GEN,GHI197708-198411

12V 2.5KW W/EDIC

main28100-56050iB,3B..BU20,25,30,32,36..GEN,GHI197708-198411

12V 2.5KW,W/O EDIC

main28100-56060iB..BU20,30..EUR197708-198104

24V 4.5KW W/O EDIC

main28100-56120i3B..BU40..LHD198302-198408

24V 4.5KW W/EDIC

sub28100-56140

main28100-78010i1W..WU40..LHD198304-198408

24V 4.5KW

sub28100-78011

main28100-78020i1W..WU40,50198304-198408

12V 2.5KW,12V 2.5KW

28110HOUSING ASSY, STARTER DRIVE

main28110-37010i5R..RU2#,30..ARL,GEN197909-198408

12V 0.8KW

main28110-40045i5R..RU2#,30..ARL,GEN197708-197909

12V 0.8KW

main28110-40061i5R..RU2#,30..EUR,GEN197708-198408

12V 1.0KW

main28115-46030i2J..JU20197708-197904

24V 4.5KW

main28115-47030iH..HU30197708-198104

12V 2.5KW

main28115-47070i2H..HU40,50198204-198408

12V 2.5KW

main28115-56030iB,2B,3B..BU2#,3#,40197708-198411

12V 2.5KW,24V 4.5KW

main28115-78010i1W..WU40,50198304-198408

12V 2.5KW

main28115-78020i1W..WU40..LHD198304-198408

24V 4.5KW,RR

main28115-78030i1W..WU40..LHD198304-198408

24V 4.5KW,FR

28111BUSH(FOR STARTER HOUSING)

main28111-51011i5R..RU2#,30197708-198408

12V 0.8KW,1.0KW

main28111-78010i1W..WU40..LHD198304-198408

24V 4.5KW

28113LEVER, STARTER PINION DRIVE

main28113-15011i5R..RU2#,30..ARL,GEN197909-198408

12V 0.8KW

main28113-41011i5R..RU2#,30197708-197909

12V 0.8KW,1.0KW

main28113-78010i1W..WU40..LHD198304-198408

24V 4.5KW

28114PIN, STARTER DRIVE LEVER SET

main28114-41011i5R..RU2#,30197708-197909

12V 0.8KW,1.0KW

28117RUBBER(FOR STARTER YOKE)

main28117-41013i5R..RU2#,30..ARL,GEN197708-197909

12V 0.8KW

main28117-41020i5R..RU2#,30..EUR,GEN197708-198408

12V 1.0KW

28118PLATE(FOR STARTER YOKE)

main28118-41013i5R..RU2#,30..ARL,GEN197708-197909

12V 0.8KW

main28118-77090iB,H,2B,3B,2H,2J..BU2#,3#,40,HU30,40,50,JU20197708-198411

12V 2.5KW,24V 4.5KW

main28118-78010i1W..WU40..LHD198304-198408

24V 4.5KW

28120YOKE ASSY, STARTER

main28120-15010i5R..RU2#,30..ARL,GEN197909-198408

12V 0.8KW

main28120-36040i5R..RU2#,30..ARL,GEN197708-197909

12V 0.8KW

main28120-40061i5R..RU2#,30..EUR,GEN197708-197906

12V 1.0KW

main28120-40062i5R..RU2#,30..EUR,GEN197906-198408

12V 1.0KW

main28120-47040iB,H,2B,3B,2H,1W..BU2#,3#,40,HU30,40,50,WU40,50..ARL,GEN,GHI197708-198411

12V 2.5KW

main28120-77090iB,2J..BU20,30,JU20..EUR197708-198104

24V 4.5KW

28121COIL, STARTER FIELD

main28121-34070i5R..RU2#,30..EUR,GEN197906-198004

12V 1.0KW

main28121-36040i5R..RU2#,30..ARL,GEN197708-197909

12V 0.8KW

main28121-41020i5R..RU2#,30..EUR,GEN197708-197906

12V 1.0KW

main28121-42020i5R..RU2#,30..EUR,GEN198004-198304

12V 1.0KW

main28121-78010i1W..WU40..LHD198304-198408

24V 4.5KW

28123CORE, STARTER POLE

main28123-40012i5R..RU2#,30..ARL,GEN197708-197909

12V 0.8KW

main28123-41020i5R..RU2#,30..EUR,GEN197708-198408

12V 1.0KW

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-21011i5R..RU2#,30..ARL,GEN197708-197909

12V 0.8KW

main28130-37010i5R..RU2#,30..ARL,GEN197909-198408

12V 0.8KW

main28130-40060i5R..RU2#,30..EUR,GEN197708-198408

12V 1.0KW

main28130-46030i2J..JU20197708-197904

24V 4.5KW

sub28130-46040

sub28199-46080

sub90099-04207

main28130-47030iH..HU30197708-198104

12V 2.5KW

sub28130-47060

sub28199-46080

sub90099-04207

main28130-56030iB,2B,3B..BU2#,3#,40197708-198411

12V 2.5KW,24V 4.5KW

sub28130-56060

sub28199-46080

sub90099-04207

main28130-78010i1W..WU40,50198304-198408

12V 2.5KW

main28130-78020i1W..WU40..LHD198304-198408

24V 4.5KW

28131BUSH, COMMUTATOR END FRAME

main28131-20010i5R..RU2#,30197708-197909

STD,12V 0.8KW,1.0KW

main90099-10039i5R..RU2#,30197708-197909

U/S 0.3,12V 0.8KW,1.0KW

main90099-10040i5R..RU2#,30197708-197909

U/S 0.5,12V 0.8KW,1.0KW

main90099-10134i5R..RU2#,30..ARL,GEN197909-198408

12V 0.8KW

28132COVER, STARTER BEARING(FOR DRIVE HOUSING)

main28166-41011i5R..RU2#,30197708-197909

12V 0.8KW,1.0KW

28133COVER, BEARING(FOR END FRAME)

main28132-15010i5R..RU2#,30..ARL,GEN197909-198408

12V 0.8KW

sub28132-15011

main28132-40010i5R..RU2#,30..EUR,GEN197708-198408

12V 1.0KW

main28132-41011i5R..RU2#,30..ARL,GEN197708-197909

12V 0.8KW

28136PLATE, STARTER LOCK

main28136-15010i5R..RU2#,30..ARL,GEN197909-198408

12V 0.8KW

main28136-40010i5R..RU2#,30..EUR,GEN197708-198408

12V 1.0KW

main28136-41011i5R..RU2#,30..ARL,GEN197708-197909

12V 0.8KW

28138RUBBER(FOR STARTER BEARING COVER)

main28138-15010i5R..RU2#,30..ARL,GEN197909-198408

12V 0.8KW

main28138-40010i5R..RU2#,30..EUR,GEN197708-198408

12V 1.0KW

sub28138-26030

main28138-41011i5R..RU2#,30..ARL,GEN197708-197909

12V 0.8KW

28140HOLDER ASSY, STARTER BRUSH

main28140-15010i5R..RU2#,30..ARL,GEN197909-198408

12V 0.8KW

main28140-41012i5R..RU2#,30..ARL,GEN197708-197909

12V 0.8KW

sub28140-41013

main28140-41020i5R..RU2#,30..EUR,GEN197708-198408

12V 1.0KW

main28140-77090i1W..WU40,50198304-198408

12V 2.5KW

main28140-78010i1W..WU40..LHD198304-198408

24V 4.5KW

28142BRUSH, STARTER

main28142-10011×4i5R..RU2#,30..EUR,GEN197708-197906

12V 1.0KW

main28142-21010×4i5R..RU2#,30..ARL,GEN197708-197909

12V 0.8KW

main28142-25011×4i5R..RU2#,30..EUR,GEN197906-198408

12V 1.0KW

main28142-78010×4i1W..WU40..LHD198304-198408

24V 4.5KW

28143SPRING, STARTER BRUSH

main28143-40010×4i5R..RU2#,30197708-197909

12V 0.8KW,1.0KW

sub28143-40040

main28143-78010×4i1W..WU40..LHD198304-198408

24V 4.5KW

28150SWITCH ASSY, MAGNET STARTER

main28150-15011i5R..RU2#,30..ARL,GEN197909-198302

12V 0.8KW

main28150-22011i5R..RU2#,30..ARL,GEN197708-197906

12V 0.8KW

main28150-33020i5R..RU2#,30..EUR,GEN197708-197906

12V 1.0KW

main28150-34070i5R..RU2#,30197906-197909

12V 0.8KW,1.0KW

main28150-37010i5R..RU2#,30..ARL,GEN198302-198408

12V 0.8KW

sub28150-37011

main28150-46040i2J..JU20197708-197904

24V 4.5KW

main28150-47040iH..HU30197708-198104

12V 2.5KW

main28150-47070i2H..HU40,50198204-198408

12V 2.5KW

main28150-56040iB,2B,3B..BU2#,3#,40..ARL,GEN,GHI197708-198411

12V 2.5KW

main28150-77090iB..BU20..ST..EUR;B..BU20,25,30..LHD..5H..WT198104-198408

24V 4.5KW

main28150-78010i1W..WU40,50198304-198408

12V 2.5KW

main28150-78020i1W..WU40..LHD198304-198408

24V 4.5KW

sub28150-78021

28160ARMATURE ASSY, STARTER

main28160-15010i5R..RU2#,30..ARL,GEN197909-198408

12V 0.8KW

main28160-40014i5R..RU2#,30..ARL,GEN197708-197909

12V 0.8KW

main28160-41020i5R..RU2#,30..EUR,GEN197708-198408

12V 1.0KW

main28160-47040iB,H,2B,3B,2H,1W..BU2#,3#,40,HU30,40,50,WU40,50..ARL,GEN,GHI197708-198411

12V 2.5KW

sub28160-54140

main28160-77090i3B..BU40..LHD198302-198408

24V 4.5KW

main28160-78010i1W..WU40..LHD198304-198408

24V 4.5KW

28162SPRING, STARTER BRAKE

main28162-15010i5R..RU2#,30..ARL,GEN197909-198408

12V 0.8KW

main28162-41011i5R..RU2#,30..ARL,GEN197708-197909

12V 0.8KW

main28162-41022i5R..RU2#,30..EUR,GEN197708-198408

12V 1.0KW

28163NUT OR COLLAR, PINION STOP, STARTER

main28163-40011i5R..RU2#,30197708-198408

12V 0.8KW,1.0KW

main28163-78010i1W..WU40..LHD198304-198408

24V 4.5KW

28163ARING, SNAP(FOR STARTER PINION STOP NUT)

main90099-07047i5R..RU2#,30197708-198408

12V 0.8KW,1.0KW

9009900102

main90099-00102

9009900111

main90099-00111

9009900902

main90099-00902

9009901090

main90099-01090

9009902169

main90099-02169

9009904884

main90099-04884

9009905113

main90099-05113

9009905122

main90099-05122

9009905129

main90099-05129

9011610021

main90116-10021

9017910125

main90179-10125

9451100500

main94511-00500

9451100600

main94511-00600

9451100800

main94511-00800

39 parts on this diagram · 8 diagrams in section
