Toyota DYNA — STARTER

0001 112V 4.5KW 0002 124V 4.5KW 0003 124V 5.0KW 0004 124V 4.0KW

28011CLUTCH SUB-ASSY, STARTER

main28011-54010iW04D..WU600..DCRTJ;W04D..WU600..ST..GEN..IV3201107-202005

main28011-78090iW04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH201107-202005

sub28011-78091

main28011-78111iN04C..XZU600,650..GCC201605-202005

sub28011-78112

main28011-78240iN04C..XZU600..GEN201911-202011

main28011-78241iN04C..XZU600202011

28100STARTER ASSY

main28100-78090iW04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH201107-202005

24V 4.5KW

main28100-78114iN04C..XZU600,650201605-201609

24V 5.0KW

main28100-78115iN04C..XZU600,650201610-201711

24V 5.0KW

main28100-78160iW04D..WU600..DCRTJ;W04D..WU600..ST..GEN..IV3201107-202005

24V 4.5KW

main28100-78240iN04C..XZU600..GEN201911

24V 4.0KW

main28100-78370iN04C..XZU600,650..GCC201711-202005

24V 5.0KW

28120YOKE ASSY, STARTER

main28120-56221iW04D..WU600..DCRTJ;W04D..WU600..ST..GEN..IV3201107-202005

main28120-78090iW04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH201107-202005

main28120-78111iN04C..XZU600,650..GCC201605-202005

main28120-78240iN04C..XZU600..GEN201911-202112

main28120-78241iN04C..XZU600202112

28140HOLDER ASSY, STARTER BRUSH

main28140-77090iW04D..WU600..DCRTJ;W04D..WU600..ST..GEN..IV3201107-202005

main28140-78110iN04C..XZU600,650..GCC201605-202005

main28140-78240iN04C..XZU600..GEN201911

mainS281401600iW04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH201107-202005

28150SWITCH ASSY, MAGNET STARTER

main28150-78090iW04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH201107-202005

main28150-78100iW04D..WU600..DCRTJ;W04D..WU600..ST..GEN..IV3201107-202005

main28150-78240iN04C..XZU600..GEN201911-202112

main28150-78241iN04C..XZU600202112

28160ARMATURE ASSY, STARTER

main28160-77090iW04D..WU600..DCRTJ;W04D..WU600..ST..GEN..IV3201107-202005

main28160-78111iN04C..XZU600,650..GCC201605-202005

sub28160-78112

main28160-78240iN04C..XZU600..GEN201911

mainS281601690iW04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH201107-202005

28170COVER ASSY, STARTER

mainS125411082iW04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH201107-202005

9003105033

main90031-05033

9017908204

main90179-08204

9017914007

main90179-14007

9165340612

main91653-40612

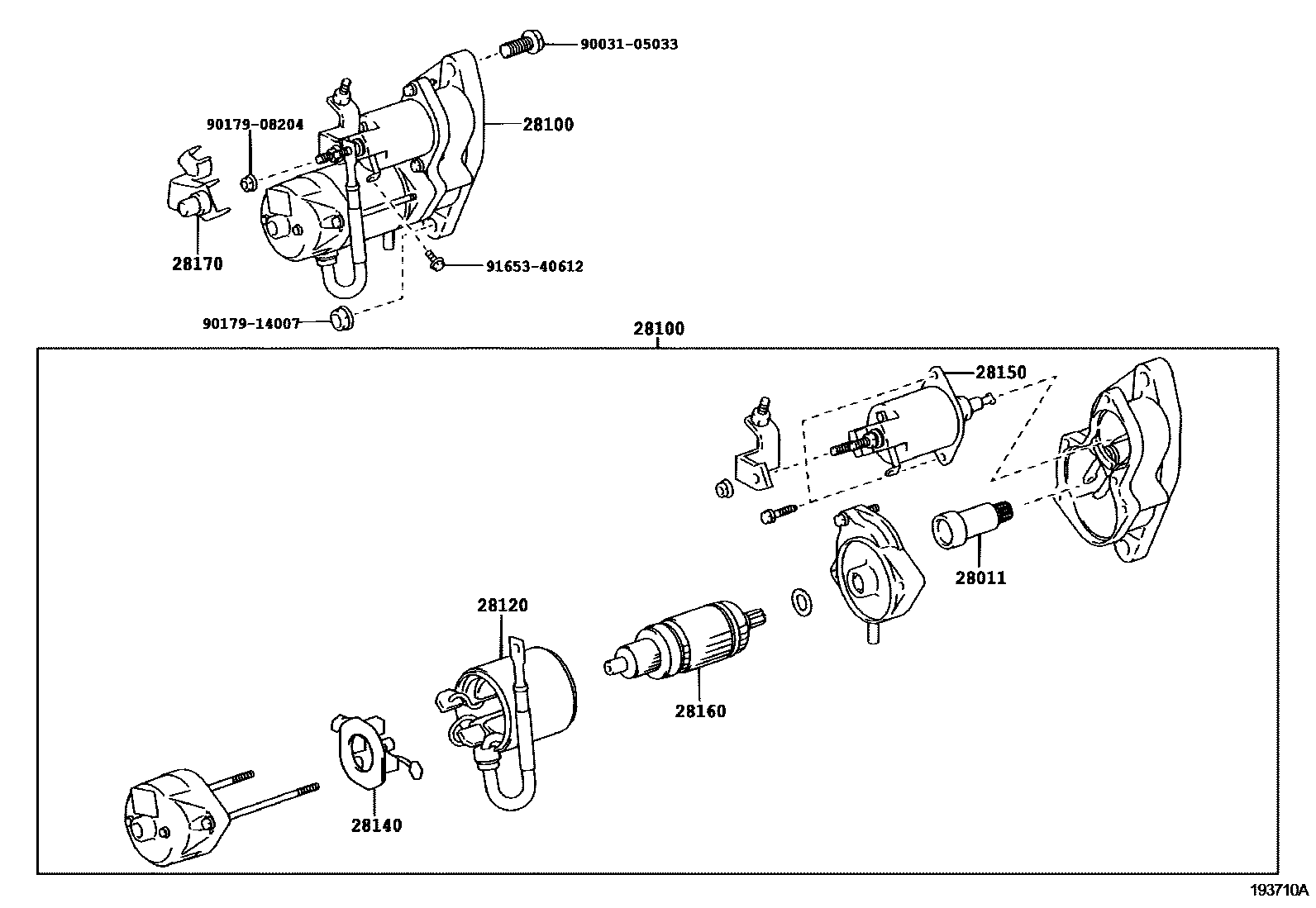

11 parts on this diagram · 4 diagrams in section
