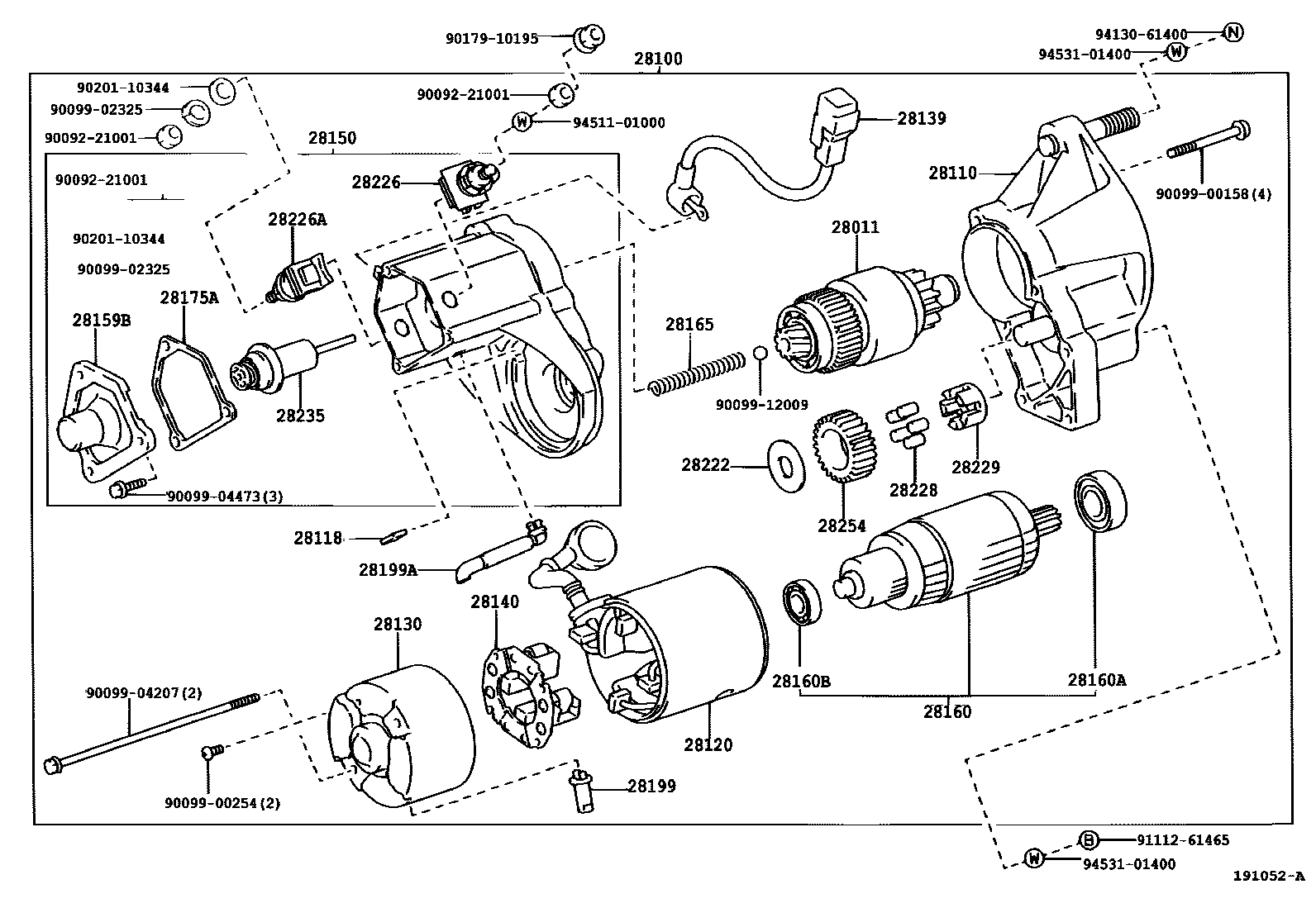

28011CLUTCH SUB-ASSY, STARTER
main28011-54010i15BFTE..XZU300,320,330,340199907-200212 TYPE A:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
28100STARTER ASSY
main28100-56332i15BFTE..XZU300,320,330,340199907-200212 24V 4.5KW
24V 4.5KW,TYPE A:REFER TO ILLUSTRATION,LABEL=153
24V 4.5KW,TYPE A:REFER TO ILLUSTRATION,LABEL=153
24V 4.5KW,TYPE B:REFER TO ILLUSTRATION,LABEL=156
24V 4.5KW,TYPE B:REFER TO ILLUSTRATION,LABEL=156
28110HOUSING ASSY, STARTER DRIVE
main28110-56331i15BFTE..XZU300,320,330,340199907-200212 TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
28118PLATE(FOR STARTER YOKE)
main28118-77090i15BFTE..XZU300,320,330,340199907-200212 TYPE B:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION
28120YOKE ASSY, STARTER
main28120-56330i15BFTE..XZU300,320,330,340199907-200212 TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
28130FRAME ASSY, STARTER COMMUTATOR END
main28130-56260i15BFTE..XZU300,320,330,340199907-200212 TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
28139WIRE, LEAD, NO.1(FOR STARTER)
main28139-56310i15BFTE..XZU300,320,330,340199907-200212 TYPE B:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION
28140HOLDER ASSY, STARTER BRUSH
main28140-77090i15BFTE..XZU300,320,330,340199907-200212 TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
28150SWITCH ASSY, MAGNET STARTER
main28150-56331i15BFTE..XZU300,320,330,340199907-200212 TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
28159BCOVER, MAGNET SWITCH
main28159-56310i15BFTE..XZU300,320,330,340199907-200212 28160ARMATURE ASSY, STARTER
main28160-56140i15BFTE..XZU300,320,330,340199907-200212 TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
28160ABEARING, STARTER ARMATURE
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
main90099-54120i15BFTE..XZU300,320,330,340199907-200212 28160BBEARING, STARTER ARMATURE, NO.2
main90099-10131i15BFTE..XZU300,320,330,340199907-200212 28165SPRING, STARTER MAGNET SWITCH RETURN
main28165-77090i15BFTE..XZU300,320,330,340199907-200212 28175AGASKET, MAGNET SWITCH COVER
main28175-56310i15BFTE..XZU300,320,330,340199907-200212 28199COVER, STARTER
main28199-46080i15BFTE..XZU300,320,330,340199907-200212 28199APROTECTOR, DUST STARTER
main28199-58020i15BFTE..XZU300,320,330,340199907-200212 28222WASHER, STARTER IDLE GEAR CLUTCH
main28222-77090i15BFTE..XZU300,320,330,340199907-200212 28226STARTER KIT, BATTERY TERMINAL
main28226-17030i15BFTE..XZU300,320,330,340199907-200212 28226ASTARTER KIT, MOTOR TERMINAL
main28226-54220i15BFTE..XZU300,320,330,340199907-200212 28228ROLLER, STARTER IDLE GEAR CLUTCH
main28228-56080×5i15BFTE..XZU300,320,330,340199907-200212 28229RETAINER, STARTER IDLE GEAR
main28229-56080i15BFTE..XZU300,320,330,340199907-200212 TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
28235PLUNGER, MAGNET SWITCH
main28235-17030i15BFTE..XZU300,320,330,340199907-200212 28254PINION, STARTER IDLE GEAR
main28254-77090i15BFTE..XZU300,320,330,340199907-200212
