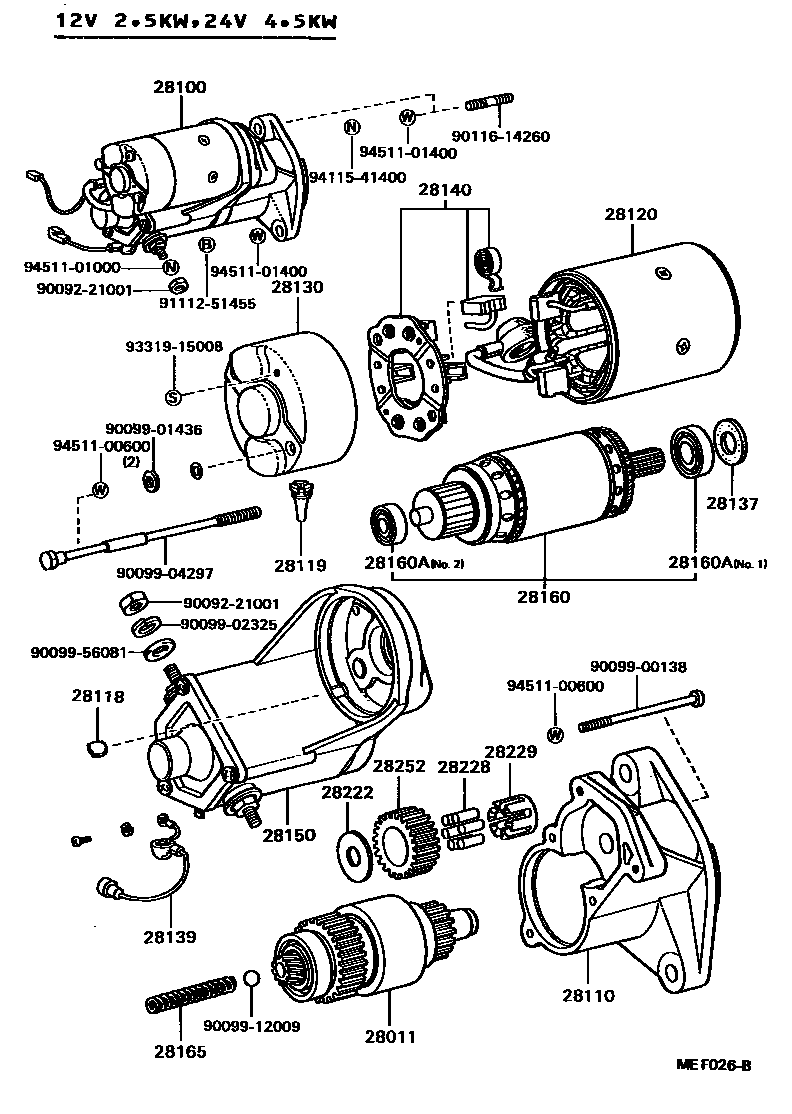

Toyota DYNA — STARTER

28011CLUTCH SUB-ASSY, STARTER

main28011-54010iB,11B,13B..BU6#,7#,8#198409-198708

12V 2.5KW,24V 4.5KW

28100STARTER ASSY

main28100-56150iB,13B..BU75,85..EUR198409-198409

24V4.5KW,CHINA OR ALGERIA SPEC

main28100-56151iB,13B..BU75,85..EUR198409-198708

24V 4.5KW,24V 4.5KW

main28100-56160iB,13B..BU6#,7#,8#..ARL,GEN,GHD198409-198409

12V 2.5KW

main28100-56161i11B..BU65..CBU;B,11B,13B..BU60,61,62,63,7#,80,81,85,86..ARL,GEN,SA198409-198708

12V 2.5KW,12V 2.5KW

sub28100-56231

28110HOUSING ASSY, STARTER DRIVE

main28110-56150iB,11B,13B..BU6#,7#,8#198409-198708

12V 2.5KW,24V 4.5KW

sub28110-56151

28118PLATE(FOR STARTER YOKE)

main28118-77090iB,11B,13B..BU6#,7#,8#198409-198708

12V 2.5KW,24V 4.5KW

28119COVER, STARTER END FRAME

main28119-77090iB,11B,13B..BU6#,7#,8#198409-198702

12V 2.5KW,24V 4.5KW

main28199-77090iB,11B,13B..BU6#,7#,8#198702-198708

12V 2.5KW,24V 4.5KW

28120YOKE ASSY, STARTER

main28120-47040iB,13B..BU6#,7#,80,85..ARL,GEN198409-198409

12V 2.5KW

main28120-56071iB,13B..BU75,85..EUR198409-198708

24V 4.5KW

main28120-56081i11B..BU65..CBU;B,11B,13B..BU60,61,62,63,7#,80,81,85,86..ARL,GEN,SA198409-198708

12V 2.5KW

main28120-77090iB,13B..BU75,85..EUR198409-198409

24V 4.5KW

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-56080iB,11B,13B..BU6#,7#,8#198409-198708

12V 2.5KW,24V 4.5KW

sub28130-56260

sub28199-46080

sub90099-04207

28137WASHER, FELT, STARTER

main90099-02205iB,11B,13B..BU6#,7#,8#198409-198708

12V 2.5KW,24V 4.5KW

28139WIRE, LEAD, NO.1(FOR STARTER)

main28139-56150iB,13B..BU75,85..EUR198409-198708

24V 4.5KW

main28139-56160i11B..BU65..CBU;B,11B,13B..BU60,61,62,63,7#,80,81,85,86..ARL,GEN,SA198409-198708

12V 2.5KW

28140HOLDER ASSY, STARTER BRUSH

main28140-77090iB,11B,13B..BU6#,7#,8#198409-198708

12V 2.5KW,24V 4.5KW

28150SWITCH ASSY, MAGNET STARTER

main28150-56150iB,13B..BU75,85..EUR198409-198708

24V 4.5KW

sub28150-56170

main28150-56160i11B..BU65..CBU;B,11B,13B..BU60,61,62,63,7#,80,81,85,86..ARL,GEN,SA198409-198708

12V 2.5KW

28160ARMATURE ASSY, STARTER

main28160-47040i11B..BU65..CBU;B,11B,13B..BU60,61,62,63,7#,80,81,85,86..ARL,GEN,SA198409-198708

12V 2.5KW

sub28160-54140

main28160-77090iB,13B..BU75,85..EUR198409-198708

24V 4.5KW

28160ABEARING, STARTER ARMATURE

main90099-10107iB,11B,13B..BU6#,7#,8#198409-198708

12V 2.5KW,24V 4.5KW,NO.2

main90099-10119iB,11B,13B..BU6#,7#,8#198409-198708

12V 2.5KW,24V 4.5KW,NO.1

28165SPRING, STARTER MAGNET SWITCH RETURN

main28165-77090iB,11B,13B..BU6#,7#,8#198409-198708

12V 2.5KW,24V 4.5KW

28222WASHER, STARTER IDLE GEAR CLUTCH

main28222-77090iB,11B,13B..BU6#,7#,8#198409-198708

12V 2.5KW,24V 4.5KW

28228ROLLER, STARTER IDLE GEAR CLUTCH

main28228-56080×5iB,11B,13B..BU6#,7#,8#198409-198708

12V 2.5KW,24V 4.5KW

28229RETAINER, STARTER IDLE GEAR

main28229-56080iB,11B,13B..BU6#,7#,8#198409-198708

12V 2.5KW,24V 4.5KW

28252GEAR, STARTER IDLE

main28254-77090iB,11B,13B..BU6#,7#,8#198409-198708

12V 2.5KW,24V 4.5KW

9009221001

main90092-21001

9009900138

main90099-00138

9009901436

main90099-01436

9009902325

main90099-02325

9009904297

main90099-04297

9009912009

main90099-12009

9009956081

main90099-56081

9011614260

main90116-14260

9111251455

main91112-51455

9331915008

main93319-15008

9411541400

main94115-41400

9451100600

main94511-00600

9451101000

main94511-01000

9451101400

main94511-01400

32 parts on this diagram · 1 diagram in section
