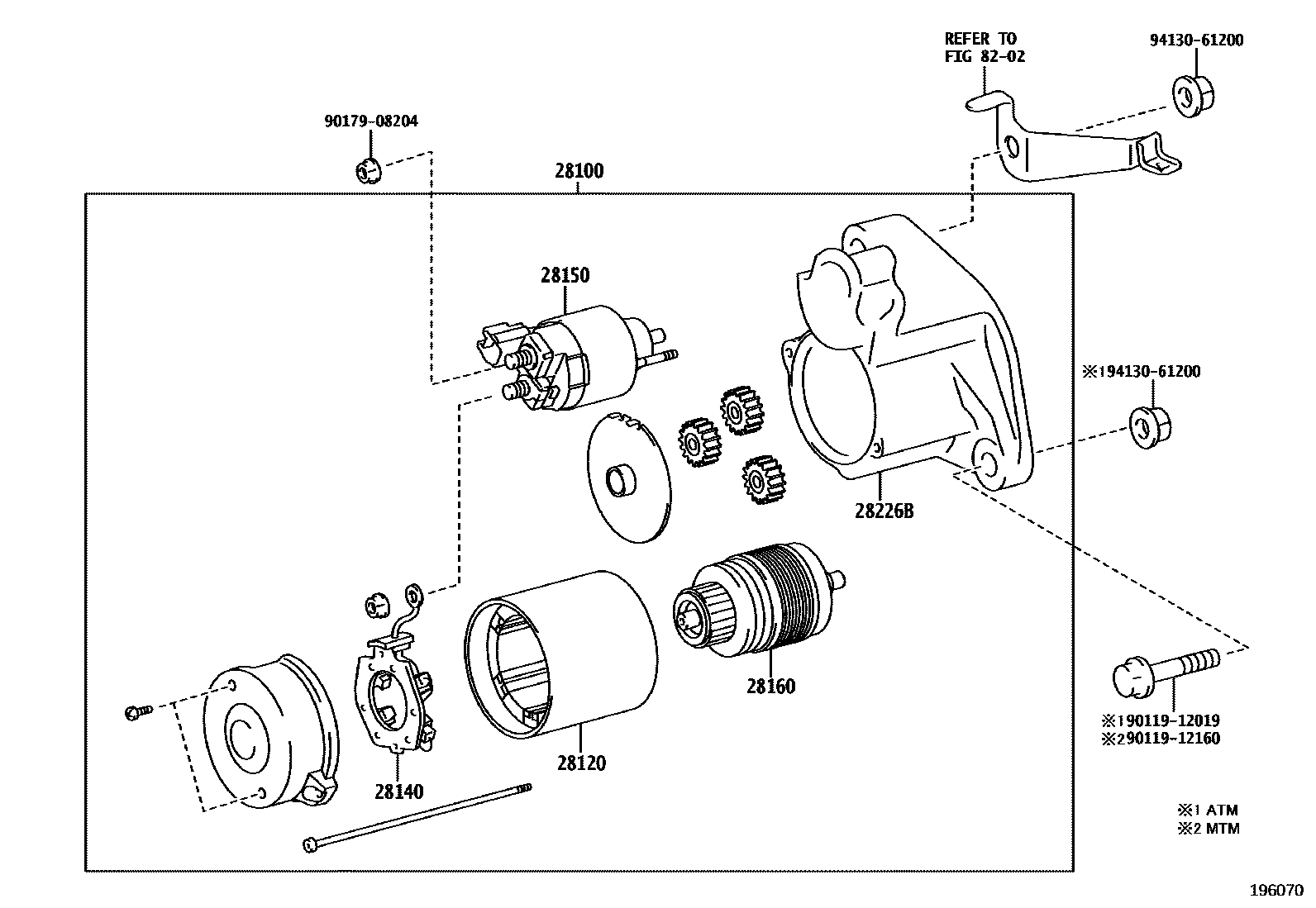

Toyota DYNA — STARTER

0001 112V 2.0KW 0002 112V 2.2KW

28100STARTER ASSY

main28100-11210i1GDFTV..GDY231..CBU202108-202305

12V 2.0KW

main28100-54451i5L..LY230202202-202503

12V 2.2KW

28120YOKE ASSY, STARTER

main28120-0L180i1GDFTV..GDY231..CBU202108-202305

main28120-64040i5L..LY230202202-202503

28140HOLDER ASSY, STARTER BRUSH

main28140-0L180i1GDFTV..GDY231..CBU202108-202305

main28140-64040i5L..LY230202202-202503

28150SWITCH ASSY, MAGNET STARTER

main28150-40090i1GDFTV..GDY231..CBU202108-202305

main28150-54330i5L..LY230202202-202503

28160ARMATURE ASSY, STARTER

main28160-33150i1GDFTV..GDY231..CBU202108-202305

main28160-64041i5L..LY230202202-202503

28226BSTARTER KIT, REPAIR SERVICE

main28226-0L190i1GDFTV..GDY231..CBU202108-202305

8202

9011912019

main90119-12019

9011912160

main90119-12160

9017908204

main90179-08204

9413061200

main94130-61200

11 parts on this diagram · 2 diagrams in section
