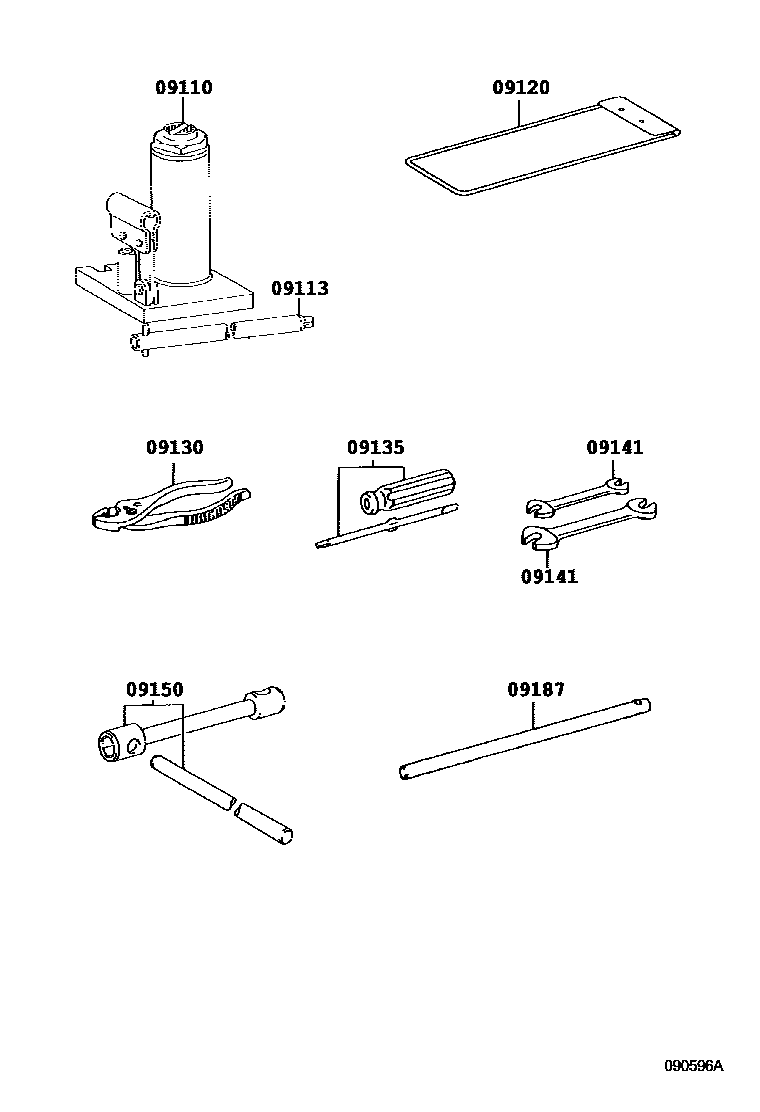

Toyota DYNA — STANDARD TOOL

09110JACK ASSY

main09111-37282i201107-201212

main09111-37283i201212-202005

09113HANDLE, JACK

main09113-0W070i201107-202005

FRAME REAR OVER HANG CUT SPEC

main09113-0W070i201911

main09113-0W090i201107-202005

09120BAG, TOOL

main09120-37031i201107-202005

09130PLIERS

main99913-11500i201107-202005

09135DRIVER, SCREW

main99915-10700i201107-202005

09141SPANNER

main99914-11012i201107-202005

10 X 12

main99914-11417i201107-202005

14 X 17

09150WRENCH, HUB NUT BOX

main09150-37030i201107-202005

09187HANDLE, SPARE WHEEL CARRIER

main09187-37010i201107-202005

8 parts on this diagram · 1 diagram in section

STANDARD TOOL for Toyota DYNA

This section contains 8 genuine Toyota parts for the STANDARD TOOL system of the Toyota DYNA. Key components include: JACK ASSY, HANDLE, JACK, BAG, TOOL, PLIERS, DRIVER, SCREW.
