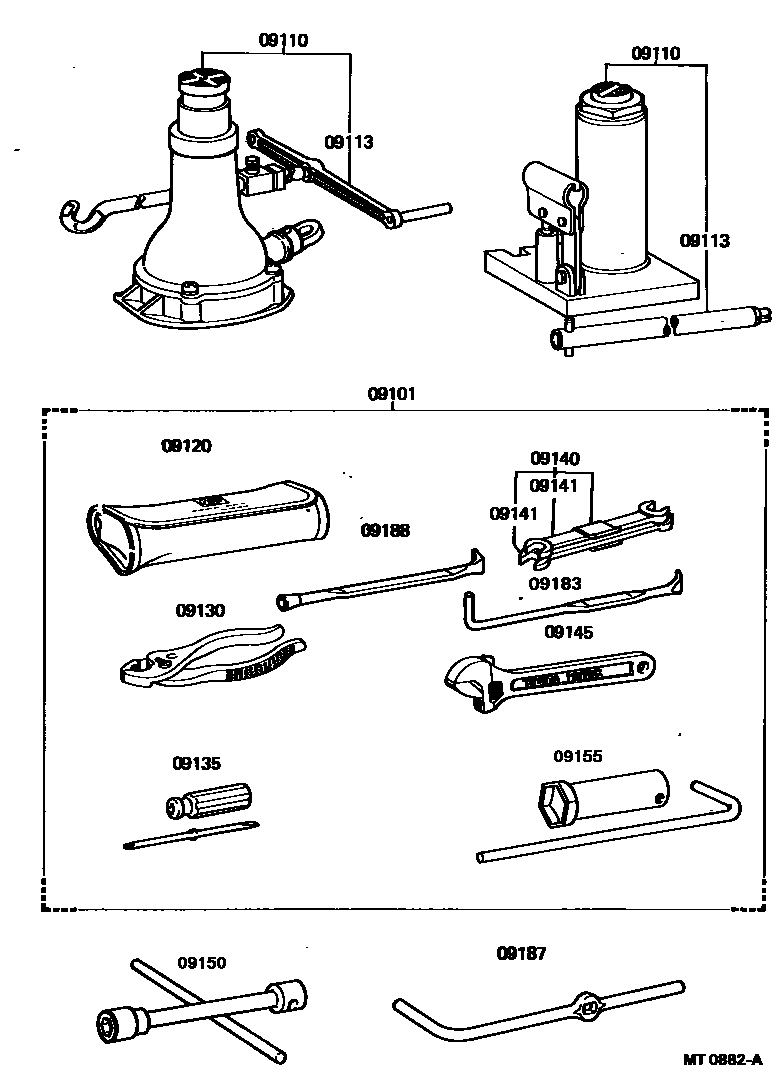

Toyota DYNA — STANDARD TOOL

09101TOOL SET, STANDARD W/O JACK

main09102-25062iRU20..ST198205-198408

main09102-25064iBU20..ST198205-198411

main09102-25065iBU20,30..T2198302-198408

main09102-36040iRU2#,30197708-197904

main09102-36050iBU2#,30,HU30,JU20197708-197904

main09102-36150iRU20..ST198010-198205

main09102-36160iBU20..ST197904-198205

main09102-36170iBU2#,30,HU30..WT197904-198010

main09102-36200iRU2#,30..WT198010-198205

main09102-36210iBU2#,3#,40,HU30,40,50..WT198010-198205

main09102-36250iBU20,30..T3..WT;BU23,25,31,32,36,40,HU40,50,WU40,50198205-198411

main09102-36252iRU2#,30..WT198205-198408

09110JACK ASSY

main09110-36030iBU20,JU20,RU20..TW1,VSG,VSP197708-197903

main09110-36031iRU20..BUS;RU20..TW1,VSG,VSP;BU20,JU20..HRF,SRF197903-198408

main09110-36041iBU20,JU20,RU20..T1,T3197708-198411

sub09111-36042

sub09113-37020

main09110-36051iBU30..T3;BU23,25,31,32,HU30,RU25,30197708-198401

main09110-36080iBU20,30..T2198302-198408

main09110-36090iBU30..T3;BU23,25,31,32,RU25,30198401-198411

sub09111-36110

main09110-36131iBU40,HU40,50,WU40,50198204-198408

sub09111-36131

sub09113-37050

09113HANDLE, JACK

main09113-25040iRU20..BUS;RU20..TW1,VSG,VSP;BU20,JU20..HRF,SRF197903-198408

main09113-36020iBU20,JU20,RU20..TW1,VSG,VSP197708-197903

main09113-36060iBU20,JU20,RU20..T1,T3197708-198411

sub09113-37020

main09113-36070iBU30..T3;BU23,25,31,32,HU30,RU25,30197708-198401

main09113-36090iBU20,30..T2198302-198408

main09113-36100iBU30..T3;BU23,25,31,32,RU25,30198401-198411

main09113-36130iBU40,HU40,50,WU40,50198204-198408

sub09113-37050

09120BAG, TOOL

main09120-36011iBU2#,30,HU30,JU20,RU2#,30197708-198010

main09120-36020iRU20..ST;BU20..BUS;BU20..T3..ST;BU20,30..T1,T2,VSG,VSP198203-198411

main09120-36030iBU20,30..T3..WT;BU23,25,31,32,36,40,HU30,40,50,RU2#,30,WU40,50..WT198010-198411

09130PLIERS

main09130-00010iBU2#,3#,40,HU30,40,50,RU2#,30197904-198205

sub09130-00012

main99913-11500iBU2#,3#,40,HU40,50,RU2#,30,WU40,50198205-198411

main99913-22000iBU2#,30,HU30,JU20,RU2#,30197708-197904

sub09029-20200

09135DRIVER, SCREW

main99915-10700iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

09140SPANNER SET

main09140-22010iBU2#,30,HU30,JU20,RU2#,30197708-197904

sub09140-00070

main09140-27010iBU2#,3#,40,HU30,40,50,RU2#,30,WU40,50197904-198411

09141SPANNER

main09141-00030iBU2#,30,HU30,JU20,RU2#,30197708-197904

10X12

sub09141-00120

main09141-00050iBU2#,30,HU30,JU20,RU2#,30197708-197904

14X17

sub09141-00130

main99914-11012iBU2#,3#,40,HU30,40,50,RU2#,30,WU40,50197904-198411

10 X 12,10X12

main99914-11417iBU2#,3#,40,HU30,40,50,RU2#,30,WU40,50197904-198411

14 X 17,14X17

09145WRENCH, MONKEY

main99911-10200iBU2#,3#,40,HU30,40,50,RU2#,30,WU40,50197904-198411

sub99911-11200

main99911-10250iBU2#,30,HU30,JU20,RU2#,30197708-197904

sub99911-20250

09150WRENCH, HUB NUT BOX

main09150-25020iBU2#,30,HU30,RU2#,30197904-198008

main09150-36011iBU2#,30,HU30,JU20,RU2#,30197708-197904

main09150-55010iBU40,HU40,50,WU40,50198204-198408

main09150-55020iBU20,30..T3..WT;BU23,25,31,32,36,HU30,RU2#,30..WT198008-198411

09155WRENCH, SPARK PLUG

main09155-36010iRU2#,30197708-197904

sub09155-44010

main09155-44030iRU2#,30197904-198408

sub09155-44020

09183WRENCH, WHEEL CAP

main09183-00020iBU20..ST197904-198411

sub09183-00010

09187HANDLE, SPARE WHEEL CARRIER

main09187-36060iBU20,3#,HU30,JU20,RU20,30..T1,T3197708-198205

main09187-36070iBU40,HU40,50198204-198205

09188WRENCH, VALVE CAP

main09188-00030iBU20,30..T2198302-198408

sub09052-1C200

14 parts on this diagram · 1 diagram in section
