Toyota DYNA — STANDARD TOOL

09110JACK ASSY

main09110-37070iXZU300,320,330,340199907-200206

sub75298-37020

sub75299-37040

sub94271-00800

main09110-37150iXZU307200112-200206

AUSTRALIA SPEC

sub09111-37170

main09110-37160iXZU302200112-200206

AUSTRALIA SPEC

sub09111-37170

main09110-37220iXZU300200206-200212

sub09111-37200

sub09113-37080

main09110-37230iXZU320,330,340200206-200212

sub09111-37200

main09110-37270iXZU342200112-200206

AUSTRALIA SPEC

sub09110-37320

09113HANDLE, JACK

main09113-37030iXZU300,320,330,340199907-200206

main09113-37060iXZU300200206-200212

main09113-37070iXZU320,330,340200206-200212

sub09113-0W030

09120BAG, TOOL

main09120-30020iXZU300,320,330,340199907-200003

main09120-37020iXZU300,320,330,340200003-200206

main09120-37030iXZU300,320,330,340200206-200212

09130PLIERS

main99913-11500iXZU302,307,342200010-200206

09135DRIVER, SCREW

main99915-10700iXZU302,307,342200010-200206

09141SPANNER

main99914-10810iXZU302,307,342200010-200206

8 X 10

main99914-11214iXZU302,307,342200010-200206

12 X 14

09145WRENCH, MONKEY

main99911-11200iXZU302,307,342200010-200206

09150WRENCH, HUB NUT BOX

main09150-36030iXZU300,320,330,340199907-200206

main09150-37030iXZU300,320,330,340200206-200212

09187HANDLE, SPARE WHEEL CARRIER

main09187-36070iXZU300,320,330,340199907-200206

main09187-37010iXZU300,320,330,340200206-200212

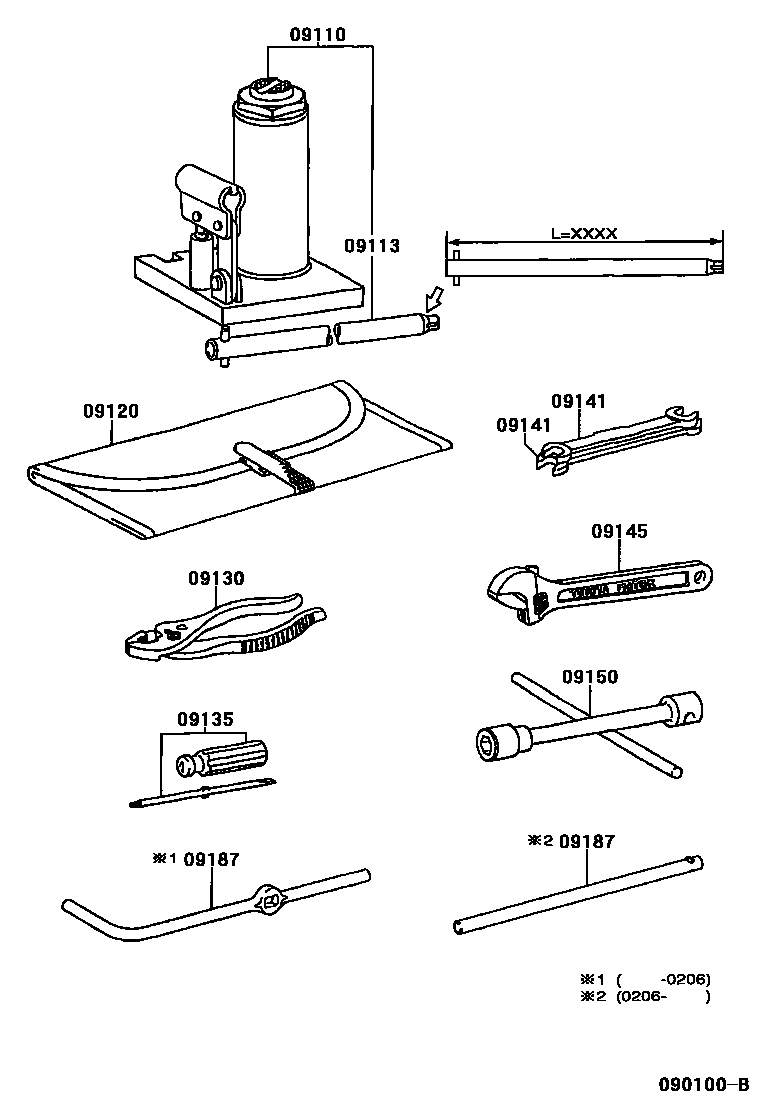

9 parts on this diagram · 1 diagram in section
