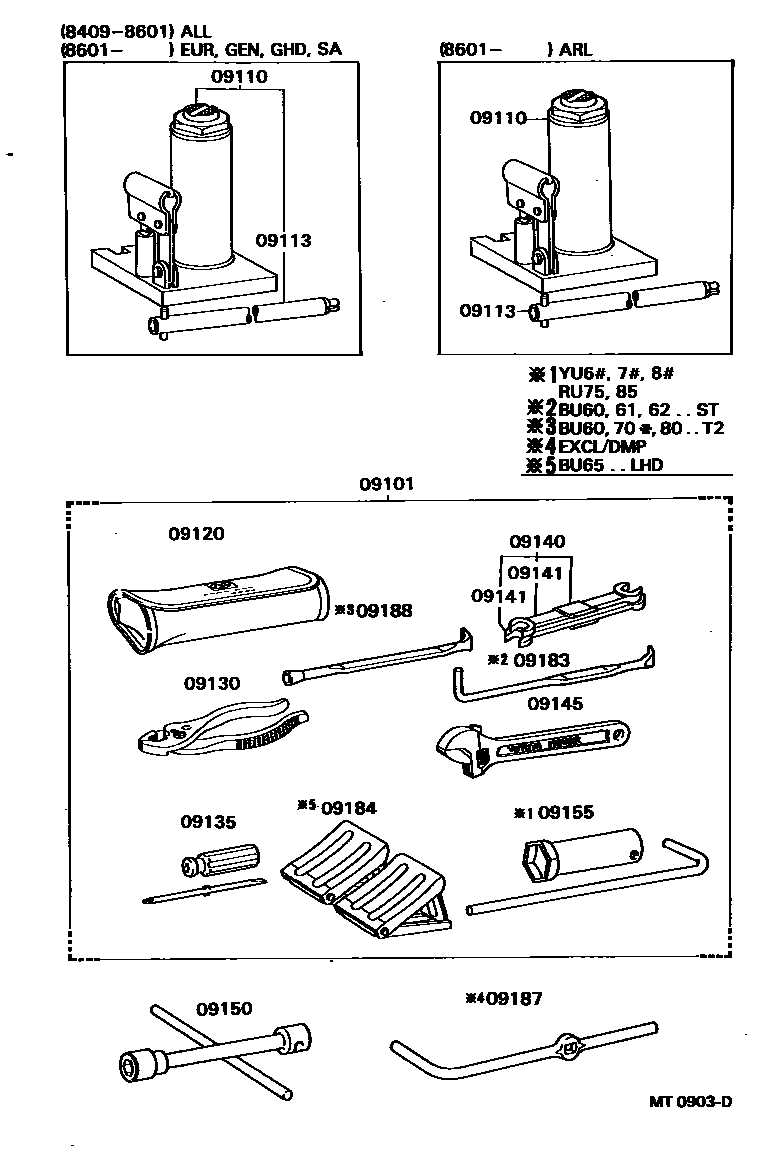

Toyota DYNA — STANDARD TOOL

09101TOOL SET, STANDARD W/O JACK

main09102-36320iBU65..IV3198508-198708

main09102-36330iBU70198409-198708

main09102-36340iBU60,61,62..ST198409-198708

main09102-36350iBU65..CBU198508-198708

09110JACK ASSY

main09110-36041iBU60,61..TS..WT198512-198601

sub09111-36042

sub09113-37020

main09110-36090iBU80..T3;BU62,63,75,76,81,82..5F198601-198708

sub09111-36110

main09110-36160iBU60,61,62..ST..GEN198601-198708

sub09111-36160

sub09113-37020

main09110-36190iBU62..ARL198601-198604

main09110-36191iBU62..ARL198604-198708

main09110-36200iBU60..ARL198601-198604

main09110-36201iBU60..ARL198604-198708

main09110-36210iBU65,85..ARL198601-198604

main09110-36211iBU65,85..ARL198604-198708

09113HANDLE, JACK

main09113-36060iBU80..T2;BU60,61,70198409-198708

sub09113-37020

main09113-36100iBU85,86198409-198708

09120BAG, TOOL

main09120-36060iBU60,61,62..ST198409-198708

main09120-36070iBU70198409-198708

09130PLIERS

main99913-11500iBU6#,7#,8#198409-198708

09135DRIVER, SCREW

main99915-10700iBU6#,7#,8#198409-198708

09140SPANNER SET

main09140-27010iBU6#,7#,8#198409-198708

09141SPANNER

main99914-11012iBU6#,7#,8#198409-198708

10 X 12,10X12

main99914-11417iBU6#,7#,8#198409-198708

14 X 17,14X17

09145WRENCH, MONKEY

main99911-10200iBU6#,7#,8#198409-198605

main99911-11200iBU6#,7#,8#198605-198708

09150WRENCH, HUB NUT BOX

main09150-25020iBU60,80..T2;BU60,61,62,70..ST198409-198708

main09150-36030iBU60,80..T3..WT;BU61,62,63,65,81,82..WT198608-198708

sub09150-37030

main09150-55020iBU60,80..T3..WT;BU61,62,63,65,75,76,81,82..WT198409-198608

09155WRENCH, SPARK PLUG

09183WRENCH, WHEEL CAP

main09183-00020iBU60,61,62..ST198409-198708

sub09183-00010

09184STOPPER, WHEEL

main09184-00031×2iBU65..IV3198509-198708

sub09184-60010

09187HANDLE, SPARE WHEEL CARRIER

main09187-36070iBU60,61,62,7#,8#198409-198708

09188WRENCH, VALVE CAP

main09188-00030iBU70;BU60,80..T2198409-198708

sub09052-1C200

15 parts on this diagram · 1 diagram in section
