Toyota DYNA — SPEEDOMETER DRIVEN GEAR (MTM)

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33482-39235supersedes 33482-39225i201107-201509

N=23,MARK 23:6; N=23,MARK 23:6,REAR DIFFERENTIAL-12 INCH, FINAL GEAR RATIO =6.167

mainSU00200171i201107-202005

N=15

mainSU00200172supersedes SU00200359i201306-201512

N=14

main33482-39205i201505-202005

N=20,MARK 20:6,ABS-WITHOUT; N=20,MARK 20:6,REAR DIFFERENTIAL-12 INCH, FINAL GEAR RATIO =4.875&ABS-WITHOUT&TIRE& DISK WHEEL-195/85R16 114 RIB; N=20,MARK 20:6,REAR DIFFERENTIAL-12 INCH, FINAL GEAR RATIO =5.375&ABS-WITHOUT&TIRE& DISK WHEEL-750R16-10 F:RIB R:RIB-LUG; N=20,MARK 20:6,REAR DIFFERENTIAL-12 INCH, FINAL GEAR RATIO =5.375&ABS-WITHOUT&TIRE& DISK WHEEL-750R16-10 RIB; N=20,MARK 20:6,REAR DIFFERENTIAL-12 INCH, FINAL GEAR RATIO =5.375&ABS-WITHOUT&TIRE& DISK WHEEL-750R16-12 F:RIB R:RIB-LUG; N=20,MARK 20:6,REAR DIFFERENTIAL-12 INCH, FINAL GEAR RATIO =5.375&ABS-WITHOUT&TIRE& DISK WHEEL-750R16-12 LUG; N=20,MARK 20:6,REAR DIFFERENTIAL-12 INCH, FINAL GEAR RATIO =5.375&ABS-WITHOUT&TIRE& DISK WHEEL-750R16-12 RIB

main33482-39215supersedes 33482-39205i201108-201505

N=21,MARK 21:6,REAR DIFFERENTIAL-12 INCH, FINAL GEAR RATIO =5.375; N=21,MARK 21:6,REAR DIFFERENTIAL-12 INCH, FINAL GEAR RATIO =5.571&TIRE & DISK WHEEL-750R16-10 F:RIB R:RIB-LUG; N=21,MARK 21:6,REAR DIFFERENTIAL-12 INCH, FINAL GEAR RATIO =5.571&TIRE & DISK WHEEL-750R16-10 RIB; N=21,MARK 21:6,REAR DIFFERENTIAL-12 INCH, FINAL GEAR RATIO =5.571&TIRE & DISK WHEEL-750R16-12 F:RIB R:RIB-LUG; N=21,MARK 21:6,REAR DIFFERENTIAL-12 INCH, FINAL GEAR RATIO =5.571&TIRE & DISK WHEEL-750R16-12 LUG; N=21,MARK 21:6,REAR DIFFERENTIAL-12 INCH, FINAL GEAR RATIO =5.571&TIRE & DISK WHEEL-750R16-12 RIB; N=21,MARK 21:6,TIRE & DISK WHEEL-195/85R16 114 RIB

main33482-39225i201505-202005

N=22,MARK 22:6,REAR DIFFERENTIAL-12 INCH, FINAL GEAR RATIO =5.375&ABS-WITHOUT&TIRE& DISK WHEEL-195/85R16 114 RIB; N=22,MARK 22:6,REAR DIFFERENTIAL-12 INCH, FINAL GEAR RATIO =5.571&ABS-WITHOUT&TIRE& DISK WHEEL-215/75R17.5 126 RIB

main33482-39245i201107-202005

N=24,MARK 24:6,REAR DIFFERENTIAL-12 INCH, FINAL GEAR RATIO =6.500

main33482-39525supersedes 33482-39205i201108-201505

N=22,MARK 22:7,REAR DIFFERENTIAL-12 INCH, FINAL GEAR RATIO =4.875; N=22,MARK 22:7,TIRE & DISK WHEEL-750R16-10 F:RIB R:RIB-LUG; N=22,MARK 22:7,TIRE & DISK WHEEL-750R16-10 RIB; N=22,MARK 22:7,TIRE & DISK WHEEL-750R16-12 F:RIB R:RIB-LUG; N=22,MARK 22:7,TIRE & DISK WHEEL-750R16-12 LUG; N=22,MARK 22:7,TIRE & DISK WHEEL-750R16-12 RIB

mainSU00200170i201107-202005

N=16,REAR DIFFERENTIAL-12 INCH, FINAL GEAR RATIO =6.167&TIRE & DISK WHEEL-215/75R17.5 126 RIB; N=16,REAR DIFFERENTIAL-12 INCH, FINAL GEAR RATIO =6.500; N=16,REAR DIFFERENTIAL-13 INCH, FINAL GEAR RATIO =6.428

mainSU00200359i201211-201505

N=13; N=13,REAR DIFFERENTIAL-12 INCH, FINAL GEAR RATIO =4.875&TIRE & DISK WHEEL-215/75R17.5 126 RIB

mainSU00200928i201505-202005

N=12,REAR DIFFERENTIAL-12 INCH, FINAL GEAR RATIO =4.875&ABS-WITHOUT

mainSU00201015i201107-202005

N=17,REAR DIFFERENTIAL-12 INCH, FINAL GEAR RATIO =6.500&TIRE & DISK WHEEL-215/75R17.5 126 RIB; N=17,REAR DIFFERENTIAL-13 INCH, FINAL GEAR RATIO =6.428&TIRE & DISK WHEEL-215/75R17.5 126 RIB

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-36020i201107-201505

mainSU00200174i201107-201512

mainSU00200173i201107-202005

REAR DIFFERENTIAL-12 INCH, FINAL GEAR RATIO =6.167&TIRE & DISK WHEEL-215/75R17.5 126 RIB; REAR DIFFERENTIAL-12 INCH, FINAL GEAR RATIO =6.500; REAR DIFFERENTIAL-12 INCH, FINAL GEAR RATIO =6.500&TIRE & DISK WHEEL-215/75R17.5 126 RIB; REAR DIFFERENTIAL-13 INCH, FINAL GEAR RATIO =6.428; REAR DIFFERENTIAL-13 INCH, FINAL GEAR RATIO =6.428&TIRE & DISK WHEEL-215/75R17.5 126 RIB

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90301-18018i201107-201505

mainSU00200177i201107-202005

33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90310-09001i201107-201505

mainSU00200175i201107-201512

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005i201107-201505

33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-30020i201107-201505

main33485-37010i201107-202005

9161160814

main91611-60814

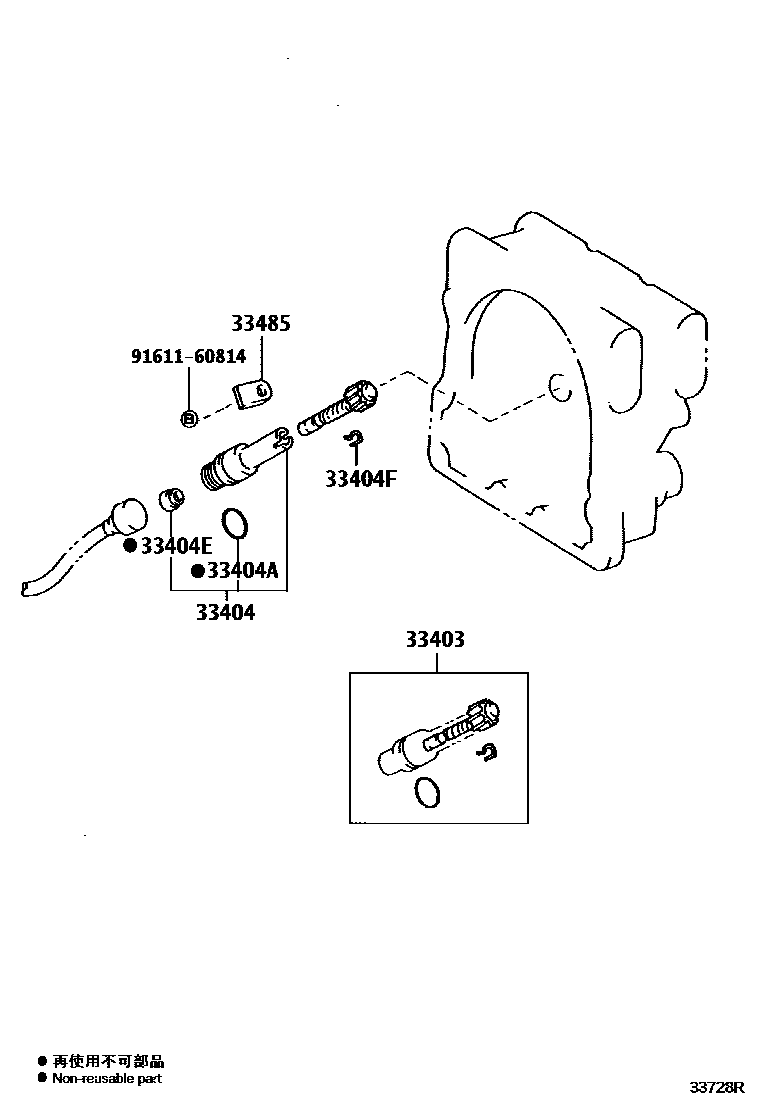

7 parts on this diagram · 4 diagrams in section

SPEEDOMETER DRIVEN GEAR (MTM) for Toyota DYNA

This section contains 9 genuine Toyota parts for the SPEEDOMETER DRIVEN GEAR (MTM) system of the Toyota DYNA. Key components include: GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM), SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM), RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE), SEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE), CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE).
