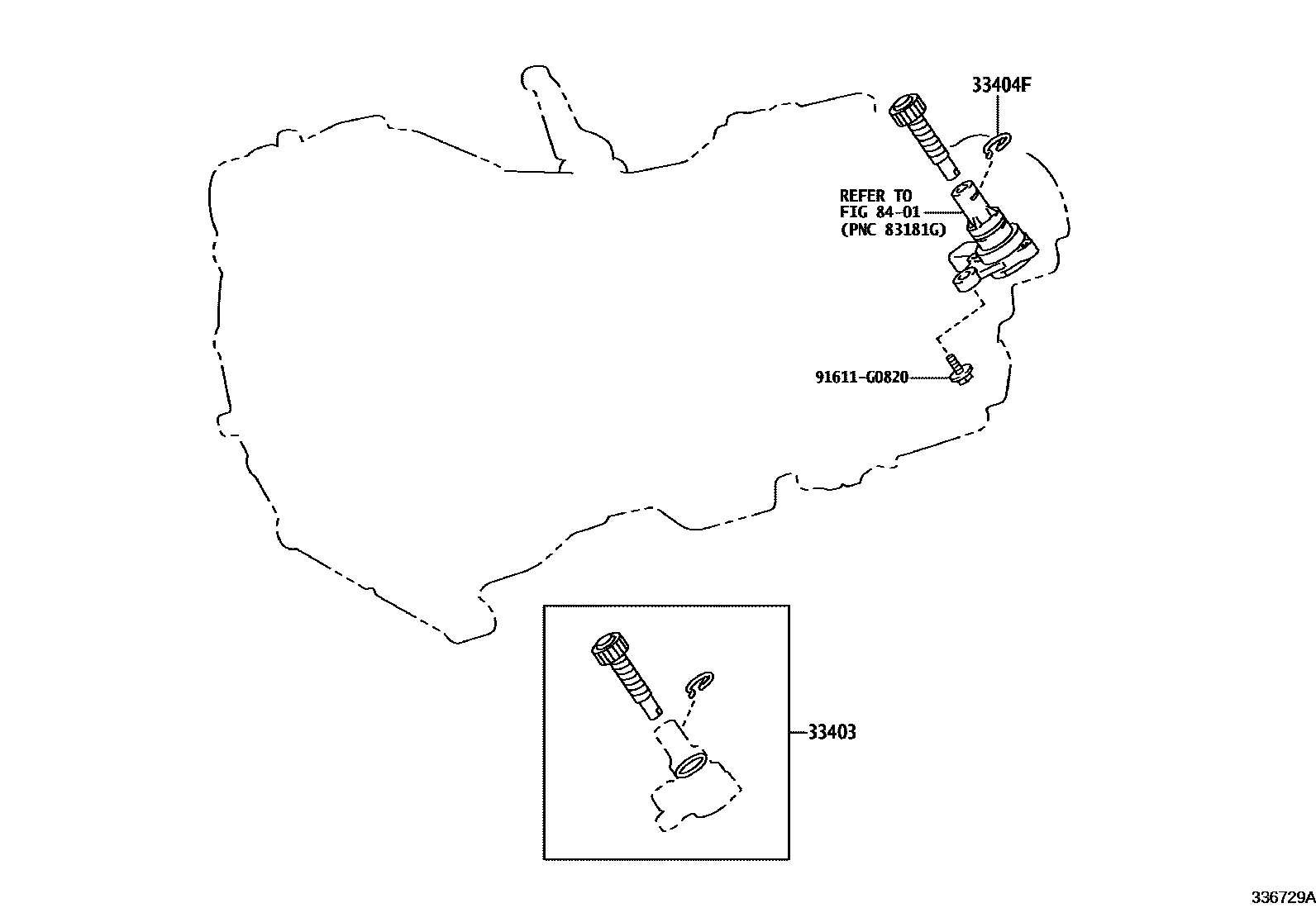

Toyota DYNA — SPEEDOMETER DRIVEN GEAR (MTM)

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-39435i202202-202503

N=33,MARK 33:9

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005i202202-202503

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

91611G0820

main91611-G0820

4 parts on this diagram · 1 diagram in section

SPEEDOMETER DRIVEN GEAR (MTM) for Toyota DYNA

This section contains 4 genuine Toyota parts for the SPEEDOMETER DRIVEN GEAR (MTM) system of the Toyota DYNA. Key components include: GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM), CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE), SWITCH & RELAY & COMPUTER.
