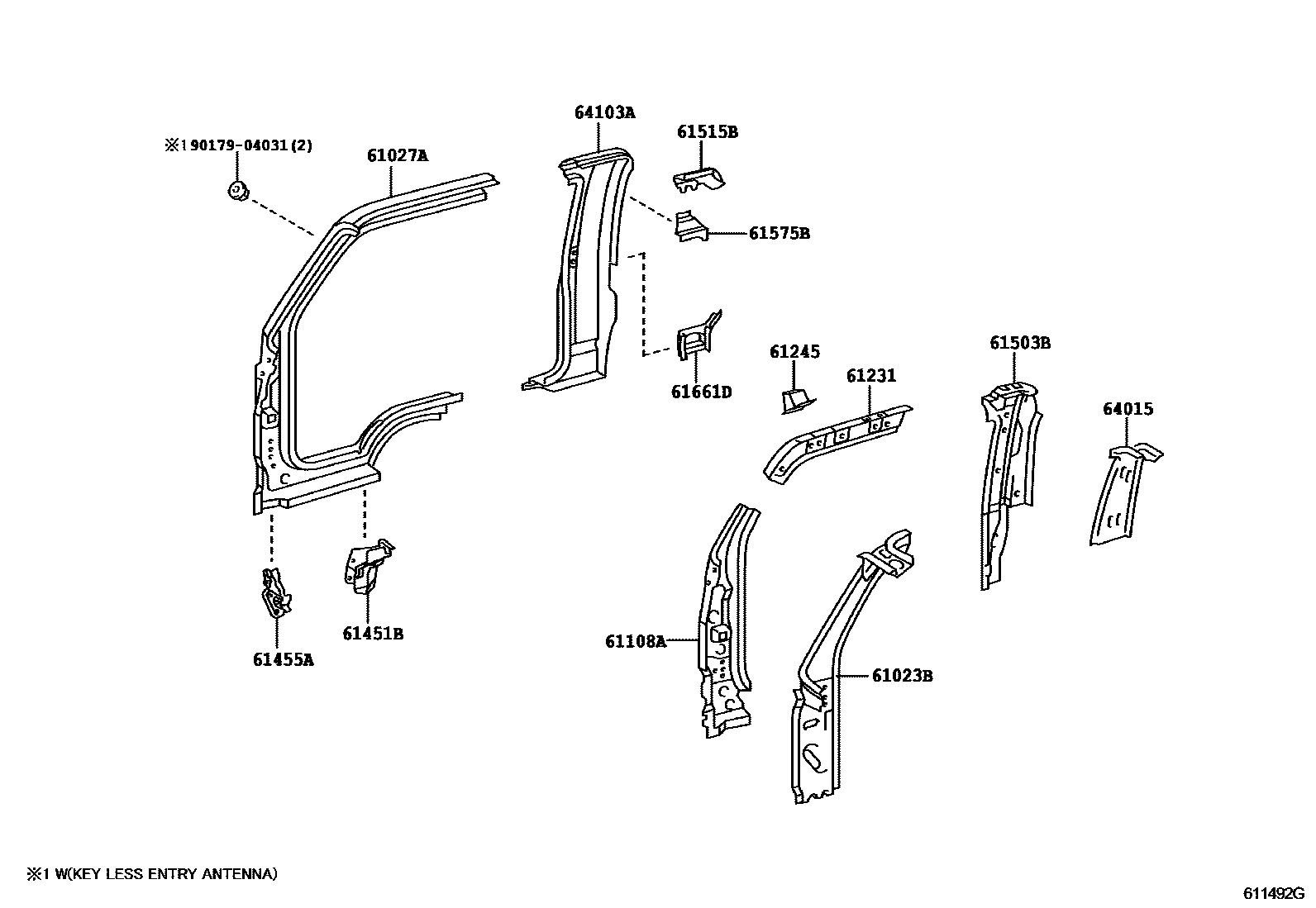

Toyota DYNA — SIDE MEMBER
61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH
61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61231RAIL, ROOF SIDE, INNER RH
61245REINFORCEMENT, ROOF SIDE RAIL, OUTER RH
61451BPLATE, STEP, LOWER RH
61455ARETAINER, FRONT STEP, RH
61503BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH
61515BEXTENSION, QUARTER LOCK PILLAR, RH
main61515-37010iWU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,419,423,425,427,429,433,435,439..DCRTJ,DCRTK,DSL200110-201208
61575BPLATE, CAB REAR PILLAR, UPPER RH
61661DEXTENSION, QUARTER PANEL TO UPPER BACK, RH
64015PANEL SUB-ASSY, BACK CORNER, INNER RH
W(QUARTER INSIDE TRIM BOARD)
64103APANEL SUB-ASSY, BACK CORNER, OUTER RH
9017904031
main90179-04031
14 parts on this diagram · 3 diagrams in section
SIDE MEMBER for Toyota DYNA
This section contains 34 genuine Toyota parts for the SIDE MEMBER system of the Toyota DYNA. Key components include: PILLAR SUB-ASSY, FRONT BODY, INNER RH, PILLAR SUB-ASSY, FRONT BODY, INNER LH, PILLAR SUB-ASSY, FRONT BODY, OUTER RH, PILLAR SUB-ASSY, FRONT BODY, OUTER LH, REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH.
