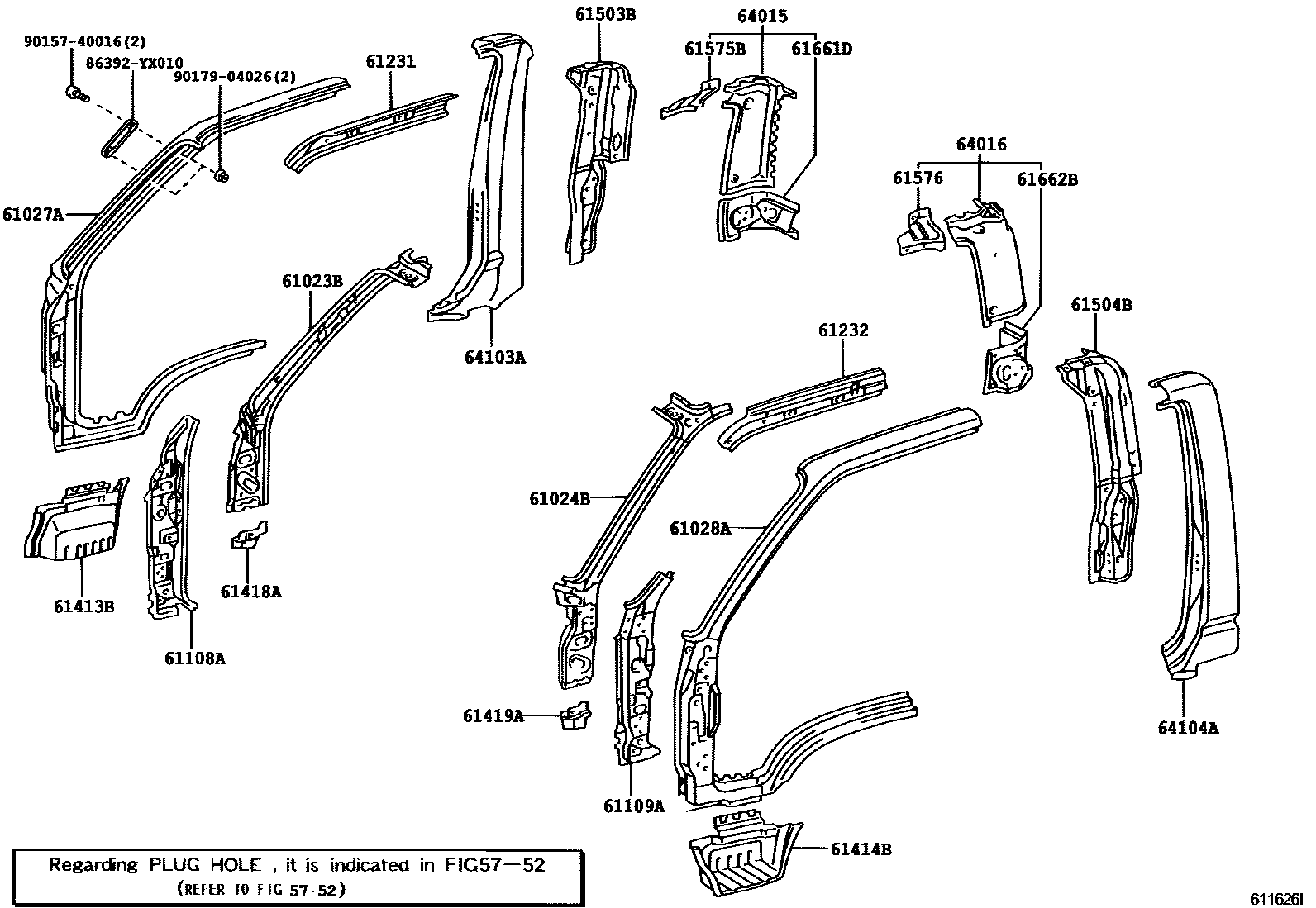

Toyota DYNA — SIDE MEMBER

0001 1 0003 1

5752

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-0W010iWU302,342,352..DCRTP,DCRTR200912

main61023-37040iXZU320200212-200610

main61023-37050iXZU307,337,347200610-200901

main61023-37090iWU302,342..IDN200612-200911

61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH

main61024-0W010iXZU349..6F;XZU309..IV3202203

main61024-37090iXZU320200212-200610

main61024-37100iWU300,340..SA200610-200812

main61024-37140iWU302,342..IDN200612-200911

61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH

main61131-0W010iXZU349..5F;XZU309,359..IV8202203-202310

main61131-37071iBU300,340200212-200312

main61131-37072iWU340..RHD..CBU200610-201106

sub61131-37073

main61131-37081iXZU320200212-200312

main61131-37082iXZU327200610-200901

sub61131-37083

main61131-37091iBU303,343,WU300,340,XZU300,330,340..LHD200212-200410

main61131-37092iBU303,343,WU300,340,XZU300,330,340..LHD200411-200610

sub61131-37093

main61131-37130iWU302,342..IDN200612-200911

61028APILLAR SUB-ASSY, FRONT BODY, OUTER LH

main61132-0W010iXZU349..5F;XZU309,359..IV8202203-202310

main61132-37041iXZU320200212-200408

main61132-37042iXZU320200408-200610

sub61132-37043

main61132-37051iBU303,343,WU300,340,XZU300,330,340..LHD200212-200410

main61132-37052iXZU307,337,347200610-200901

sub61132-37053

main61132-37071iBU300,340200212-200312

main61132-37072iWU340..RHD..CBU200610-201106

sub61132-37073

main61132-37120iWU302,342..IDN200612-200911

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-0W010iXZU349..6F;XZU309..IV3202203

main61108-37031iBU300,340200212-200312

main61108-37050iWU302,342..(DCRTH,DCRTJ)..IDN200612-201005

61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH

main61109-0W010iXZU349..6F;XZU309..IV3202203

main61109-37011iXZU307,327,337,347200610-200901

main61109-37040iBU303,343,WU300,340,XZU342..IDN200209-200612

61231RAIL, ROOF SIDE, INNER RH

main61231-37050iXZU327200610-200901

main61231-37060iXZU307,337,347200610-200901

main61231-37070iWU302,342..(DCRTH,DCRTJ)..IDN200612-201005

61232RAIL, ROOF SIDE, INNER LH

main61232-37050iXZU320200212-200610

main61232-37060iWU300,340..SA200212-200802

main61232-37070iWU302,342..(DCRTH,DCRTJ)..IDN200612-201005

main61232-37071iXZU349..6F;XZU309..IV3202203

61413BPANEL, FRONT STEP, RH

main61413-37060iBU303,343,WU300,340,XZU342..IDN200209-200612

61414BPANEL, FRONT STEP, LH

main61414-37020iBU303,343,WU300,340,XZU342..IDN200209-200612

61418AREINFORCEMENT, ROCKER PANEL, RH

main61418-0W010iBU303,343,WU300,340,XZU342..IDN200209-200612

61419AREINFORCEMENT, ROCKER PANEL, LH

main61419-0W010iBU303,343,WU300,340,XZU342..IDN200209-200612

61503BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH

main61503-0W010iXZU349..6F;XZU309..IV3202203

main61503-37020iXZU327200610-200901

main61503-37040iWU300,340..SA200212-200802

61504BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH

main61504-0W010iXZU349..6F;XZU309..IV3202203

main61504-37010iXZU327200610-200901

main61504-37020iXZU307,337,347200610-200901

61575BPLATE, CAB REAR PILLAR, UPPER RH

main61575-0W010iXZU349..6F;XZU309..IV3202203

(L)

main61575-37010iWU300,340..SA200209-200802

61576PLATE, CAB REAR PILLAR, UPPER LH

main61576-0W010iXZU349..6F;XZU309..IV3202203

(L)

main61576-37010iWU302,342,352..DCRTP,DCRTR200912-201912

(J)

61661DEXTENSION, QUARTER PANEL TO UPPER BACK, RH

main61661-0W010iWU302,342..(DCRTH,DCRTJ)..IDN200904-201005

main61661-37010iWU300,340..SA200610-200812

61662BEXTENSION, QUARTER PANEL TO UPPER BACK, LH

main61662-0W010iXZU349..5F;XZU309,359..IV8202203-202310

main61662-37010iWU30#,34#..GCC,GEN200610-201106

64015PANEL SUB-ASSY, BACK CORNER, INNER RH

main61531-37010iXZU307,327,337,347200610-200901

W(TRIM)

sub61531-37011

main61531-37040iBU303,343,WU300,340,XZU305,345..ARL,GCC,GEN200212-200610

sub61531-37041

main61531-37900iWU302,342,352..DCRTP,DCRTR200912

64016PANEL SUB-ASSY, BACK CORNER, INNER LH

main61532-37010iWU300,340..SA200610-200812

sub61532-37011

main61532-37021iBU300,340200212-200312

W(TRIM)

sub61532-37022

main61532-37050iWU300,340..GCC200212-200408

main61532-37900iXZU349..6F;XZU309..IV3202203

64103APANEL SUB-ASSY, BACK CORNER, OUTER RH

main61611-0W010iWU302,342,352..DCRTP,DCRTR200912

main61611-37140iXZU320200212-200312

main61611-37141iXZU327200610-200901

sub61611-37142

main61611-37150iBU300,340200212-200312

main61611-37151iXZU307,337,347200610-200901

sub61611-37152

main61611-37370iBU303,343,WU300,340,XZU342..IDN200209-200612

64104APANEL SUB-ASSY, BACK CORNER, OUTER LH

main61612-0W010iXZU349..5F;XZU309,359..IV8202203-202310

main61612-37110iXZU320200212-200408

main61612-37111iXZU320200408-200610

sub61612-37112

main61612-37120iBU303,343,WU300,340,XZU30#,330,340,345..ARL,GCC,GEN,SA,TAIW200212-200410

main61612-37121iBU303,343,WU300,340,XZU30#,330,340,345..ARL,GCC,GEN,TAIW200411-200610

main61612-37220iWU302,342..IDN200612-200911

86392YX010ORNAMENT, ANTENNA

main86392-YX010

9015740016

main90157-40016

9017904026

main90179-04026

26 parts on this diagram · 2 diagrams in section
