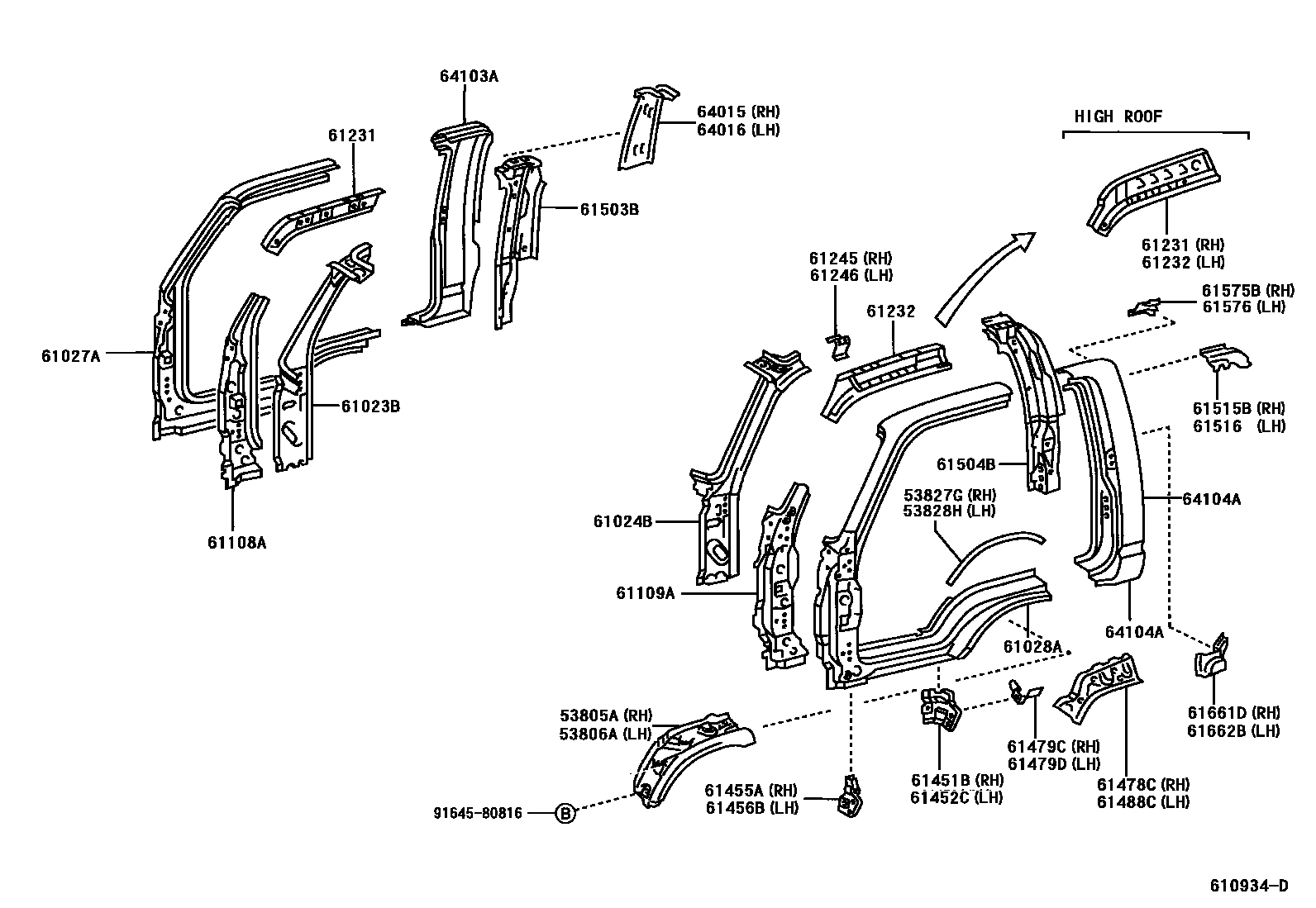

Toyota DYNA — SIDE MEMBER

53805ASHIELD SUB-ASSY, FENDER SPLASH, FRONT RH

main53805-37010i199907-200212

53806ASHIELD SUB-ASSY, FENDER SPLASH, FRONT LH

main53806-37020i199907-200212

W(HIGH ROOF)

53827GPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-37010i199907-200212

53828HPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53827-37010i199907-200212

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-37040i199907-200212

main61023-37050i200108-200212

main61023-37050i199907-200212

W(HIGH ROOF)

61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH

main61024-37090i199907-200212

main61024-37100i199907-200212

W(HIGH ROOF)

main61024-37100i200108-200212

61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH

main61131-37061i200009-200212

main61131-37071i200009-200212

W(HIGH ROOF)

main61131-37080i199907-200009

main61131-37081i200009-200212

main61131-37090i199907-200009

main61131-37091i200009-200212

61028APILLAR SUB-ASSY, FRONT BODY, OUTER LH

main61132-37040i199907-200009

main61132-37041i200009-200212

main61132-37041i200010-200206

W(KEY LESS ENTRY ANTENNA)

main61132-37050i199907-200009

main61132-37051i200009-200212

W(HIGH ROOF & KEY LESS ENTRY ANTENNA)

main61132-37051i200108-200212

main61132-37061i200010-200206

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-37030i199907-200009

main61108-37031i200009-200212

61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH

main61109-37010i199907-200009

main61109-37011i200009-200212

61231RAIL, ROOF SIDE, INNER RH

main61231-37050i199907-200212

main61231-37060i200108-200212

main61231-37060i199907-200212

W(HIGH ROOF)

61232RAIL, ROOF SIDE, INNER LH

main61232-37050i199907-200212

main61232-37060i199907-200212

W(HIGH ROOF)

main61232-37060i200108-200212

61245REINFORCEMENT, ROOF SIDE RAIL, OUTER RH

main61245-37010i199907-200212

main61245-37020i199907-200212

W(HIGH ROOF)

main61245-37020i200108-200212

61246REINFORCEMENT, ROOF SIDE RAIL, OUTER LH

main61245-37010i199907-200212

main61246-37010i199907-200212

W(HIGH ROOF)

main61246-37010i200108-200212

61451BPLATE, STEP, LOWER RH

main61451-37010i199907-200212

61452CPLATE, STEP, LOWER LH

main61452-37010i199907-200212

61455ARETAINER, FRONT STEP, RH

main61455-37010i199907-200212

61456BRETAINER, FRONT STEP, LH

main61456-37010i199907-200212

61478CBRACKET, MUDGUARD, FRONT RH

main61478-37020i199907-200212

61479CBRACKET, FRONT MUDGUARD

main61479-37010i199907-200212

61479DBRACKET, FRONT MUDGUARD

main61479-37010i199907-200212

61488CBRACKET, MUDGUARD, FRONT LH

main61488-37020i199907-200212

61503BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH

main61503-37010i200010-200209

main61503-37020i199907-200209

main61503-37040i199907-200209

61504BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH

main61504-37010i199907-200212

main61504-37020i199907-200212

W(HIGH ROOF)

main61504-37020i200108-200212

61515BEXTENSION, QUARTER LOCK PILLAR, RH

main61515-37010i199907-200212

61516EXTENSION, QUARTER LOCK PILLAR, LH

main61516-37010i199907-200212

61575BPLATE, CAB REAR PILLAR, UPPER RH

main61575-37010i199907-200212

61576PLATE, CAB REAR PILLAR, UPPER LH

main61576-37010i199907-200212

61661DEXTENSION, QUARTER PANEL TO UPPER BACK, RH

main61661-37010i199907-200212

61662BEXTENSION, QUARTER PANEL TO UPPER BACK, LH

main61662-37010i199907-200212

64015PANEL SUB-ASSY, BACK CORNER, INNER RH

main61531-37010i199907-200212

W(TRIM)

main61531-37010i200010-200212

64016PANEL SUB-ASSY, BACK CORNER, INNER LH

main61532-37020i199907-200012

W(TRIM)

main61532-37020i200010-200012

main61532-37021i200012-200212

W(TRIM)

64103APANEL SUB-ASSY, BACK CORNER, OUTER RH

main61611-37140i199907-200212

main61611-37150i199907-200212

W(HIGH ROOF)

64104APANEL SUB-ASSY, BACK CORNER, OUTER LH

main61612-37110i199907-200212

main61612-37120i199907-200212

W(HIGH ROOF)

main61612-37120i200108-200212

9164580816

main91645-80816

35 parts on this diagram · 2 diagrams in section

SIDE MEMBER for Toyota DYNA

This section contains 40 genuine Toyota parts for the SIDE MEMBER system of the Toyota DYNA. Key components include: SHIELD SUB-ASSY, FENDER SPLASH, FRONT RH, SHIELD SUB-ASSY, FENDER SPLASH, FRONT LH, PROTECTOR, FRONT FENDER SIDE PANEL, RH, PROTECTOR, FRONT FENDER SIDE PANEL, LH, PILLAR SUB-ASSY, FRONT BODY, INNER RH.
