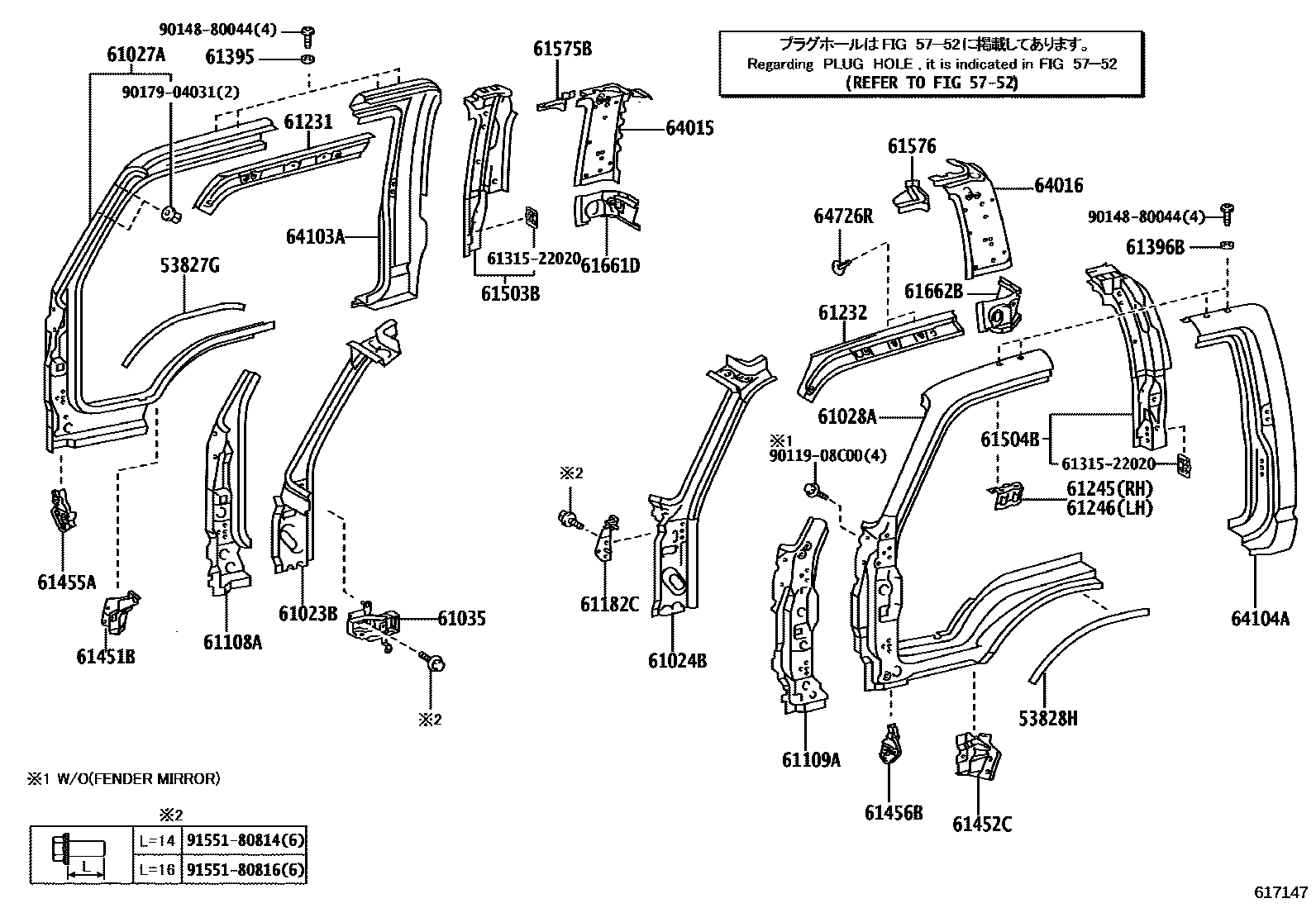

Toyota DYNA — SIDE MEMBER
53827GPROTECTOR, FRONT FENDER SIDE PANEL, RH
53828HPROTECTOR, FRONT FENDER SIDE PANEL, LH
5752
61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH
61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH
61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH
ANTENNA-WITH
61028APILLAR SUB-ASSY, FRONT BODY, OUTER LH
ANTENNA-WITH
61035BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH
61182CBRACKET, INSTRUMENT SIDE, LH
61231RAIL, ROOF SIDE, INNER RH
61232RAIL, ROOF SIDE, INNER LH
61245REINFORCEMENT, ROOF SIDE RAIL, OUTER RH
61246REINFORCEMENT, ROOF SIDE RAIL, OUTER LH
61395SEAL, CENTER BODY PILLAR, RH
61396BSEAL, CENTER BODY PILLAR, LH
61451BPLATE, STEP, LOWER RH
61452CPLATE, STEP, LOWER LH
61455ARETAINER, FRONT STEP, RH
61456BRETAINER, FRONT STEP, LH
61503BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH
61504BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH
61575BPLATE, CAB REAR PILLAR, UPPER RH
61576PLATE, CAB REAR PILLAR, UPPER LH
61661DEXTENSION, QUARTER PANEL TO UPPER BACK, RH
61662BEXTENSION, QUARTER PANEL TO UPPER BACK, LH
64015PANEL SUB-ASSY, BACK CORNER, INNER RH
64016PANEL SUB-ASSY, BACK CORNER, INNER LH
64103APANEL SUB-ASSY, BACK CORNER, OUTER RH
64104APANEL SUB-ASSY, BACK CORNER, OUTER LH
64726RCLIP, ROOF SIDE PANEL
MD.CHARCOAL,TRIM1#
6131522020RETAINER, DOOR LOCK STRIKER PLATE
main61315-22020
9011908C00
main90119-08C00
9014880044
main90148-80044
9017904031
main90179-04031
9155180814
main91551-80814
9155180816
main91551-80816
38 parts on this diagram · 2 diagrams in section
