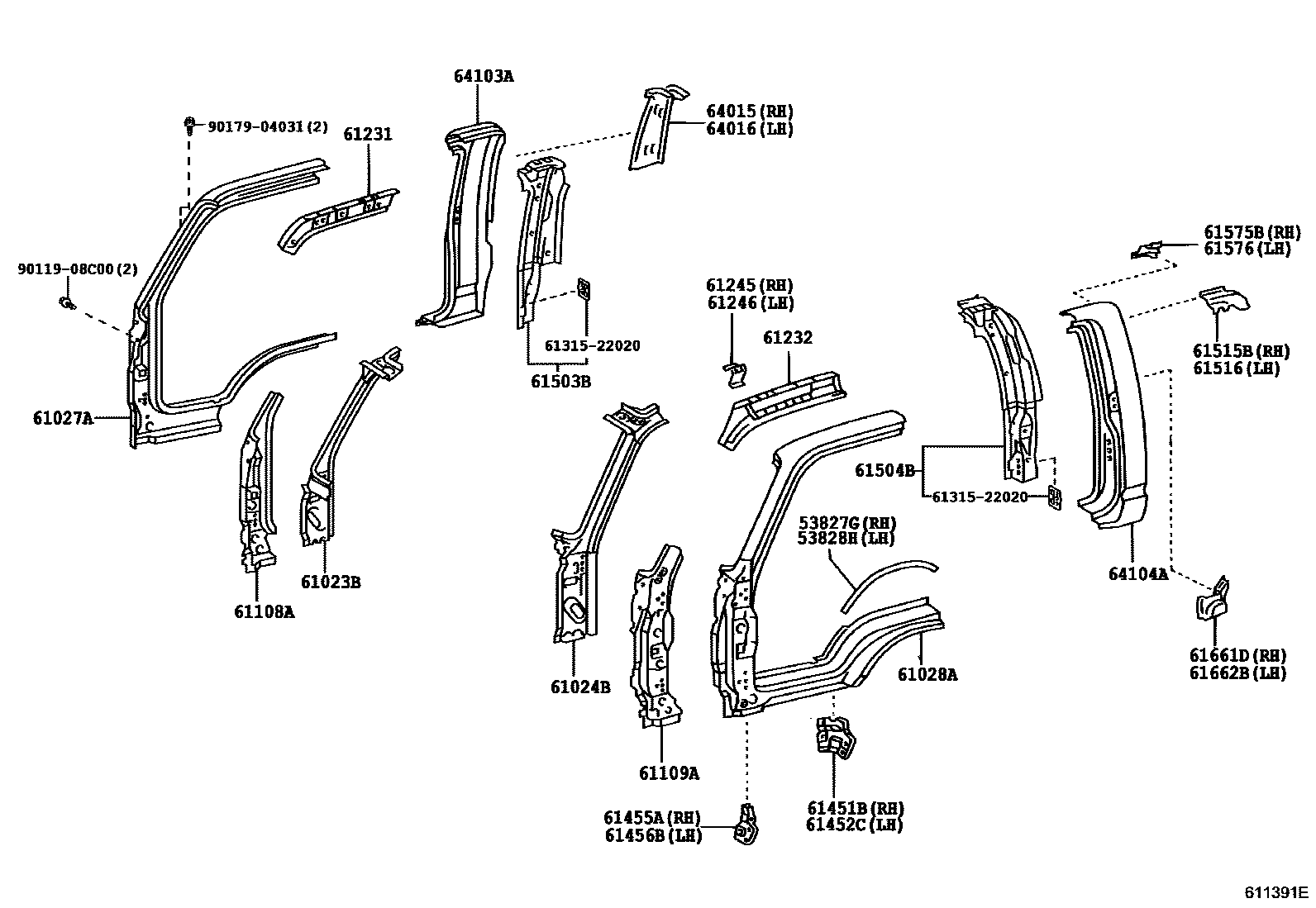

Toyota DYNA — SIDE MEMBER

0001 1PANEL 0002 1PANEL 0003 1HOLE PLUG 0004 1 0005 1HOLE PLUG

53827GPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-37010iKDY22#,23#,25#,26#,LY22#,23#200107-202111

53828HPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53827-37010iKDY22#,23#,25#,26#,LY22#,23#200107-202111

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-25030iLY225,235..RHD200107-201501

W(FRONT HEATER)

main61023-25031iLY225,235201501

W(FRONT HEATER)

main61023-25040iLY225,235..LHD200107-201501

main61023-25041iLY225,235..LHD201501-201610

main61023-37040iKDY231..EUR..CBU;KDY231,251,261..15T;KDY221,LY230..EUR,GEN,SA200110-201501

main61023-37041iKDY221,231,251,261,LY230201501-202111

main61023-37050iKDY22#..IV3;KDY230,250..LHD..15T;KDY231,251,26#..15T..IV3200108-201501

CAETANO

61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH

main61024-25010iLY225,235..RHD..ST200107-201501

W(FRONT HEATER)

main61024-25011iLY225,235201501-201610

W(FRONT HEATER)

main61024-25020iLY225,235..RHD200107-201501

main61024-25021iLY225,235..RHD201501-201610

main61024-25030iKDY221,231..GEN200609-201501

main61024-25031iKDY221,231..GEN201501-201610

main61024-25060iLY235201610

W(FRONT HEATER)

main61024-37090iKDY22#,23#,25#,26#,LY220,230..ARL,EUR,SA200107-201301

main61024-37091iKDY221,231,LY230201610-202111

main61024-37100iKDY230,250..RHD200312-201301

CAETANO

main61024-37220iKDY231..EUR..CBU;KDY221,LY230..EUR,SA;KDY231,251,261..15T..IV3201302-201501

PORTUGAL SPEC

main61024-37221iKDY221,231,251,261,LY230..EUR,SA201501-201610

main61024-37230iKDY221..IV3;KDY231,251,261..15T..IV3201302-201501

CAETANO

61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH

main61131-37061iLY235..RHD..ST;KDY220,230,250,LY22#,230..RHD..(ARL,EUR,GEN)200107-200408

W(ANTENNA)

main61131-37062iLY235..RHD..ST;KDY221,231..RHD..EUR;KDY220,230,25#,LY22#,230..RHD..(ARL,EUR,GEN)200408-201412

W(ANTENNA)

main61131-37063iKDY221,231..RHD..EUR;KDY251,LY225,235..RHD201501

W(ANTENNA)

main61131-37071iKDY220,230,250..RHD..IV3200312-200412

CAETANO & W(ANTENNA)

main61131-37072iKDY22#,23#,25#..RHD..IV3200501-201412

CAETANO & W(ANTENNA)

main61131-37073iKDY221,231,251..RHD..IV3201501-201502

CAETANO & W(ANTENNA)

main61131-37081iKDY220,230,250,260,LY225,23#..EUR,GEN,SA200107-200408

main61131-37082iKDY22#,23#,25#,26#,LY225,23#..EUR,GEN,SA200408-201412

main61131-37083iKDY221,231,251,261,LY225,23#201501-202111

main61131-37091iKDY220..IV3;KDY230,250,260..LHD..15T200108-200412

CAETANO

main61131-37092iKDY22#..IV3;KDY23#,25#,26#..15T..IV3200501-201412

CAETANO

main61131-37093iKDY221..IV3;KDY231,251,261..15T..IV3201501-201502

CAETANO

61028APILLAR SUB-ASSY, FRONT BODY, OUTER LH

main61132-25010iKDY231,251,261..(10T,125T)..IV3201501-201502

PORTUGAL SPEC & W(ANTENNA)

main61132-37041iKDY220,230,250,260,LY225,235..LHD200107-200406

W(ANTENNA)

main61132-37042iKDY22#,23#,25#,26#,LY225,235..LHD200407-201412

W(ANTENNA)

main61132-37043iKDY221,231,251,261,LY225,235..LHD201501

W(ANTENNA)

main61132-37051iKDY220..LHD..IV3;KDY230,250,260..LHD..15T200108-200412

CAETANO & W(ANTENNA)

main61132-37052iKDY22#..LHD..IV3;KDY23#,25#,26#..LHD..15T200501-201412

CAETANO & W(ANTENNA)

main61132-37053iKDY221..LHD..IV3;KDY231,251,261..LHD..15T201501-201502

CAETANO & W(ANTENNA)

main61132-37061iKDY220,230,250,260,LY22#,23#200107-200406

main61132-37062iKDY22#,23#,25#,26#,LY22#,23#200407-201412

main61132-37063iKDY221,231,251,261,LY225,23#201501-202111

main61132-37071iKDY230,250..RHD200312-200412

CAETANO

main61132-37072iKDY22#..IV3;KDY23#,25#,26#..15T..IV3200501-201412

CAETANO

main61132-37073iKDY221..IV3;KDY231,251,261..15T..IV3201501-201502

CAETANO

main61132-37091iKDY231..125T200709-201412

CAETANO

main61132-37092iKDY231,251,261..(10T,125T)..IV3201501-201502

CAETANO

main61132-37101iKDY231..125T200709-201412

CAETANO & W(ANTENNA)

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-37031iKDY22#,23#,25#,26#,LY22#,23#200107-202111

61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH

main61109-37011iKDY22#,23#,25#,26#,LY22#,23#200107-202111

61231RAIL, ROOF SIDE, INNER RH

main61231-37050iKDY22#,23#,25#,26#,LY22#,23#200107-202111

main61231-37060iKDY22#..IV3;KDY230,250..LHD..15T;KDY231,251,26#..15T..IV3200108-201502

CAETANO

main61231-37100iKDY23#..ST..IV3;KDY25#,26#..125T200108-201502

CAETANO

61232RAIL, ROOF SIDE, INNER LH

main61232-37050iKDY22#,23#,25#,26#,LY22#,23#200107-202111

main61232-37060iKDY230,250..RHD200312-201502

CAETANO

main61232-37080iKDY23#..ST..IV3;KDY25#,26#..125T200108-201502

CAETANO

61245REINFORCEMENT, ROOF SIDE RAIL, OUTER RH

main61245-37010iKDY22#,23#,25#,26#,LY22#,23#200107-202111

main61245-37020iKDY22#..IV3;KDY230,250..LHD..15T;KDY231,251,26#..15T..IV3200108-201502

CAETANO

61246REINFORCEMENT, ROOF SIDE RAIL, OUTER LH

main61245-37010iKDY22#,23#,25#,26#,LY22#,23#200107-202111

main61246-37010iKDY22#..IV3;KDY230,250..LHD..15T;KDY231,251,26#..15T..IV3200108-201502

CAETANO

61451BPLATE, STEP, LOWER RH

main61451-37010iLY235..LHD;KDY221,231,LY230..GEN,SA200107-202111

61452CPLATE, STEP, LOWER LH

main61452-37010iLY235..RHD..ST;KDY221,231,LY230..GEN,SA200107-202111

61455ARETAINER, FRONT STEP, RH

main61455-37010iLY235..LHD;KDY221,231,LY230..GEN,SA200107-202111

61456BRETAINER, FRONT STEP, LH

main61456-37010iLY235..RHD..ST;KDY221,231,LY230..GEN,SA200107-202111

61503BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH

main61503-37010iKDY22#,23#,25#..RHD..EUR200108-201407

main61503-37011iKDY221,231,251..RHD..EUR201408-201502

main61503-37020iKDY221,231,251..RHD..EUR200107-201010

W/O(SEAT BELT)

main61503-37021iKDY221..LHD;KDY261,LY23#..15T;KDY231,251..LHD..15T;KDY221,231,LY225..GEN201408-202111

main61503-37030iKDY22#,23#,25#..RHD..IV3200312-201502

CAETANO

main61503-37040iKDY221..LHD..IV3;KDY231,251,261..LHD..15T;KDY220,230,250..RHD..IV3200312-201502

CAETANO & W/O(SEAT BELT)

61504BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH

main61504-25010iKDY22#..LHD..IV3;KDY23#,25#,26#..LHD..15T200108-201502

CAETANO

main61504-25020iKDY22#..LHD;KDY23#,25#,26#..LHD..15T200108-201410

main61504-37010iKDY22#..LHD;KDY23#,25#,26#..LHD..15T200108-201010

W/O(SEAT BELT)

main61504-37011iLY225,235;KDY221,231,251,LY230..RHD201408-202111

main61504-37020iKDY230,250..RHD200312-201502

CAETANO & W/O(SEAT BELT)

main61504-37050iKDY221..LHD;KDY231,251,261..LHD..15T201410-201502

61515BEXTENSION, QUARTER LOCK PILLAR, RH

main61515-37010iKDY22#..IV3;KDY230,250..LHD..15T;KDY231,251,26#..15T..IV3200108-201502

61516EXTENSION, QUARTER LOCK PILLAR, LH

main61516-37010iKDY230,250..RHD200312-201502

61575BPLATE, CAB REAR PILLAR, UPPER RH

main61575-37010iKDY22#,LY22#,23#;KDY23#,25#,26#..15T200107-202111

61576PLATE, CAB REAR PILLAR, UPPER LH

main61576-37010iLY235..LHD;KDY221,231,LY230..GEN,SA200107-202111

61661DEXTENSION, QUARTER PANEL TO UPPER BACK, RH

main61661-37010iKDY22#,LY22#,23#;KDY23#,25#,26#..15T200107-202111

61662BEXTENSION, QUARTER PANEL TO UPPER BACK, LH

main61662-37010iLY235..LHD;KDY221,231,LY230..GEN,SA200107-202111

64015PANEL SUB-ASSY, BACK CORNER, INNER RH

main61531-37020iKDY22#,23#,25#..RHD..EUR200108-201402

main61531-37021iKDY221..RHD..EUR..CBU201403-201412

main61531-37022iKDY221,231,251..RHD..EUR201501-201502

main61531-37040iKDY221..LHD;KDY221,231..GEN;KDY220,LY22#,23#;KDY230,250,26#..15T;KDY231,251..LHD..15T200107-201402

W/O(SEAT BELT)

main61531-37041iKDY221..LHD..CBU;KDY221,231,LY225,23#..GEN,SA201403-201412

W/O(SEAT BELT)

main61531-37042iKDY221..LHD;KDY261,LY23#..15T;KDY231,251..LHD..15T;KDY221,231,LY225..GEN201501-202111

W/O(SEAT BELT)

main64123-37140iKDY23#,25#,26#..10T,125T200108-201402

main64123-37141iKDY231,251,261..10T,125T201403-201502

64016PANEL SUB-ASSY, BACK CORNER, INNER LH

main61532-25010iKDY220..LHD;KDY230,250,260..LHD..15T200107-200111

W/O(SEAT BELT)

main61532-25011iLY225,235..RHD201403-201412

W/O(SEAT BELT)

main61532-25012iLY225,235..RHD201501

main61532-37010iLY225,235..LHD;KDY231,251..RHD;KDY22#..RHD..CBU;KDY220..LHD..IV3;KDY230,250,260,LY230..15T..(EUR,SA)200107-201402

CAETANO & W/O(SEAT BELT)

main61532-37011iKDY221,231,251..RHD..IV3201403-201501

PORTUGAL SPEC & W/O(SEAT BELT)

main61532-37012iLY225,235..LHD;KDY221,231,251,LY230..RHD201501-202111

W/O(SEAT BELT)

main61532-37030iKDY22#..LHD;KDY23#,25#,26#..LHD..15T200108-201402

main61532-37031iKDY221..LHD..IV3;KDY231,251,261..LHD..15T201403-201501

main61532-37032iKDY221..LHD;KDY231,251,261..LHD..15T201501-201502

main64124-37160iKDY23#,25#,26#..10T,125T200108-201402

main64124-37161iKDY231,251,261..10T,125T201403-201502

64103APANEL SUB-ASSY, BACK CORNER, OUTER RH

main61611-37060iKDY23#,25#,26#..10T,125T200108-201412

main61611-37061iKDY231,251,261..10T,125T201501-201502

main61611-37140iKDY220,LY22#,23#;KDY230,250,260..15T200107-200408

main61611-37141iKDY22#,LY22#,23#;KDY23#,25#,26#..15T200408-201412

main61611-37142iLY235..RHD;KDY221,LY225..ST;KDY231,251,261..15T..IV3201501

main61611-37150iKDY220..IV3;KDY230,250,260..LHD..15T200108-200412

CAETANO

main61611-37151iKDY22#..IV3;KDY23#,25#,26#..15T..IV3200501-201412

CAETANO

main61611-37152iKDY221..IV3;KDY231,251,261..15T..IV3201501-201502

PORTUGAL SPEC

64104APANEL SUB-ASSY, BACK CORNER, OUTER LH

main61612-37050iKDY231..(10T,125T)..IV3;KDY230,25#,26#..10T,125T200108-201412

PORTUGAL SPEC

main61612-37051iKDY231,251,261..10T,125T201501-201502

main61612-37110iKDY220,LY22#,23#;KDY230,250,260..15T200107-200406

main61612-37111iKDY22#,LY22#,23#;KDY23#,25#,26#..15T200407-201412

main61612-37112iKDY221,231,LY23#..RHD..(GEN,SA)201501-202111

main61612-37120iKDY220..IV3;KDY230,250,260..LHD..15T200108-200412

CAETANO

main61612-37121iKDY22#..IV3;KDY23#,25#,26#..15T..IV3200501-201412

CAETANO

main61612-37122iKDY221..IV3;KDY231,251,261..15T..IV3201501-201502

PORTUGAL SPEC

6131522020RETAINER, DOOR LOCK STRIKER PLATE

main61315-22020

9011908C00

main90119-08C00

9017904031

main90179-04031

31 parts on this diagram · 5 diagrams in section
