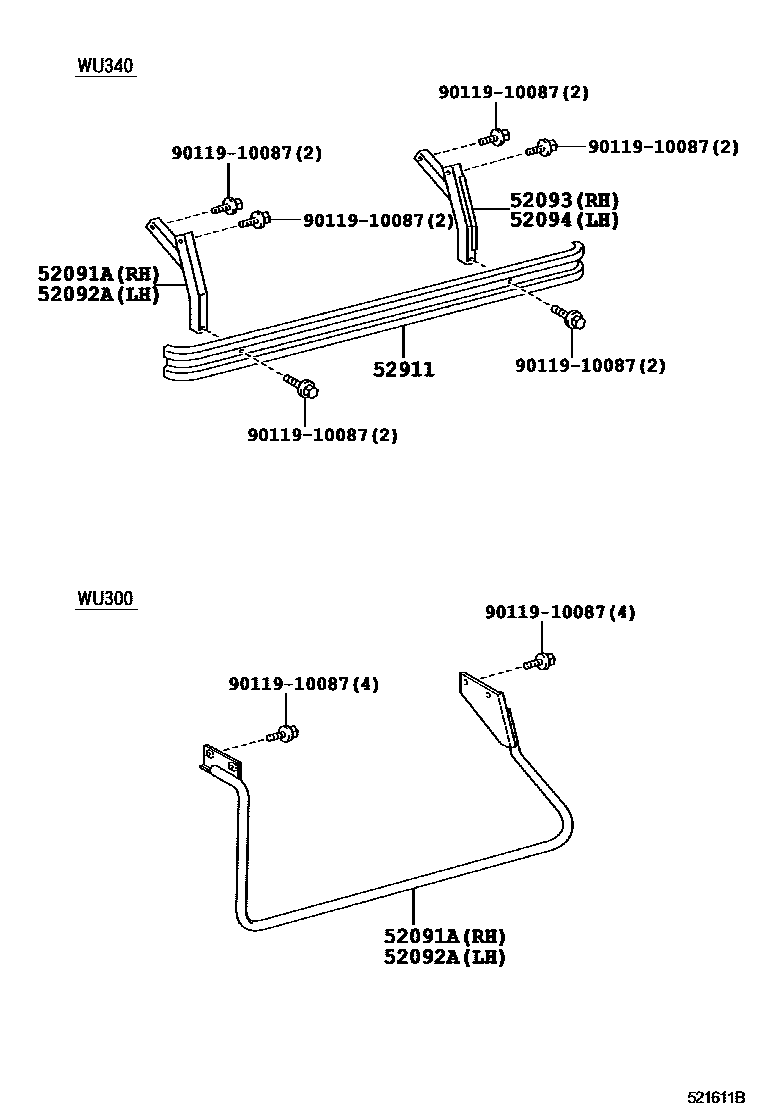

Toyota DYNA — SIDE BUMPER & BUMPER STAY

52091ASTAY SUB-ASSY, SIDE BUMPER, FRONT RH

main52091-37480i200508-200610

main52091-37481i200910-201106

main52091-37850i200610-201106

52092ASTAY SUB-ASSY, SIDE BUMPER, FRONT LH

main52092-37450i200508-200610

main52092-37451i200910-201106

main52092-37800i200610-201106

52093STAY SUB-ASSY, SIDE BUMPER, REAR RH

main52093-37080i200508-200610

main52093-37081i200910-201106

52094STAY SUB-ASSY, SIDE BUMPER, REAR LH

main52094-37040i200508-200610

main52094-37041i200910-201106

52911BAR, SIDE BUMPER

main52911-37600×2i200508-200610

9011910087

main90119-10087

6 parts on this diagram · 1 diagram in section

SIDE BUMPER & BUMPER STAY for Toyota DYNA

This section contains 6 genuine Toyota parts for the SIDE BUMPER & BUMPER STAY system of the Toyota DYNA. Key components include: STAY SUB-ASSY, SIDE BUMPER, FRONT RH, STAY SUB-ASSY, SIDE BUMPER, FRONT LH, STAY SUB-ASSY, SIDE BUMPER, REAR RH, STAY SUB-ASSY, SIDE BUMPER, REAR LH, BAR, SIDE BUMPER.
