Toyota DYNA — SHORT BLOCK ASSEMBLY

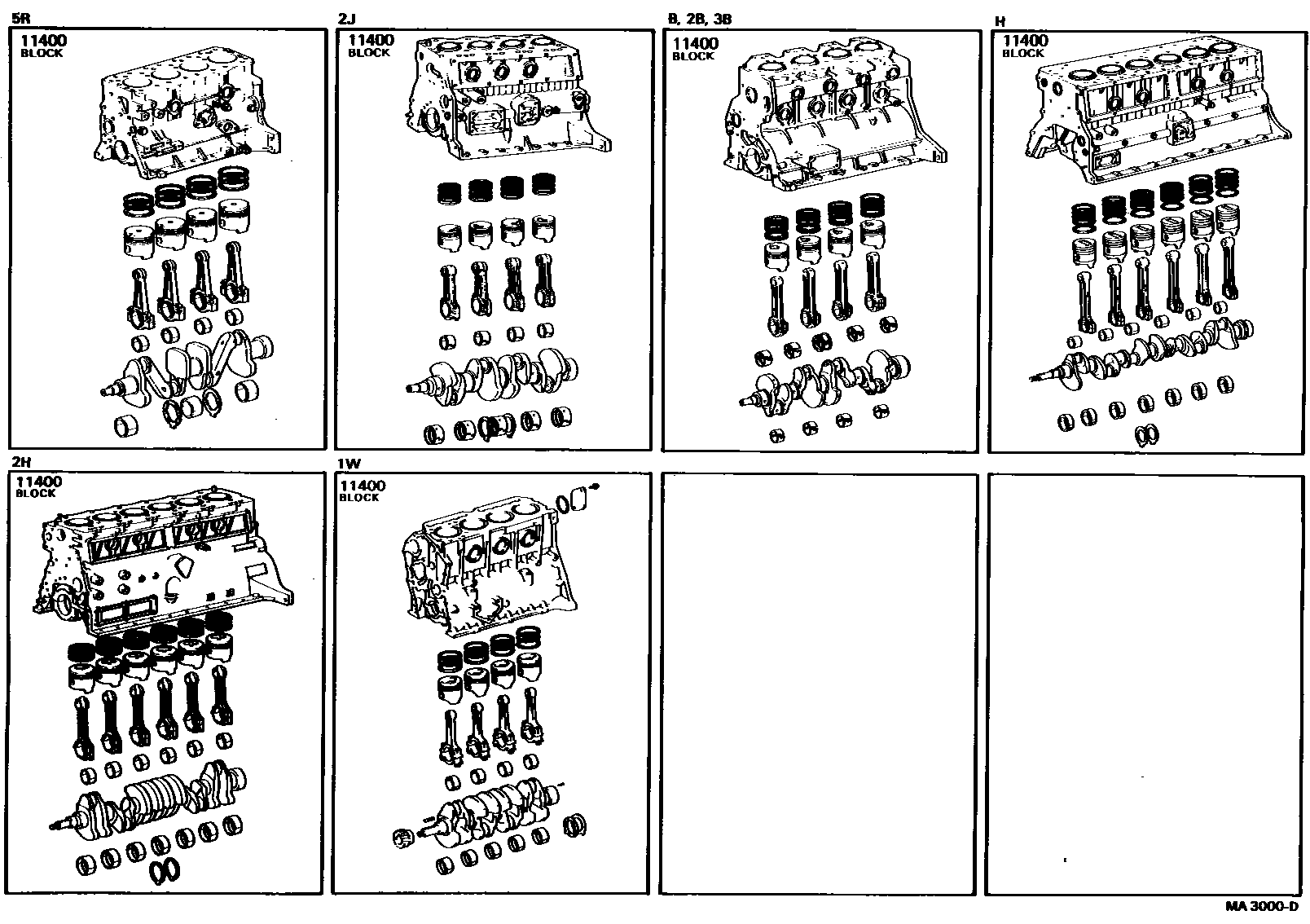

Parts diagram

11400BLOCK ASSY, SHORT

main11400-44060i197708-197801

main11400-44070i197708-197808

CHINA SPEC

main11400-47014i197708-198104

main11400-48015i197708-197904

main11400-49025i197801-197808

main11400-49035i197808-198408

main11400-49045i197808-198104

CHINA SPEC

main11400-56011i197708-198008

main11400-56020i198008-198201

main11400-56021i198201-198209

main11400-56022i198209-198408

main11400-57020i198104-198201

main11400-57021i198201-198204

main11400-58010i198104-198201

main11400-58011i198201-198209

main11400-58012i198209-198408

main11400-68010i198204-198408

main11400-78010i198304-198408

1 parts on this diagram · 1 diagram in section

SHORT BLOCK ASSEMBLY for Toyota DYNA

This section contains 1 genuine Toyota parts for the SHORT BLOCK ASSEMBLY system of the Toyota DYNA. Key components include: BLOCK ASSY, SHORT.
