Toyota DYNA — SHORT BLOCK ASSEMBLY

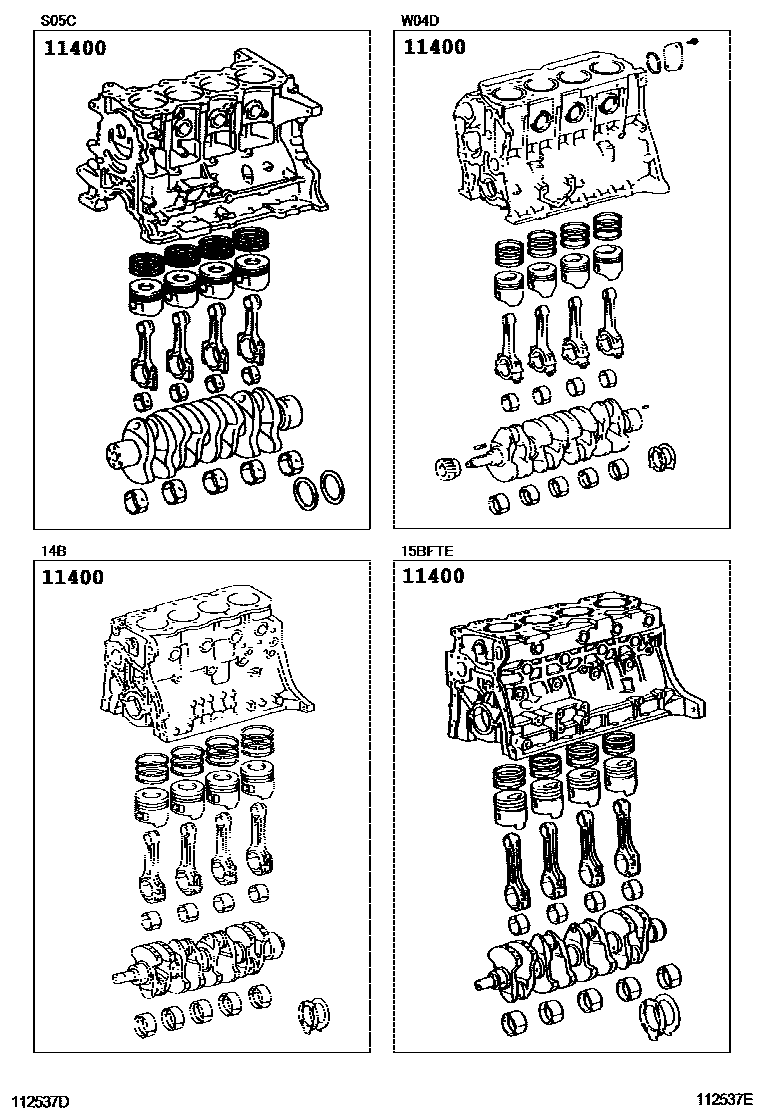

Parts diagram

11400BLOCK ASSY, SHORT

main11400-58170i200209-200612

main11400-58230i200212-200312

main11400-78080i200209-200612

main11400-78090i200209-200305

main11400-78170i200312-200610

main11400-78220i200305-200612

main11400-78330i200212-200802

main11400-78350i200610-201008

main11400-78360i200610-201008

main11400-78370i200612-201005

main11400-78380i200610-200901

main11400-78480i200912-201008

main11400-78550i201008-201106

main11400-78560i201008-201106

main11400-78590i201008

main11400-78B30i201804

W(PTO(MIXER))

1 parts on this diagram · 2 diagrams in section

SHORT BLOCK ASSEMBLY for Toyota DYNA

This section contains 1 genuine Toyota parts for the SHORT BLOCK ASSEMBLY system of the Toyota DYNA. Key components include: BLOCK ASSY, SHORT.
