Toyota DYNA — SHIFT LEVER & RETAINER

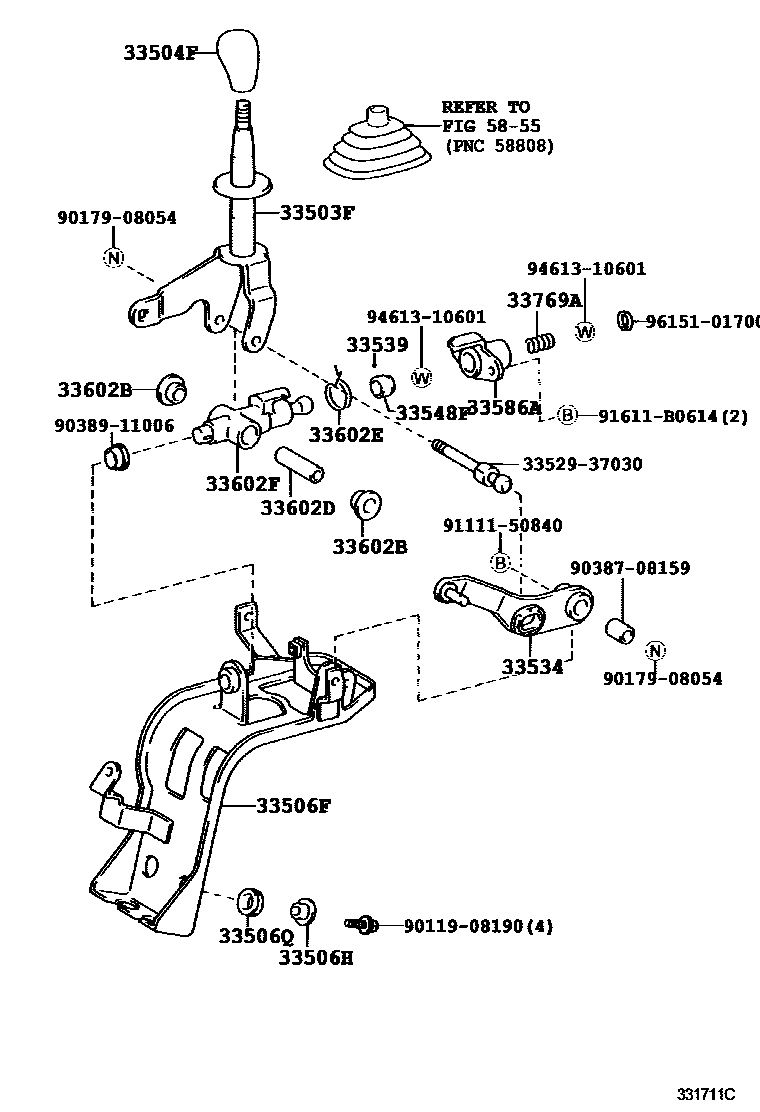

Parts diagram

33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)

main33055-37060i200110-200412

main33055-37091i200110-200610

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-36051-B1i200610-201106

DK.CHARCOAL,TRIM1#

main33504-36080-B1i200206-200610

DK.CHARCOAL,TRIM1#

main33504-37030-B0i200110-200206

DK.CHARCOAL,TRIM1#

main33504-37040-B0i200110-200206

DK.CHARCOAL,TRIM1#

main33504-37060-B0i200610-201208

DK.CHARCOAL,TRIM1#

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33506-37031i200110-200412

main33506-37052i200110-200610

33506HBUSH (FOR SHIFT LEVER RETAINER)

main33546-37010×4i200909-201208

main90386-12056×4i200110-200608

33506QGROMMET, NO.1(FOR CONTROL SHIFT LEVER RETAINER)

main33577-37060×4i200110-200608

33534BELLCRANK, SELECTING

main33534-37060i200110-200412

main33534-37081i200110-200608

33539CUSHION, SHIFT LEVER ANTI-RATTLE

main33539-12010i200110-200412

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-12040i200110-200412

33586ASTOPPER, CONTROL LEVER (FOR FLOOR SHIFT)

main33586-37010i200110-200608

main33586-37020i200110-200412

33602BBUSHING (FOR SELECT LEVER)

main90386-13007×2i200110-200610

33602DCOLLAR (FOR SELECT LEVER)

main90387-08063i200110-200412

33602ESPRING, TORSION (FOR SELECT LEVER)

main90949-03034i200110-200412

33602FLEVER SUB-ASSY, SELECT (FOR FLOOR SHIFT)

main33602-37020i200110-200412

main33602-37030i200110-200608

33769ASPRING, CROSS SHAFT END

main33769-37020i200110-200412

5855CONSOLE BOX & BRACKET

→ Go to FIG 58-55

3352937030BOLT, SHIFT LEVER (FOR CONTROL SHAFT)

main33529-37030

9011908190

main90119-08190

9017908054

main90179-08054

9038708159

main90387-08159

9038911006

main90389-11006

9111150840

main91111-50840

91611B0614

main91611-B0614

9461310601

main94613-10601

9615101700

main96151-01700

24 parts on this diagram · 14 diagrams in section

SHIFT LEVER & RETAINER for Toyota DYNA

This section contains 64 genuine Toyota parts for the SHIFT LEVER & RETAINER system of the Toyota DYNA. Key components include: LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT), KNOB SUB-ASSY, SHIFT LEVER, RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT), BUSH (FOR SHIFT LEVER RETAINER), GROMMET, NO.1(FOR CONTROL SHIFT LEVER RETAINER).
