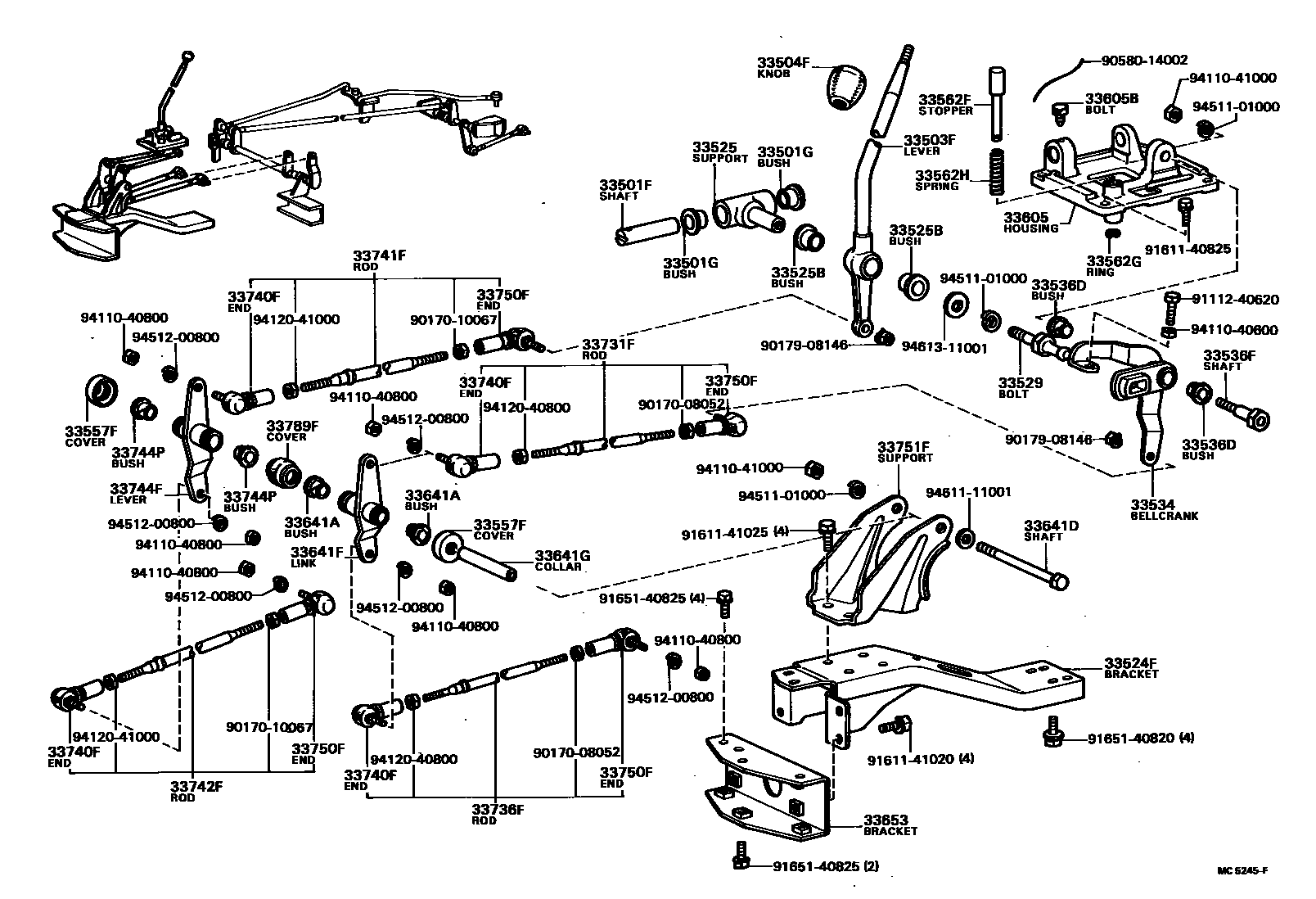

Toyota DYNA — SHIFT LEVER & RETAINER
33501FSHAFT SUB-ASSY, CONTROL (FOR FLOOR SHIFT)
33501GBUSH (FOR FLOOR SHIFT CONTROL SHAFT)
33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33504FKNOB SUB-ASSY, SHIFT LEVER
BLACK
DARK BROWN,BROWN
BLACK
DARK BROWN,BROWN
33524FBRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT)
33525SUPPORT, SHIFT LEVER
33525BBUSH (FOR SHIFT LEVER SUPPORT)
33529BOLT, SHIFT LEVER (FOR CONTROL SHAFT)
33534BELLCRANK, SELECTING
33536DBUSH, CONTROL SELECT LEVER SHAFT (FOR FLOOR SHIFT)
33536FSHAFT, CONTROL SELECT LEVER (FOR FLOOR SHIFT)
33557FCOVER, CONTROL BELLCRANK DUST (FOR FLOOR SHIFT)
33562FSTOPPER, CONTROL SHAFT UPPER BRACKET SHAFT
33562GRING, E (FOR CONTROL SHAFT UPPER BRACKET SHAFT STOPPER)
33562HSPRING, COMPRESSION (FOR CONTROL SHAFT UPPER BRACKET)
33605HOUSING, CONTROL LEVER
33605BBOLT, LOCK (FOR FLOOR SHIFT CONTROL SHAFT)
33641ABUSH (FOR SELECTING LINK)
33641DSHAFT, SELECTING LINK
33641FLINK, SELECTING (FOR FLOOR SHIFT)
33641GCOLLAR, SELECTING LINK
33653BRACKET, CONTROL LEVER HOUSING SUPPORT
33731FROD, GEAR SELECTING, NO.1 (FOR FLOOR SHIFT)
33736FROD, GEAR SELECTING, NO.2(FOR FLOOR SHIFT)
33740FEND ASSY, CONNECTING ROD, NO.1(FOR FLOOR SHIFT)
M8
SHIFTING ROD
33741FROD, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)
33742FROD, GEAR SHIFTING, NO.2(FOR FLOOR SHIFT)
33744FLEVER, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)
33744PBUSH (FOR SHIFTING, NO.1)
33750FEND, CONNECTING ROD, NO.2 (FOR FLOOR SHIFT)
M8
SHIFTING ROD
33751FSUPPORT, GEAR SHIFT LINK LEVER (FOR FLOOR SHIFT)
33789FCOVER, CROSS SHAFT DUST, NO.1(FOR FLOOR SHIFT)
KNOB X LEVER LH
KNOB X LEVER RH
LEVER X LINK; SHAFT X LEVER
SHAFT X LEVER
9017008052
main90170-08052
9017010067
main90170-10067
9017908146
main90179-08146
9058014002
main90580-14002
9111240620
main91112-40620
9161140825
main91611-40825
9161141020
main91611-41020
9161141025
main91611-41025
9165140820
main91651-40820
9165140825
main91651-40825
9411040600
main94110-40600
9411040800
main94110-40800
9411041000
main94110-41000
9412040800
main94120-40800
9412041000
main94120-41000
9451101000
main94511-01000
9451200800
main94512-00800
9461111001
main94611-11001
9461311001
main94613-11001
51 parts on this diagram · 9 diagrams in section
SHIFT LEVER & RETAINER for Toyota DYNA
This section contains 133 genuine Toyota parts for the SHIFT LEVER & RETAINER system of the Toyota DYNA. Key components include: SHAFT SUB-ASSY, CROSS, NO.2(FOR FLOOR SHIFT), SHAFT SUB-ASSY, CONTROL (FOR FLOOR SHIFT), BUSH (FOR FLOOR SHIFT CONTROL SHAFT), HOUSING SUB-ASSY, SHIFT LEVER (FOR FLOOR SHIFT), LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT).
