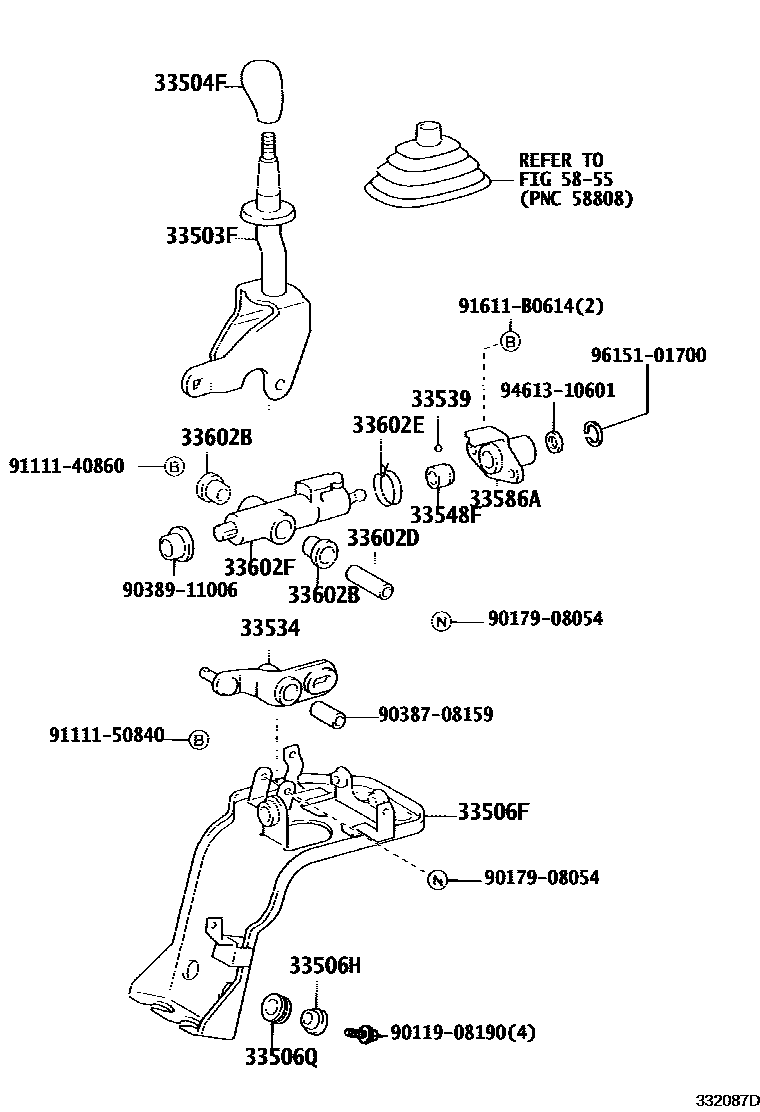

Toyota DYNA — SHIFT LEVER & RETAINER
33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33504FKNOB SUB-ASSY, SHIFT LEVER
DK.CHARCOAL,TRIM1#
BLACK,TRIM1#
BLACK,TRIM4#
BLACK,TRIM4#
33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)
33506HBUSH (FOR SHIFT LEVER RETAINER)
33506QGROMMET, NO.1(FOR CONTROL SHIFT LEVER RETAINER)
33534BELLCRANK, SELECTING
33539CUSHION, SHIFT LEVER ANTI-RATTLE
33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)
33586ASTOPPER, CONTROL LEVER (FOR FLOOR SHIFT)
33602BBUSHING (FOR SELECT LEVER)
33602DCOLLAR (FOR SELECT LEVER)
33602ESPRING, TORSION (FOR SELECT LEVER)
33602FLEVER SUB-ASSY, SELECT (FOR FLOOR SHIFT)
5855CONSOLE BOX & BRACKET
9011908190
main90119-08190
9017908054
main90179-08054
9038708159
main90387-08159
9038911006
main90389-11006
9111140860
main91111-40860
9111150840
main91111-50840
91611B0614
main91611-B0614
9461310601
main94613-10601
9615101700
main96151-01700
23 parts on this diagram · 20 diagrams in section
SHIFT LEVER & RETAINER for Toyota DYNA
This section contains 81 genuine Toyota parts for the SHIFT LEVER & RETAINER system of the Toyota DYNA. Key components include: LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT), KNOB SUB-ASSY, SHIFT LEVER, RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT), BUSH (FOR SHIFT LEVER RETAINER), GROMMET, NO.1(FOR CONTROL SHIFT LEVER RETAINER).
