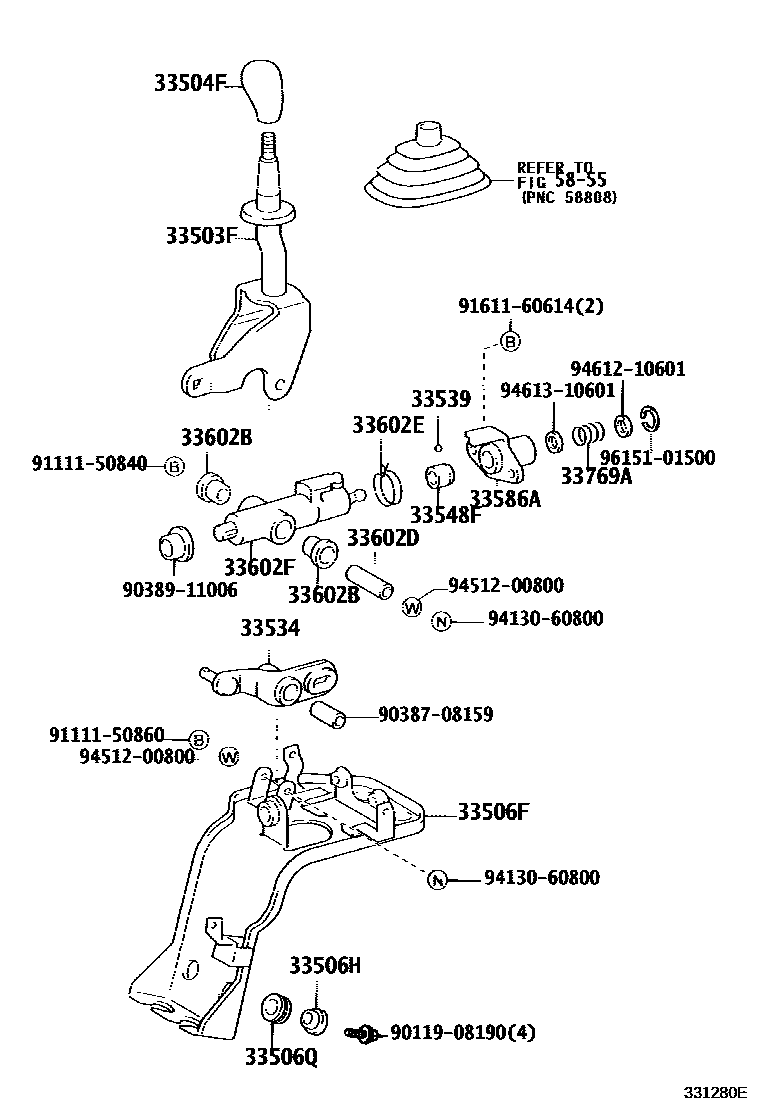

Toyota DYNA — SHIFT LEVER & RETAINER
33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
W/O(POWER WINDOW)
33504FKNOB SUB-ASSY, SHIFT LEVER
DK.CHARCOAL,TRIM1#
DK.CHARCOAL,TRIM1#
33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)
33506HBUSH (FOR SHIFT LEVER RETAINER)
33506QGROMMET, NO.1(FOR CONTROL SHIFT LEVER RETAINER)
33534BELLCRANK, SELECTING
33539CUSHION, SHIFT LEVER ANTI-RATTLE
33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)
33586ASTOPPER, CONTROL LEVER (FOR FLOOR SHIFT)
33602BBUSHING (FOR SELECT LEVER)
33602DCOLLAR (FOR SELECT LEVER)
33602ESPRING, TORSION (FOR SELECT LEVER)
33602FLEVER SUB-ASSY, SELECT (FOR FLOOR SHIFT)
33769ASPRING, CROSS SHAFT END
5855CONSOLE BOX & BRACKET
9011908190
main90119-08190
9038708159
main90387-08159
9038911006
main90389-11006
9111150840
main91111-50840
9111150860
main91111-50860
9161160614
main91611-60614
9413060800
main94130-60800
9451200800
main94512-00800
9461210601
main94612-10601
9461310601
main94613-10601
9615101500
main96151-01500
26 parts on this diagram · 6 diagrams in section
SHIFT LEVER & RETAINER for Toyota DYNA
This section contains 66 genuine Toyota parts for the SHIFT LEVER & RETAINER system of the Toyota DYNA. Key components include: LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT), KNOB SUB-ASSY, SHIFT LEVER, RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT), BUSH (FOR SHIFT LEVER RETAINER), GROMMET, NO.1(FOR CONTROL SHIFT LEVER RETAINER).
