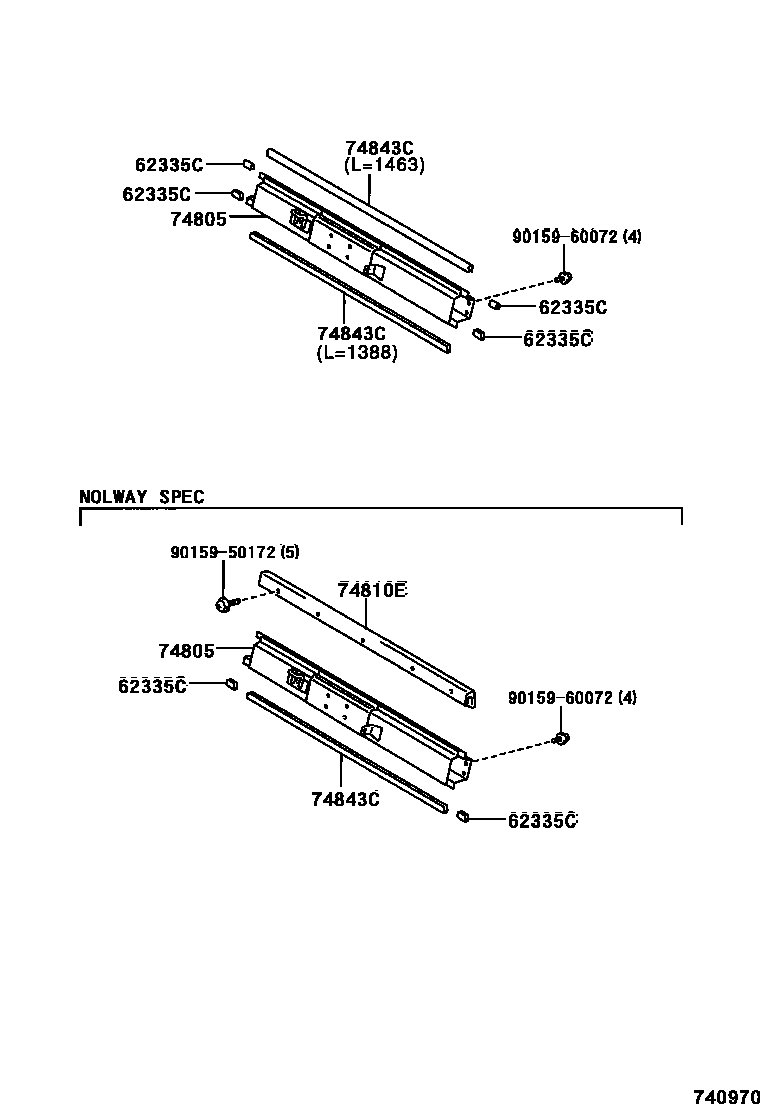

Toyota DYNA — SEPARATOR & SEPARATOR CURTAIN

62335CCOVER, SEPARATOR BAR

main62335-37010-B0i200108-201502

NORWAY SPEC,MD.CHARCOAL,TRIM1#

main62335-37010-B0i200108-201502

MD.CHARCOAL,TRIM1#

74805SEPARATOR SUB-ASSY

main74805-25010i200108-201502

NORWAY SPEC

main74805-25020i200108-201502

74810EBAR ASSY, SEPARATOR

main74810-25020i200108-200311

main74810-25030i200311-201502

74843CTRIM, SEPARATOR, UPPER REAR

main74843-25010-B0i200312-201502

MD.CHARCOAL,TRIM1#,L=1388

main74843-25020-B0i200312-201502

MD.CHARCOAL,TRIM1#,L=1463

main74843-37010-B0i200108-200311

MD.CHARCOAL,TRIM1#,L=1463

main74843-37020-B0i200108-200311

MD.CHARCOAL,TRIM1#,L=1388

9015950172

main90159-50172

9015960072

main90159-60072

6 parts on this diagram · 1 diagram in section

SEPARATOR & SEPARATOR CURTAIN for Toyota DYNA

This section contains 6 genuine Toyota parts for the SEPARATOR & SEPARATOR CURTAIN system of the Toyota DYNA. Key components include: COVER, SEPARATOR BAR, SEPARATOR SUB-ASSY, BAR ASSY, SEPARATOR, TRIM, SEPARATOR, UPPER REAR.
