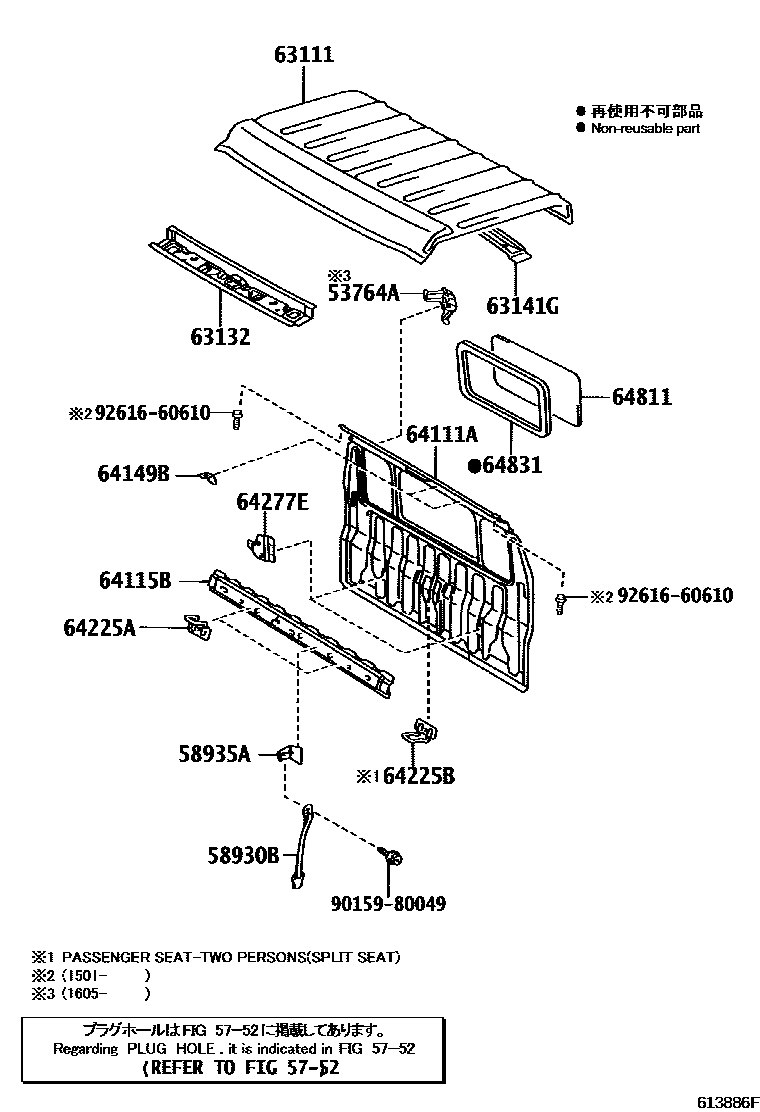

Toyota DYNA — ROOF PANEL & BACK PANEL

53764ABRACKET, AIR CLEANER INLET, NO.1

main53764-37110i201605-202005

AIR CLEANER INLET-REAR SETTING TYPE(FULL STACK)

5752

58930BBAND ASSY, ENGINE SERVICE HOLE COVER SUPPORT

main58930-25010i201206-202005

main58930-37020i201107-201205

58935ABRACKET, ENGINE SERVICE HOLE COVER SUPPORT BAND

main58935-37020i201107-202005

63111PANEL, ROOF

main63111-37131i201107-201111

main63111-37132i201112-202005

63132PANEL, WINDSHIELD HEADER, INNER

main63109-37061i202211

main63132-37082i201107-201412

main63132-37083i201412-201511

main63132-37084i201512-201811

main63132-37085i201812-202005

main63132-37086i202109-202211

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-37070i201107-202005

64111APANEL, BACK

main64111-37374i201107-201410

main64111-37375i201410-201501

main64111-37376i201501-202005

64115BREINFORCEMENT, BACK PANEL

main64115-25040i201607-202005

main64115-25041i202211-202410

main64115-25042i202411-202412

main64115-25043i202412

main64115-37124i201107-201607

64149BRETAINER, BACK PANEL HEADREST

main64149-37010×2i201911-202106

64225AHANGER, REAR SEAT CUSHION SUPPORT

main64209-37010i201107-202005

64225BHANGER, REAR SEAT CUSHION SUPPORT

main64209-37040i201605-202005

AIR CLEANER INLET-REAR SETTING TYPE(FULL STACK)&FRONT SEAT-*PAS = TWO PERSONS SEAT(SEPARATE)

64277EBRACKET, BACK PANEL TRIM, LOWER

64811GLASS, BACK WINDOW

main64811-37120i201107-202005

*TEM,T=3.5,GREEN

64831WEATHERSTRIP, BACK WINDOW GLASS

main64831-37041i201107-202005

9015980049

main90159-80049

9261660610

main92616-60610

17 parts on this diagram · 1 diagram in section
