Toyota DYNA — ROOF PANEL & BACK PANEL

0001 1 0002 1 0003 1

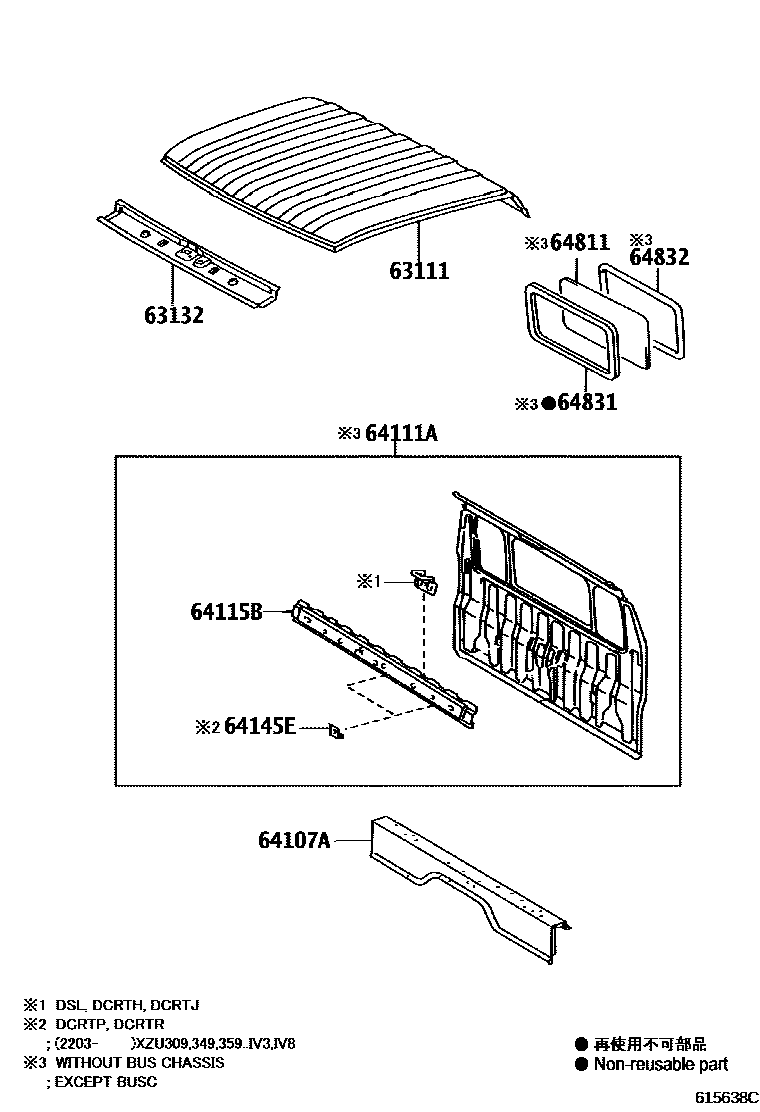

63111PANEL, ROOF

main63111-37120iXZU327200610-200901

main63111-37130iBU303,343,WU300,340,XZU30#,330,340,345..ARL,GCC,GEN,TAIW200212-200610

sub63111-37131

main63111-37230iWU302,342..(DCRTH,DCRTJ)..IDN200612-201005

63132PANEL, WINDSHIELD HEADER, INNER

main63132-0W030iWU302,342..IDN200904-200906

main63132-37070iXZU320200212-200603

main63132-37071iXZU327200610-200901

main63132-37081iBU303,343,WU300,340,XZU30#,330,340,345..ARL,GCC,GEN,SA,TAIW200212-200603

main63132-37082iWU30#,34#..GCC,GEN200610-201106

main63132-37140iXZU349..5F;XZU309,359..IV8202203-202310

64107AFRAME SUB-ASSY, BACK

main64107-0W010iWU302,342..DCRTP,DCRTR200912-201008

main64107-0W011iWU302,342..IDN201009-201611

main64107-0W012iWU302,342,352..T3,VBODY201612

main64107-37530iBU303,343,WU300,340,XZU342..IDN200209-200612

main64107-F1010iWU302,342..BUSC201708

64111APANEL, BACK

main64100-0W010iXZU349..6F;XZU309..IV3202203

main64100-3V310iBU303,343,WU300,340,XZU342..IDN200209-200612

main64111-37372iBU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,SA,TAIW200212-200603

main64111-37373iWU30#,34#,XZU307,327,337,347..GCC,GEN,SA,TAIW200610-201012

main64111-37374iWU30#,34#..GCC,GEN201012-201106

64115BREINFORCEMENT, BACK PANEL

main64115-25040iWU302,342,352201607

main64115-25041iXZU349..5F;XZU309,359..IV8202212-202310

main64115-25042iXZU349..6F;XZU309..IV3202411-202412

main64115-25043iXZU349..6F;XZU309..IV3202412

main64115-37121iBU300,340200212-200312

main64115-37122iBU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW200604-200610

main64115-37123iWU30#,34#..GCC,GEN201008-201012

main64115-37124iWU30#,34#..GCC,GEN201012-201106

64145EBRACKET, REAR SEATBACK SET

main64145-0W020×2iWU302,342,352..DCRTP,DCRTR200912

64811GLASS, BACK WINDOW

main64811-0W300iWU302,342..(DCRTH,DCRTJ)..IDN200612-201005

*TEM,T=3.5,GREEN

main64811-0W360iWU302,342,352..(DCRTP,DCRTR)..(T3,VBODY)200912

*TEM,T=3.2,GREEN

main64811-37120iXZU307,327,337,347200610-200901

*TEM,T=3.5,GREEN

64831WEATHERSTRIP, BACK WINDOW GLASS

main64831-0W010iXZU349..6F;XZU309..IV3202203

main64831-37040iBU30#,34#,WU300,340,XZU300,320,330,340..ARL,GCC,GEN,SA,TAIW200212-200309

main64831-37041iBU300,340200309-200312

64832KEY, BACK WINDOW WEATHERSTRIP

main64832-0W010iBU303,343,WU300,340,XZU342..IDN200209-200612

9 parts on this diagram · 3 diagrams in section
