Toyota DYNA — REFLEX REFLECTOR

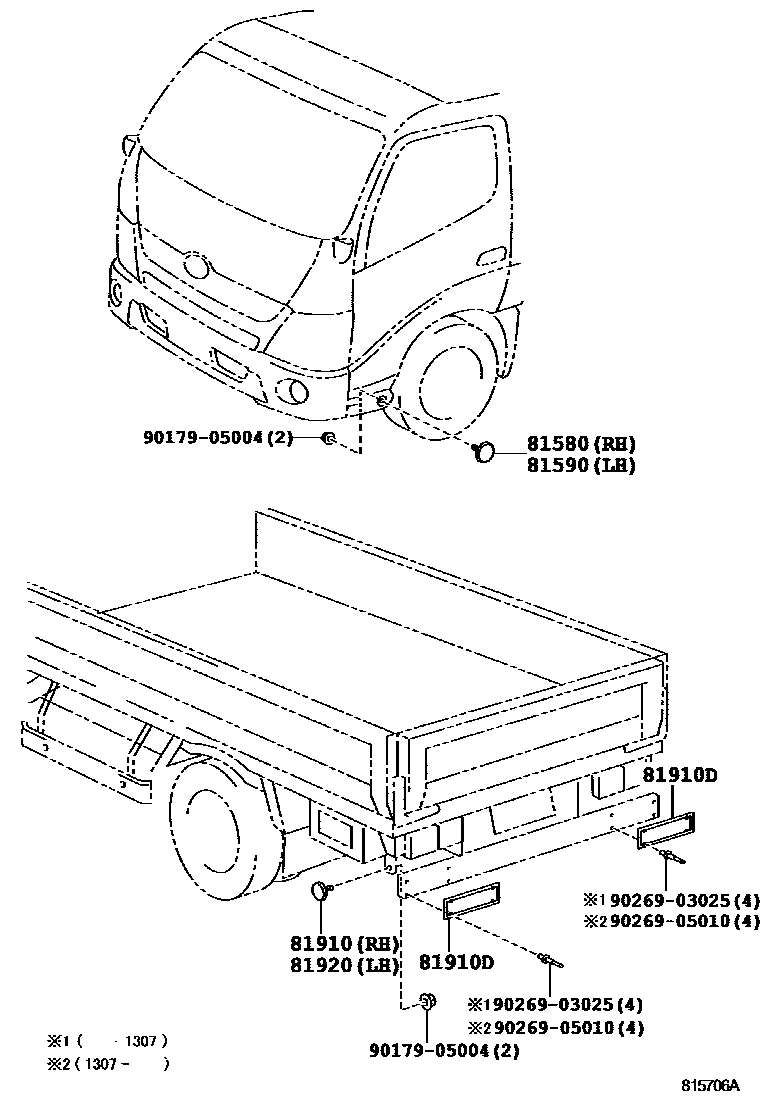

Parts diagram
81580REFLECTOR ASSY, REFLEX SIDE, RH
main81910-37070i201107-202005
81590REFLECTOR ASSY, REFLEX SIDE, LH
main81910-37070i201107-202005
81910REFLECTOR ASSY, REFLEX, RH
main81910-37070i201107-202005
81910DREFLECTOR ASSY, REFLEX, REAR
main81910-37061i201605-202005
81920REFLECTOR ASSY, REFLEX, LH
main81910-37070i201107-202005
9017905004
main90179-05004
9026903025
main90269-03025
9026905010
main90269-05010

8 parts on this diagram · 2 diagrams in section

REFLEX REFLECTOR for Toyota DYNA

This section contains 8 genuine Toyota parts for the REFLEX REFLECTOR system of the Toyota DYNA. Key components include: REFLECTOR ASSY, REFLEX SIDE, RH, REFLECTOR ASSY, REFLEX SIDE, LH, REFLECTOR ASSY, REFLEX, RH, REFLECTOR ASSY, REFLEX, REAR, REFLECTOR ASSY, REFLEX, LH.
