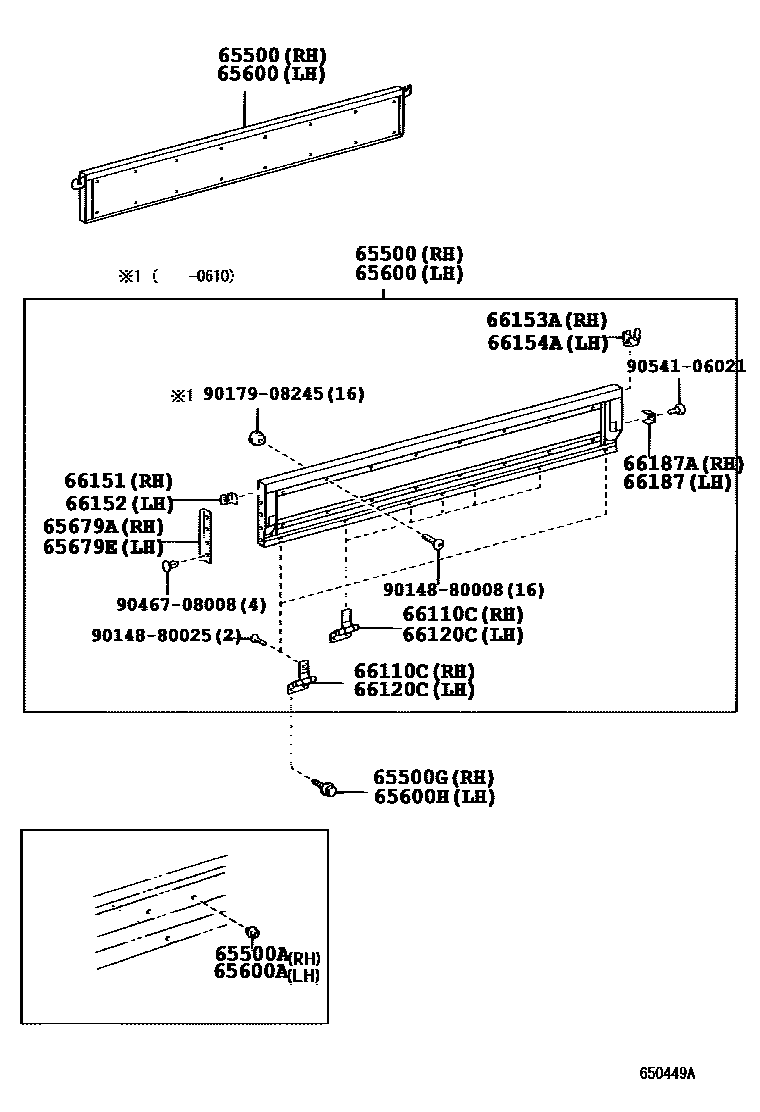

Toyota DYNA — REAR BODY SIDE PANEL
65500PANEL ASSY, REAR BODY SIDE, RH
UAE SPEC
65500APLUG, HOLE(FOR REAR BODY SIDE PANEL)
65500GBOLT, W/WASHER(FOR SIDE GATE, RH)
65600PANEL ASSY, REAR BODY SIDE, LH
UAE SPEC
65600APLUG, HOLE(FOR SIDE GATE, LH)
65600HBOLT, W/WASHER(FOR SIDE GATE, LH)
65679ASEAL, SIDE GATE
65679ESEAL, SIDE GATE
66110CHINGE ASSY, SIDE GATE, NO.1 RH
CENTER
CENTER
FRONT & REAR
66120CHINGE ASSY, SIDE GATE, NO.1 LH
CENTER
CENTER
FRONT & REAR
66151LATCH, SIDE GATE FEMALE, RH
66152LATCH, SIDE GATE FEMALE, LH
66153ALATCH, TAIL GATE FEMALE, RH
66154ALATCH, TAIL GATE FEMALE, LH
66187HANDLE, SIDE GATE LATCH, CENTER NO.2
66187ALATCH, SIDE GATE SUPPORT
RH
LH
9014880008
main90148-80008
9014880025
main90148-80025
9017908245
main90179-08245
9046708008
main90467-08008
9054106021
main90541-06021
21 parts on this diagram · 2 diagrams in section
