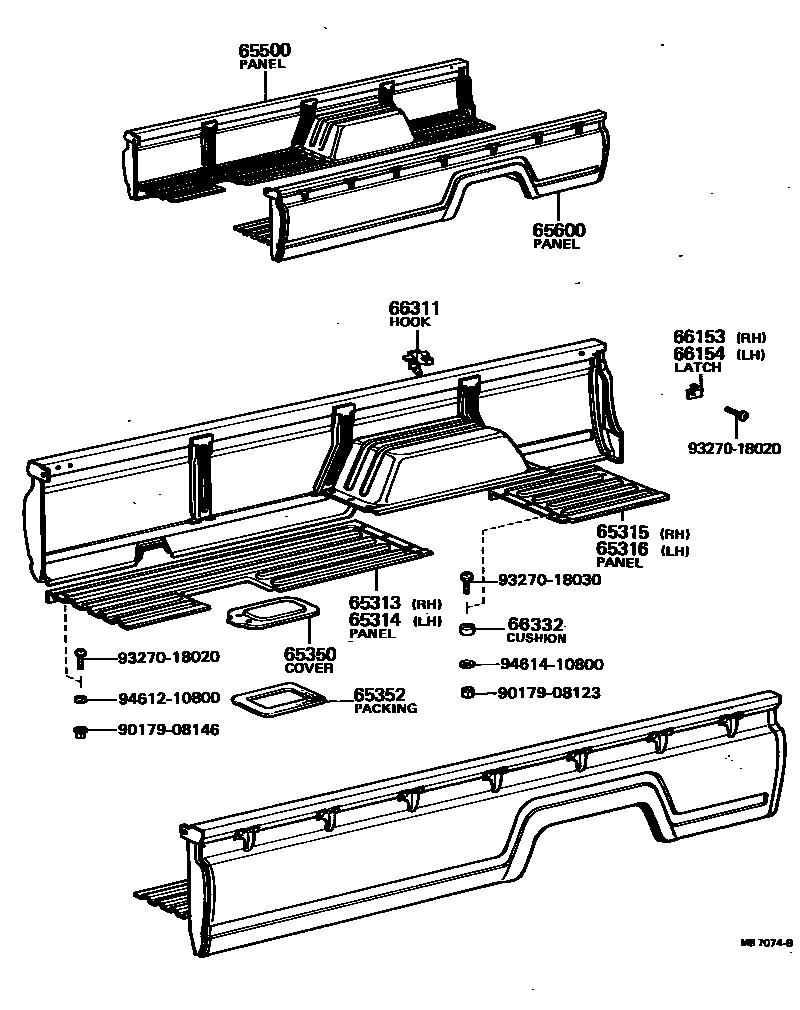

Toyota DYNA — REAR BODY SIDE PANEL
65313PANEL, FLOOR FRONT CORNER, RH
65314PANEL, FLOOR FRONT CORNER, LH
65315PANEL, FLOOR REAR CORNER, RH
65316PANEL, FLOOR REAR CORNER, LH
65350COVER ASSY, BATTERY SERVICE HOLE
65352PACKING, BATTERY SERVICE HOLE COVER
65500PANEL ASSY, REAR BODY SIDE, RH
FR
SAUDI ARABIA SPEC
RR
65600PANEL ASSY, REAR BODY SIDE, LH
SAUDI ARABIA SPEC
FR
RR
66153LATCH, TAIL GATE FEMALE, RH
66154LATCH, TAIL GATE FEMALE, LH
66311HOOK, ROPE
66332CUSHION, RUBBER
9017908123
main90179-08123
9017908146
main90179-08146
9327018020
main93270-18020
9327018030
main93270-18030
9461210800
main94612-10800
9461410800
main94614-10800
18 parts on this diagram · 7 diagrams in section
REAR BODY SIDE PANEL for Toyota DYNA
This section contains 73 genuine Toyota parts for the REAR BODY SIDE PANEL system of the Toyota DYNA. Key components include: COLUMN SUB-ASSY, CENTER, PANEL, FLOOR FRONT CORNER, RH, PANEL, FLOOR FRONT CORNER, LH, PANEL, FLOOR REAR CORNER, RH, PANEL, FLOOR REAR CORNER, LH.
