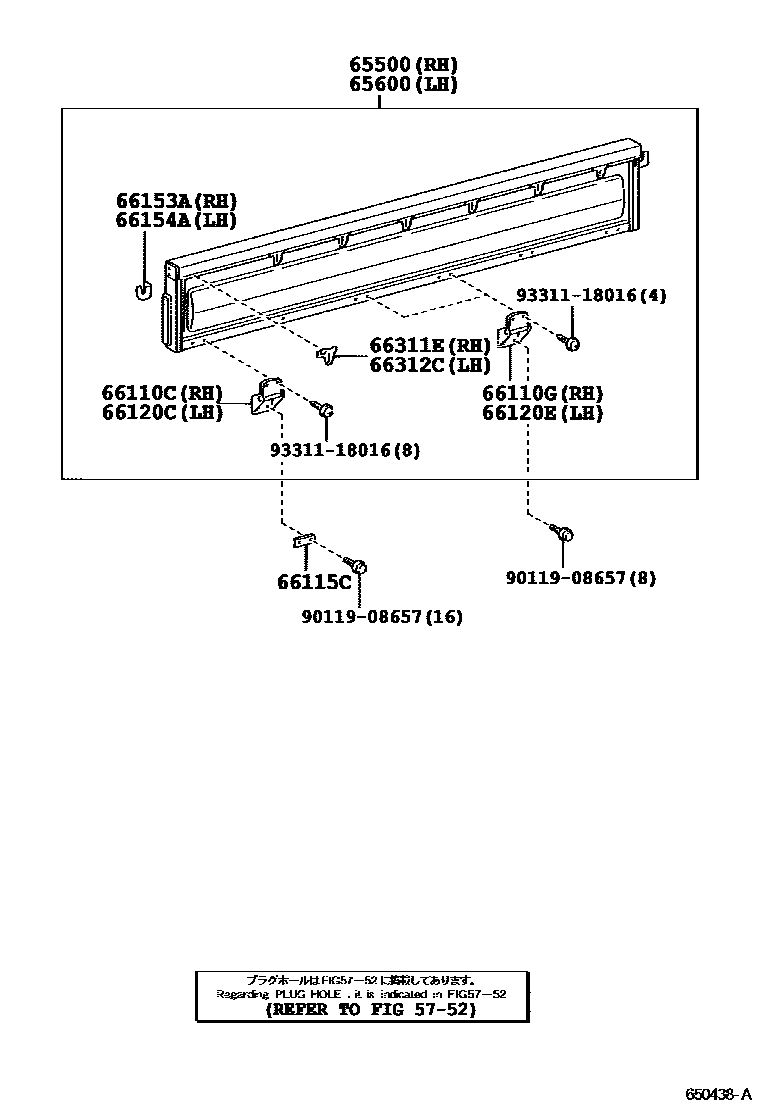

Toyota DYNA — REAR BODY SIDE PANEL

0001 1 0002 1

65500PANEL ASSY, REAR BODY SIDE, RH

main65500-37040iBU303,WU300..CBU200212-200610

main65500-3V880iBU343,WU340..CBU200212-200610

65600PANEL ASSY, REAR BODY SIDE, LH

main65600-37040iBU303,WU300..CBU200212-200610

main65600-3V880iBU343,WU340..CBU200212-200610

66110CHINGE ASSY, SIDE GATE, NO.1 RH

main65010-37040×5iBU343,WU340..CBU200212-200610

CENTER

main65010-37041×7iWU34#..CBU201101-201106

sub65010-37042

main65050-37080×2iBU343,WU340..CBU200212-200610

FRONT & REAR

main66110-95407×4iWU30#..CBU200610-201106

66110GHINGE ASSY, SIDE GATE, NO.2 RH

main66110-95409×2iBU303,WU300..CBU200212-200610

66115CRETAINER, GATE HINGE

main66115-95018×8iBU303..CBU;WU300..GCC..CBU200212-200505

66120CHINGE ASSY, SIDE GATE, NO.1 LH

main65010-37040×5iBU343,WU340..CBU200212-200610

CENTER

main65010-37041×7iWU34#..CBU201101-201106

sub65010-37042

main65050-37080×2iWU34#..CBU200610-200807

FRONT & REAR

main66110-95407×4iBU303,WU300..CBU200212-200610

66120EHINGE ASSY, SIDE GATE, NO.2 LH

main66110-95409×2iWU30#..CBU200610-201106

66153ALATCH, TAIL GATE FEMALE, RH

main66153-37010iBU343,WU340..CBU200212-200610

main66153-95111iBU303,WU300..CBU200212-200610

66154ALATCH, TAIL GATE FEMALE, LH

main66154-37010iBU343,WU340..CBU200212-200610

main66154-95111iBU303,WU300..CBU200212-200610

66311EHOOK, ROPE

main66311-37010×7iBU303,WU300..CBU200212-200610

66312CHOOK, ROPE

main66311-37010×7iBU303,WU300..CBU200212-200610

9011908657

main90119-08657

9331118016

main93311-18016

13 parts on this diagram · 2 diagrams in section
