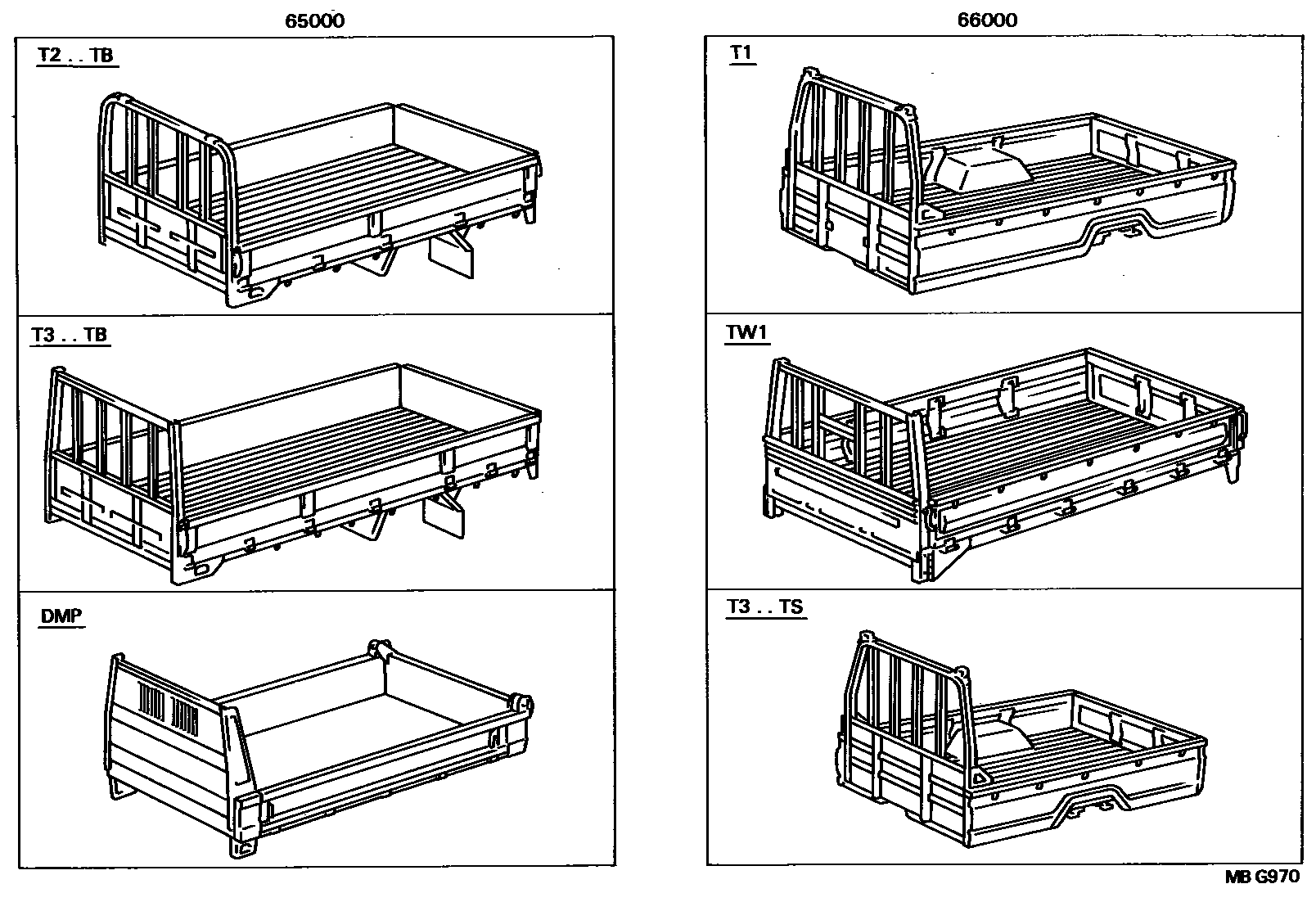

Toyota DYNA — REAR BODY ASSEMBLY

65000BODY ASSY, REAR

main65000-92100i198409-198708

main65000-92106i198409-198708

W/SCHNORKEL TYPE AIR CLEANER

main65000-92107i198409-198708

main65000-92190i198510-198708

main65000-92616i198508-198708

W/SCHNORKEL TYPE AIR CLEANER

main65000-92618i198508-198708

W/SCHNORKEL TYPE AIR CLEANER

main65000-92784i198409-198708

main65000-92785i198409-198708

main65000-92786i198409-198708

main65000-93104i198409-198508

main65000-93114i198508-198708

66000BODY SUB-ASSY, REAR

main66000-92702i198409-198708

main66000-95447i198409-198708

main66000-95448i198409-198708

main66000-95449i198409-198708

W/SCHNORKEL TYPE AIR CLEANER

main66000-95450i198409-198708

main66000-95451i198409-198708

W/SCHNORKEL TYPE AIR CLEANER

2 parts on this diagram · 1 diagram in section

REAR BODY ASSEMBLY for Toyota DYNA

This section contains 2 genuine Toyota parts for the REAR BODY ASSEMBLY system of the Toyota DYNA. Key components include: BODY ASSY, REAR, BODY SUB-ASSY, REAR.
