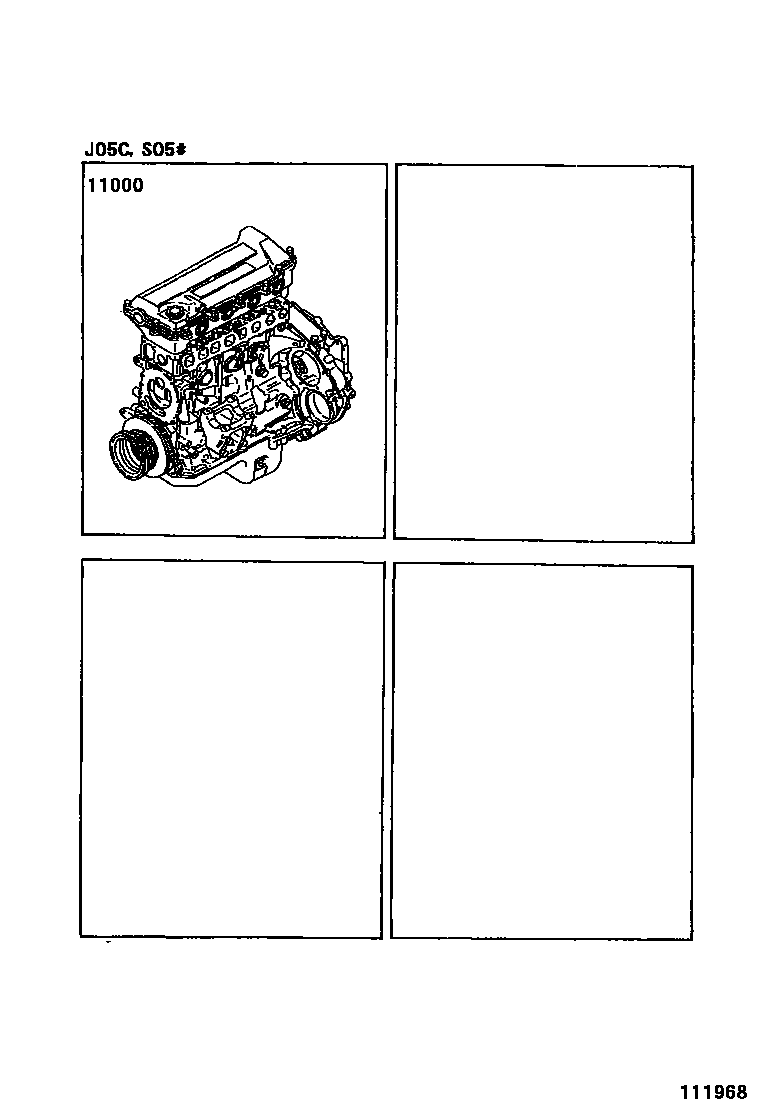

Toyota DYNA — PARTIAL ENGINE ASSEMBLY

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-78170i200010-200206

main19000-78200i200010-200206

main19000-78210i200010-200206

main19000-78330i200010-200206

1 parts on this diagram · 1 diagram in section
