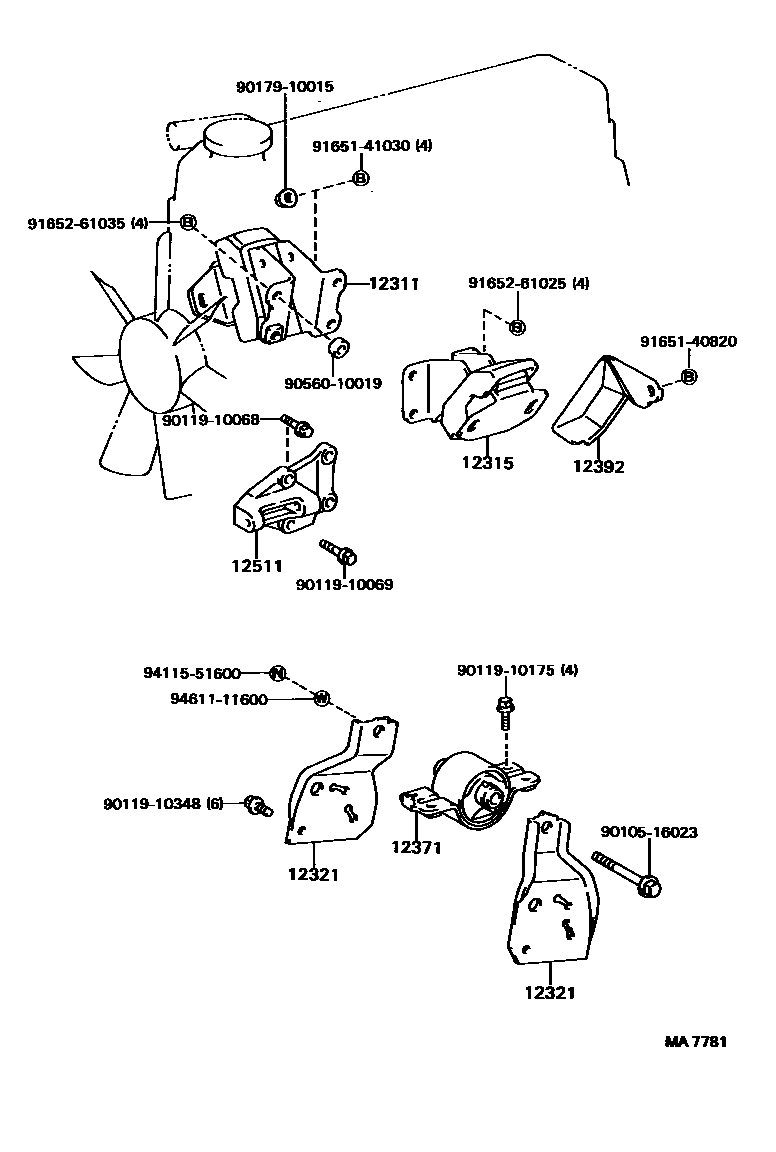

Toyota DYNA — MOUNTING

0001 1 0002 1 0003 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12301-35141i22R..RU75,85198409-198708

main12311-71010i3Y,4Y..YU6#,7#,8#198409-198708

main12311-78020i1W..WU9#198409-198708

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12302-35070i22R..RU75,85198409-198708

sub12302-35120

main12311-78020i1W..WU9#198409-198708

main12315-71010i3Y,4Y..YU6#,7#,8#198409-198708

12321BRACKET, ENGINE MOUNTING, REAR, NO.1

main12321-56050i3Y,4Y..YU6#,70,80198409-198508

main12321-56080i3Y,4Y..YU6#,7#,8#198508-198708

main12321-58020i22R..RU75,85198409-198508

RH

main12321-58040i1W..WU9#198409-198508

main12321-58050i1W..WU9#..GEN198508-198708

RH

main12321-78010i1W..WU9#..ARL,SA198508-198708

main12325-58020i22R..RU75,85198409-198508

LH

main12325-58050i22R..RU75,85198508-198708

LH

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-56040i1W..WU9#..ARL,GEN198506-198508

main12371-56041i1W..WU9#..ARL,GEN198508-198708

main12371-56050i1W..WU9#..SA198506-198708

12392INSULATOR, ENGINE MOUNTING HEAT, FRONT LH

main12391-72010i3Y,4Y..YU6#,7#,8#198409-198708

main12392-35010i22R..RU75,85198409-198708

12511BRACKET, ALTERNATOR, NO.1

main12511-35010i22R..RU75,85198409-198708

main12511-71010i3Y,4Y..YU6#,7#,8#198409-198708

main12511-78010i1W..WU9#198409-198708

sub12501-78010

9010516023

main90105-16023

9011910068

main90119-10068

9011910069

main90119-10069

9011910175

main90119-10175

9011910348

main90119-10348

9017910015

main90179-10015

9056010019

main90560-10019

9165140820

main91651-40820

9165141030

main91651-41030

9165261025

main91652-61025

9165261035

main91652-61035

9411551600

main94115-51600

9461111600

main94611-11600

19 parts on this diagram · 3 diagrams in section
