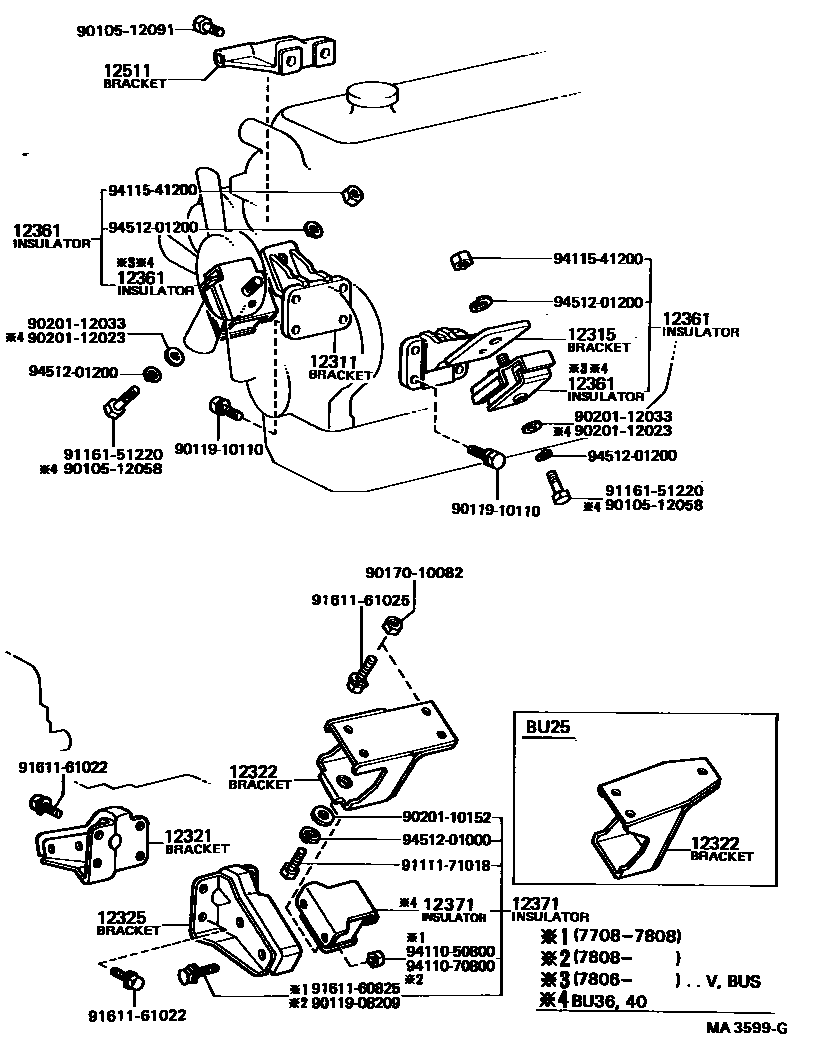

Toyota DYNA — MOUNTING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-44020i5R..RU2#,30197708-198408

main12311-47030iH..HU30197708-198104

main12311-48020i2J..JU20197708-197904

sub12311-48030

main12311-56010iB..BU2#,30197708-198008

main12311-56030iB,2B,3B..BU2#,3#,40198008-198411

main12311-68050i2H..HU40,50198204-198408

main12311-78010i1W..WU40,50198304-198408

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12311-56010iB..BU2#,30197708-198008

main12311-56030iB,2B,3B..BU2#,3#,40198008-198411

main12311-78010i1W..WU40,50198304-198408

main12312-44010i5R..RU2#,30197708-198408

main12315-47030iH..HU30197708-198104

main12315-48020i2J..JU20197708-197904

main12315-68030i2H..HU40,50198204-198408

12321BRACKET, ENGINE MOUNTING, REAR, NO.1

main12321-47041iH..HU30197708-198104

main12321-56031i2J..JU20197708-198411

main12321-56040i5R..RU25197803-198408

main12321-68020i2H..HU40,50198204-198408

12322BRACKET, ENGINE MOUNTING, REAR NO.2

main12322-44041×2i5R..RU25198009-198408

main12322-56040×2i5R..RU25197803-198009

main12322-56050×2iB..BU20..TS..WT..(ARL,GEN)..IV3197911-198408

DUMP SPEC

main12322-56060×2i2J..JU20197708-198411

main12322-68020i2H..HU40,50198204-198408

RH

main12326-68010i2H..HU40,50198204-198408

LH

12325BRACKET, ENGINE MOUNTING, NO.3

main12325-47041iH..HU30197708-198104

main12325-56021i2J..JU20197708-198411

main12325-56030i5R..RU25197803-198408

main12325-68020i2H..HU40,50198204-198408

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-44060×2i5R..RU2#,30198103-198408

main12361-47021×2iH..HU30198003-198104

main12361-49065iH..HU30197708-198003

RH

sub94115-51200

sub94512-01200

main12361-49105i2J..JU20197708-197904

RH

main12361-49115i5R..RU2#,30197708-198103

RH

main12361-56040×2i3B..BU36,40198204-198408

main12361-56050×2iB..BU20..V197806-197901

main12361-56051×2iB..BU20..HRF,SRF197901-198408

main12361-59026×2iB,2B,3B..BU2#,30,31,32..DMP,TR197806-198411

sub12361-56021

sub94115-41200

sub94512-01200

main12361-59055×2iB..BU20,30197708-197806

main12361-68040i2H..HU40,50198204-198408

RH

main12361-78010×2i1W..WU40,50198304-198408

main12362-49025iH..HU30197708-198003

LH

sub94115-51200

sub94512-01200

main12362-49045i2J..JU20197708-197904

LH

main12362-49055i5R..RU2#,30197708-198103

LH

main12362-68010i2H..HU40,50198204-198408

LH

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-48010×2i1W..WU40,50198204-198408

main12371-59025×2i2J..JU20197708-198003

sub12371-56030

sub90119-08209

sub90201-10152

sub91111-71018

sub94110-70800

sub94512-01000

main12371-59035×2iB..BU2#,30197708-197806

sub12371-57011

main12371-68030×2i2H..HU40,50198204-198408

12511BRACKET, ALTERNATOR, NO.1

main12511-40012i5R..RU2#,30197708-198408

12V 30A ALTERNATOR

main12511-40020i5R..RU2#,30..GEN197809-198408

12V 40A ALTERNATOR

main12511-44020i5R..RU2#,30..GEN197708-197809

12V 40A ALTERNATOR

main12511-48010i2J..JU20197708-198104

main12511-56020iB..BU2#,30197708-198008

main12511-56030iB,2B,3B..BU2#,3#198008-198202

main12511-56031iB,2B,3B..BU2#,3#,40198202-198411

main12511-68010i2H..HU40,50198204-198408

sub12511-68011

main12511-78010i1W..WU40,50198304-198408

sub12501-78010

9010512058

main90105-12058

9010512091

main90105-12091

9011908209

main90119-08209

9011910110

main90119-10110

9017010082

main90170-10082

9020110152

main90201-10152

9020112023

main90201-12023

9020112033

main90201-12033

9111171018

main91111-71018

9116151220

main91161-51220

9161160825

main91611-60825

9161161022

main91611-61022

9161161025

main91611-61025

9411050800

main94110-50800

9411070800

main94110-70800

9411541200

main94115-41200

9451201000

main94512-01000

9451201200

main94512-01200

26 parts on this diagram · 7 diagrams in section
