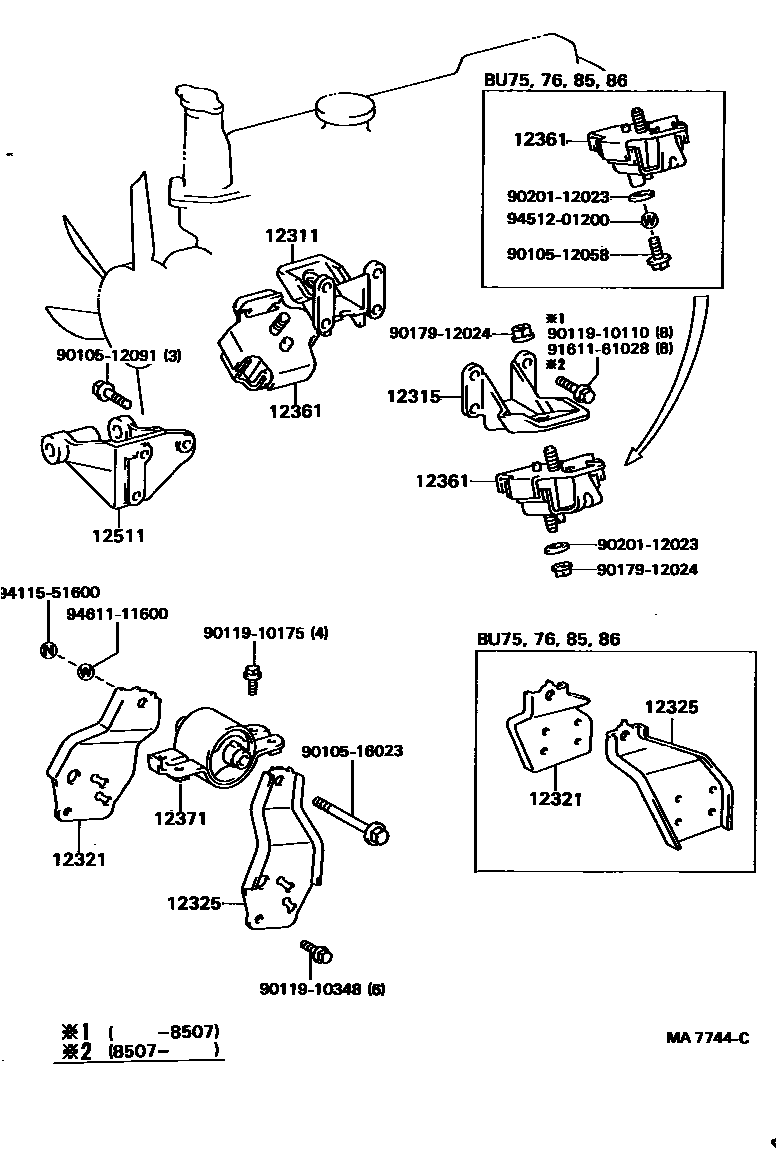

Toyota DYNA — MOUNTING

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-56040iB,11B,13B..BU6#,70,80,81,82198409-198708

main12311-58021iB,11B,13B..BU75,76,85,86198409-198708

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12311-56040iB,11B,13B..BU6#,70,80,81,82198409-198708

main12311-58021iB,11B,13B..BU75,76,85,86198409-198708

12321BRACKET, ENGINE MOUNTING, REAR, NO.1

main12321-56050iB,11B,13B..BU6#,70,80,81,82198409-198508

main12321-56070i13B..BU62..ARL198510-198708

main12321-56080i11B..BU65..CBU198508-198708

main12321-58020iB,11B,13B..BU75,76,85198409-198508

main12321-58050iB,11B,13B..BU75,76,85,86198508-198708

12325BRACKET, ENGINE MOUNTING, NO.3

main12325-56040i11B..BU65..IV3198508-198708

main12325-56060i13B..BU62..ARL198510-198708

main12325-56070i11B..BU65..CBU198508-198708

main12325-58020iB,11B,13B..BU75,76,85198409-198508

main12325-58050iB,11B,13B..BU75,76,85,86198508-198708

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-56070iB,11B,13B..BU6#,70,80,81,82198409-198708

RH

main12361-58040×2iB,11B,13B..BU75,76,85,86198409-198708

main12362-56010iB,11B,13B..BU6#,70,80,81,82198409-198708

LH

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-56040iB,11B,13B..BU6#,7#,8#198409-198508

main12371-56041iB,11B,13B..BU6#,7#,8#198508-198708

12511BRACKET, ALTERNATOR, NO.1

main12511-56040iB,11B,13B..BU6#,7#,8#198409-198708

9010512058

main90105-12058

9010512091

main90105-12091

9010516023

main90105-16023

9011910110

main90119-10110

9011910175

main90119-10175

9011910348

main90119-10348

9017912024

main90179-12024

9020112023

main90201-12023

9161161028

main91611-61028

9411551600

main94115-51600

9451201200

main94512-01200

9461111600

main94611-11600

19 parts on this diagram · 1 diagram in section
