Toyota DYNA — MIRROR
87093ASTAY SUB-ASSY, OUTER REAR VIEW MIRROR, RH
OUTSIDE REAR VIEW MIRROR-W(HARNESS & SWITCH) & W/O(MIRROR & STAY)
OUTSIDE REAR VIEW MIRROR-W(HARNESS & SWITCH) & W/O(MIRROR & STAY)
OUTSIDE REAR VIEW MIRROR-CONVEX MIRROR, *LOS
OUTSIDE REAR VIEW MIRROR-CONVEX MIRROR, *LOS
OUTSIDE REAR VIEW MIRROR-CONVEX MIRROR, *LOS
87094ASTAY SUB-ASSY, OUTER REAR VIEW MIRROR, LH
OUTSIDE REAR VIEW MIRROR-W(HARNESS & SWITCH) & W/O(MIRROR & STAY)
OUTSIDE REAR VIEW MIRROR-W(HARNESS & SWITCH) & W/O(MIRROR & STAY)
OUTSIDE REAR VIEW MIRROR-CONVEX MIRROR, *LOS
OUTSIDE REAR VIEW MIRROR-CONVEX MIRROR, *LOS
OUTSIDE REAR VIEW MIRROR-CONVEX MIRROR, *LOS
87810MIRROR ASSY, INNER REAR VIEW
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.,TYPE B:REFER ILLUST.
NO PAINT REQ.,TYPE B:REFER ILLUST.
TYPE B:REFER ILLUST.
OUTSIDE REAR VIEW MIRROR-W(HARNESS & SWITCH) & W/O(MIRROR & STAY),TYPE D:REFER ILLUST.
NO PAINT REQ.,TYPE D:REFER ILLUST.
OUTSIDE REAR VIEW MIRROR-CONVEX MIRROR, *LOS
NO PAINT REQ.
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.,TYPE B:REFER ILLUST.
NO PAINT REQ.,TYPE B:REFER ILLUST.
TYPE B:REFER ILLUST.
OUTSIDE REAR VIEW MIRROR-CONVEX MIRROR, *LOS
NO PAINT REQ.
OUTSIDE REAR VIEW MIRROR-W(HARNESS & SWITCH) & W/O(MIRROR & STAY),TYPE D:REFER ILLUST.
NO PAINT REQ.,TYPE D:REFER ILLUST.
87907MIRROR SUB-ASSY, OUTER UNDER VIEW
main87907-0W050
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-CONVEX MIRROR, *LOS
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-CONVEX MIRROR, *LOS
NO PAINT REQ.
OUTSIDE REAR VIEW MIRROR-CONVEX MIRROR, *LOS
NO PAINT REQ.
NO PAINT REQ.
87911GASKET, OUTER REAR VIEW MIRROR, RH
OUTSIDE REAR VIEW MIRROR-DOOR MIRROR, *LOS, *MIH, *RCM
87914BCOVER, OUTER MIRROR KNOB, RH
OUTSIDE REAR VIEW MIRROR-CONVEX MIRROR, *LOS
87914CCOVER, OUTER MIRROR KNOB, LH
OUTSIDE REAR VIEW MIRROR-CONVEX MIRROR, *LOS
87915COVER, OUTER MIRROR, RH
NO PAINT REQ.
OUTSIDE REAR VIEW MIRROR-DOOR MIRROR, *LOS, *MIH, *RCM
87915ACOVER, OUTER MIRROR, RH
OUTSIDE REAR VIEW MIRROR-W(HARNESS & SWITCH) & W/O(MIRROR & STAY)
87917CSCREW, OUTER MIRROR
FOR RH MIRROR
OUTSIDE REAR VIEW MIRROR-W(HARNESS & SWITCH) & W/O(MIRROR & STAY),FOR RH MIRROR
87937HOLDER, MIRROR, RH
OUTSIDE REAR VIEW MIRROR-W(HARNESS & SWITCH) & W/O(MIRROR & STAY)
87937AHOLDER, MIRROR, LH
OUTSIDE REAR VIEW MIRROR-W(HARNESS & SWITCH) & W/O(MIRROR & STAY)
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-CONVEX MIRROR, *LOS
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-CONVEX MIRROR, *LOS
NO PAINT REQ.
OUTSIDE REAR VIEW MIRROR-CONVEX MIRROR, *LOS
NO PAINT REQ.
NO PAINT REQ.
87941GASKET, OUTER REAR VIEW MIRROR, LH
OUTSIDE REAR VIEW MIRROR-DOOR MIRROR, *LOS, *MIH, *RCM
87945COVER, OUTER MIRROR, LH
NO PAINT REQ.
OUTSIDE REAR VIEW MIRROR-DOOR MIRROR, *LOS, *MIH, *RCM
87945BCOVER, OUTER MIRROR, LH
OUTSIDE REAR VIEW MIRROR-W(HARNESS & SWITCH) & W/O(MIRROR & STAY)
8794ACOVER, OUTER MIRROR, LH NO.2
main8794A-0W050
87965GROMMET, OUTER MIRROR
OUTSIDE REAR VIEW MIRROR-CONVEX MIRROR, *LOS
OUTSIDE REAR VIEW MIRROR-CONVEX MIRROR, *LOS
811360W050PROTECTOR, HEADLAMP, NO.1 RH
main81136-0W050
8782337010WASHER, INNER REAR VIEW MIRROR BODY JOINT
main87823-37010
879170W050ESCUTCHEON
main87917-0W050
879310W050OUTER MIRROR, RH
main87931-0W050
9011908C00
main90119-08C00
9015260015
main90152-60015
9017608044
main90176-08044
SZ14806007
mainSZ148-06007

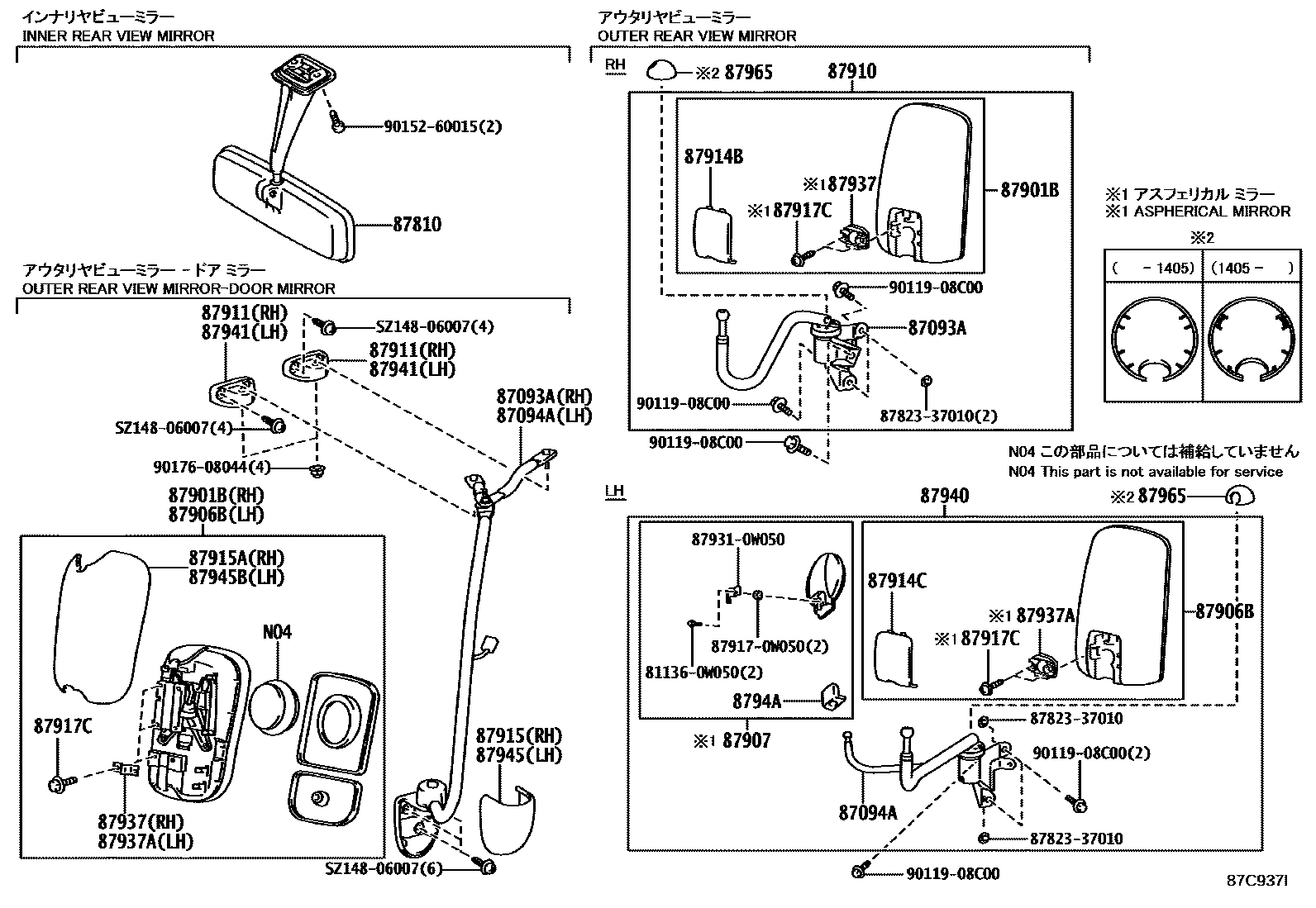

29 parts on this diagram · 2 diagrams in section
MIRROR for Toyota DYNA
This section contains 31 genuine Toyota parts for the MIRROR system of the Toyota DYNA. Key components include: STAY SUB-ASSY, OUTER REAR VIEW MIRROR, RH, STAY SUB-ASSY, OUTER REAR VIEW MIRROR, LH, MIRROR ASSY, INNER REAR VIEW, MIRROR SUB-ASSY, OUTER REAR VIEW, RH, MIRROR SUB-ASSY, OUTER REAR VIEW, LH.
