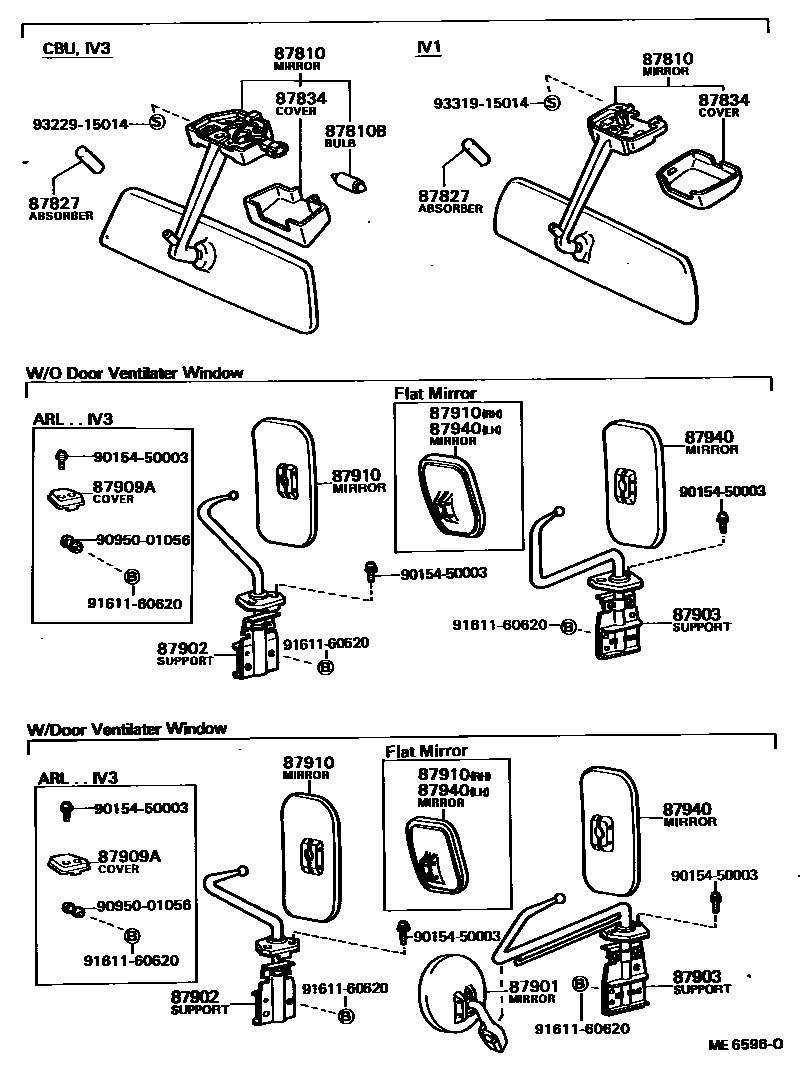

Toyota DYNA — MIRROR

0001 1 0002 1

87810MIRROR ASSY, INNER REAR VIEW

main87810-95404iBU2#,30,HU30,RU2#,30..(ARL,GEN)..(CBU,IV3)197708-198008

12V

main87810-95406iRU20,30..EUR197904-198008

12V

main87810-95407iBU20,30,JU20..EUR197708-198008

24V

main87810-95410iBU20,25,30..LHD..5H..WT..(GEN,GHI)198104-198408

24V

main87810-95411iBU30..5F;BU30..5H..(GEN,GHI)..(CBU,IV3);BU2#,31,32,HU30,RU2#,30..(ARL,GEN)..(CBU,IV3)198008-198411

12V

main87810-95412iHU40,50..GEN..IV3198210-198408

EEC SPEC

main87810-95413iBU20,30..EUR198008-198408

24V

main87810-95414iBU20,30..GEN..IV1198008-198411

main87810-95415iBU40,WU40..LHD198302-198408

24V

main87810-95416iBU36,40,HU40,50,WU40,50198204-198408

12V

87810BBULB, INNER REAR VIEW MIRROR LAMP

main90981-11004iRU20,30..EUR197904-198408

12V 10W,12V 10W

main90981-16019iBU20..ST..EUR;BU20,25,30..LHD..5H..WT198104-198408

24V 10W,24V 10W

87827ABSORBER, INNER REAR VIEW MIRROR

main87828-22020iBU2#,3#,40,HU30,40,50,RU2#,30,WU40,50198008-198411

L=35.8

main87828-23010iBU36,40,HU40,50,WU40198305-198408

L=40.5

main87828-30010iBU36,40,HU40,50,WU40198204-198305

L=44

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main81243-95401iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

87901MIRROR SUB-ASSY, OUTER UNDER VIEW

main87906-95402iBU36,40,WU40,50..LHD198302-198408

main87906-95403iHU40,50..GEN..IV3198210-198212

SOUTH AFRICA SPECIFICATION

main87906-95405iBU23,31198104-198408

87902SUPPORT, REAR VIEW OUTSIDE MIRROR, RH

main87903-95404iBU20,RU20..RHD..ST197708-197802

main87903-95405iRU20..WT..ARL..CBU197912-198008

main87903-95406iBU20,RU20..LHD..ST..GEN197708-198008

main87903-95407iBU20,RU20..LHD..WT..GEN197708-198008

W/*VW

main87903-95408iBU20,JU20..ST..EUR197708-198008

main87903-95409iBU20,RU20,30..WT..EUR197708-198008

main87903-95410iBU20,RU20..RHD..ST..GEN197912-198008

main87903-95412iBU30,RU30..RHD..(GEN,GHI)198008-198411

W/*VW

main87903-95413iBU20,RU20..RHD..ST..GEN198008-198411

main87903-95416iBU2#,30,HU30,RU2#,30..LHD..WT..GEN198008-198104

W/*VW

main87903-95417iBU20..ST..EUR198008-198204

main87903-95418iBU20,30,RU20,30..WT..EUR198008-198408

main87903-95421iBU20,RU20..LHD..ST..GEN198008-198408

main87903-95422iBU20,RU20..LHD..ST..GEN198104-198408

W/*VW

main87903-95424iBU36,40,WU40,50..LHD198302-198408

87903SUPPORT, REAR VIEW OUTSIDE MIRROR, LH

main87904-95404iBU20,RU20..RHD..ST..GEN197912-198008

main87904-95405iRU20..WT..ARL..CBU197912-198008

main87904-95406iBU20,JU20,RU20..LHD..ST197708-197802

main87904-95407iBU25,30,HU30,RU25,30..LHD197708-198008

W/*VW

main87904-95412iRU20,30..(4F,4H)..WT197912-198008

main87904-95414iBU20,30,40,HU40,50,RU20,30..RHD..WT..(GEN,GHI)198302-198411

CONVEX MIRROR

main87904-95416iRU20..ST..ARL198008-198408

main87904-95417iRU20..WT..ARL..CBU198008-198104

W/*VW

main87904-95418iBU20,RU20..LHD..ST..GEN198008-198408

W/*VW

main87904-95419iBU20..ST..EUR198008-198204

main87904-95420iBU20,30,RU20,30..WT..EUR198008-198408

main87904-95425iBU20,RU20..LHD..ST..GEN198008-198408

main87904-95426iBU36,40,HU40,50,WU40..RHD198302-198408

main87904-95427iHU40,50..GEN..IV3198210-198408

SOUTH AFRICA SPECIFICATION

87909ACOVER, OUTER REAR VIEW MIRROR

main87909-95400iBU20,JU20..ST..EUR197708-198008

GRAY

main87909-95401iBU20..ST..EUR198008-198204

BLACK

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87901-90303iHU30,RU2#,30..ARL197708-197912

FLAT MIRROR

main87901-95407iBU2#,30,HU30,RU2#,30..GEN197708-198008

CONVEX MIRROR

main87901-95409iBU20,30,JU20,RU20,30..EUR197708-198008

CONVEX MIRROR

sub87901-95417

main87901-95411iBU36,40,HU40,50,WU40..RHD198204-198408

sub87901-37030

main87901-95412iBU2#,30,31,32,HU30,RU2#,30..GEN,GHI198008-198411

CONVEX MIRROR

main87901-95414iRU20..ARL..CBU198104-198408

FLAT MIRROR

sub87901-37050

main87901-95415iBU36,40,WU40,50..LHD198302-198408

sub87901-37040

main87901-95416iRU20,30..GEN..IV3198212-198408

SOUTH AFRICA SPECIFICATION

sub87901-95417

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87901-90303iBU20,HU30,RU2#,30..ARL..CBU197912-198008

FLAT MIRROR

main87901-95407iBU2#,30,HU30,RU2#,30..GEN197708-198008

CONVEX MIRROR

main87901-95409iBU20,30,JU20,RU20,30..EUR197708-198008

CONVEX MIRROR

sub87901-95417

main87901-95411iBU40,HU40,50198204-198302

sub87901-37030

main87901-95412iBU2#,30,31,32,HU30,RU2#,30..GEN,GHI198008-198411

CONVEX MIRROR

main87901-95414iBU20,HU30,RU20,30..ARL..CBU198008-198104

FLAT MIRROR

sub87901-37050

main87901-95415iBU36,40,HU40,50,WU40..RHD198302-198408

sub87901-37040

main87901-95416iBU20,30,RU20,30..EUR198008-198408

sub87901-95417

9015450003

main90154-50003

9095001056

main90950-01056

9161160620

main91611-60620

9322915014

main93229-15014

9331915014

main93319-15014

15 parts on this diagram · 2 diagrams in section
