Toyota DYNA — MIRROR
87823AWASHER, OUTER REAR VIEW MIRROR BODY JOINT
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
87914BCOVER, OUTER MIRROR KNOB, RH
87914CCOVER, OUTER MIRROR KNOB, LH
87917CSCREW, OUTER MIRROR
87921ARM, OUTER REAR VIEW MIRROR, RH
87922AARM, OUTER REAR VIEW MIRROR, LH
87937HOLDER, MIRROR, RH
OUTSIDE REAR VIEW MIRROR-DOOR MIRROR,*LOS,*MIH,*RCM
87937AHOLDER, MIRROR, LH
OUTSIDE REAR VIEW MIRROR-DOOR MIRROR,*LOS,*MIH,*RCM
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
87965GROMMET, OUTER MIRROR
87967HOLDER, MIRROR, OUTER RH
87968HOLDER, MIRROR, OUTER LH
9011908C00
main90119-08C00

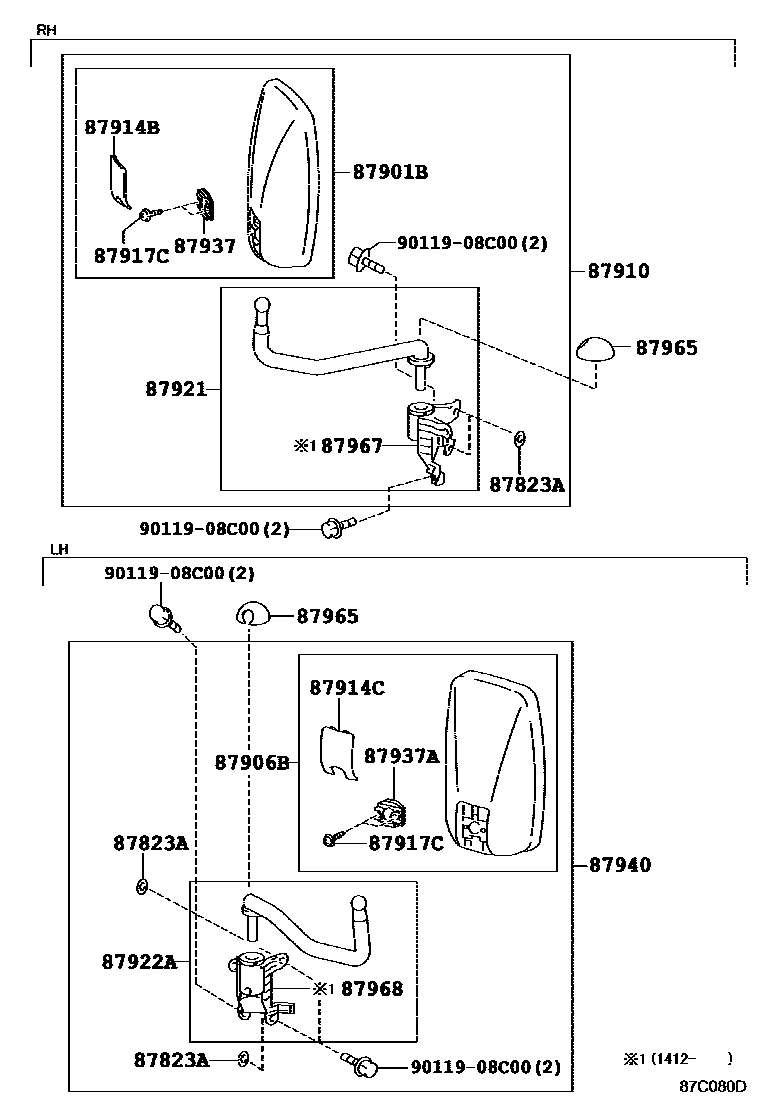

16 parts on this diagram · 4 diagrams in section
MIRROR for Toyota DYNA
This section contains 34 genuine Toyota parts for the MIRROR system of the Toyota DYNA. Key components include: INTERIOR LAMP, STAY SUB-ASSY, OUTER REAR VIEW MIRROR, RH, STAY SUB-ASSY, OUTER REAR VIEW MIRROR, LH, MIRROR ASSY, INNER REAR VIEW, LENS, INNER RR VIEW MIRROR ROOM LAMP.
