Toyota DYNA — MIRROR

0001 1 0002 1

87810MIRROR ASSY, INNER REAR VIEW

main87810-95417iBU60..LHD..TW1;BU60,61,65,80,81..LHD..WT198409-198708

24V,CHINA OR ALGERIA SPEC

main87810-95418iBU65..CBU;BU60,61,62,63,70,80,81,82..(ARL,GEN,GHD)..(CBU,IV3)198409-198708

12V

main87810-95419iBU75,85..EUR198409-198607

24V

main87810-95420iBU81..SA198604-198607

main87810-95421iBU85..LHD..GEN198508-198708

24V,CHINA SPEC

main87810-95422iBU75,76,85,86..(ARL,GEN)..(CBU,IV3)198409-198708

12V

main87810-95424iBU85..IV1198409-198708

main87810-95425iBU75,85..EUR198607-198708

24V

main87810-95426iBU81..SA198607-198708

87810BBULB, INNER REAR VIEW MIRROR LAMP

main90981-11027iBU6#,7#,8#..CBU,IV3198409-198708

12V 10W,12V 10W

main90981-16019iBU75,85..EUR198409-198708

24V 10W,24V 10W

87827ABSORBER, INNER REAR VIEW MIRROR

main87828-23010iBU6#,7#,8#198409-198708

L=38.5

main87828-30010iBU6#,7#,8#198409-198708

L=43.5

main87828-32010iBU6#,7#,8#198409-198708

L=46.5

main87828-92600iBU70,86;BU60,85..TW1198409-198708

L=49.5

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main81243-95701iBU6#,7#,8#198409-198708

9015260008

main90152-60008

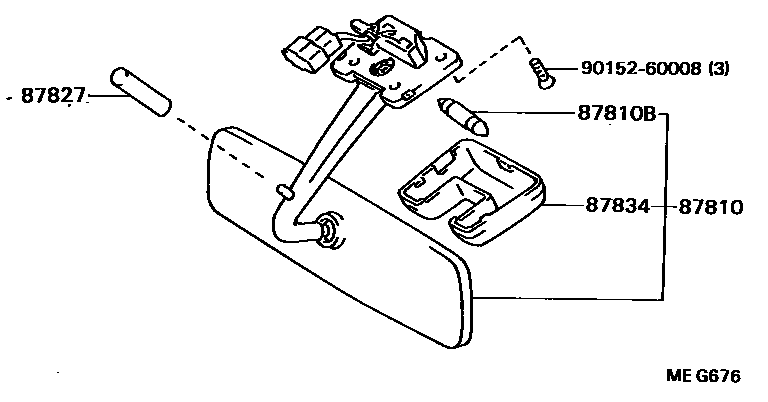

5 parts on this diagram · 2 diagrams in section
