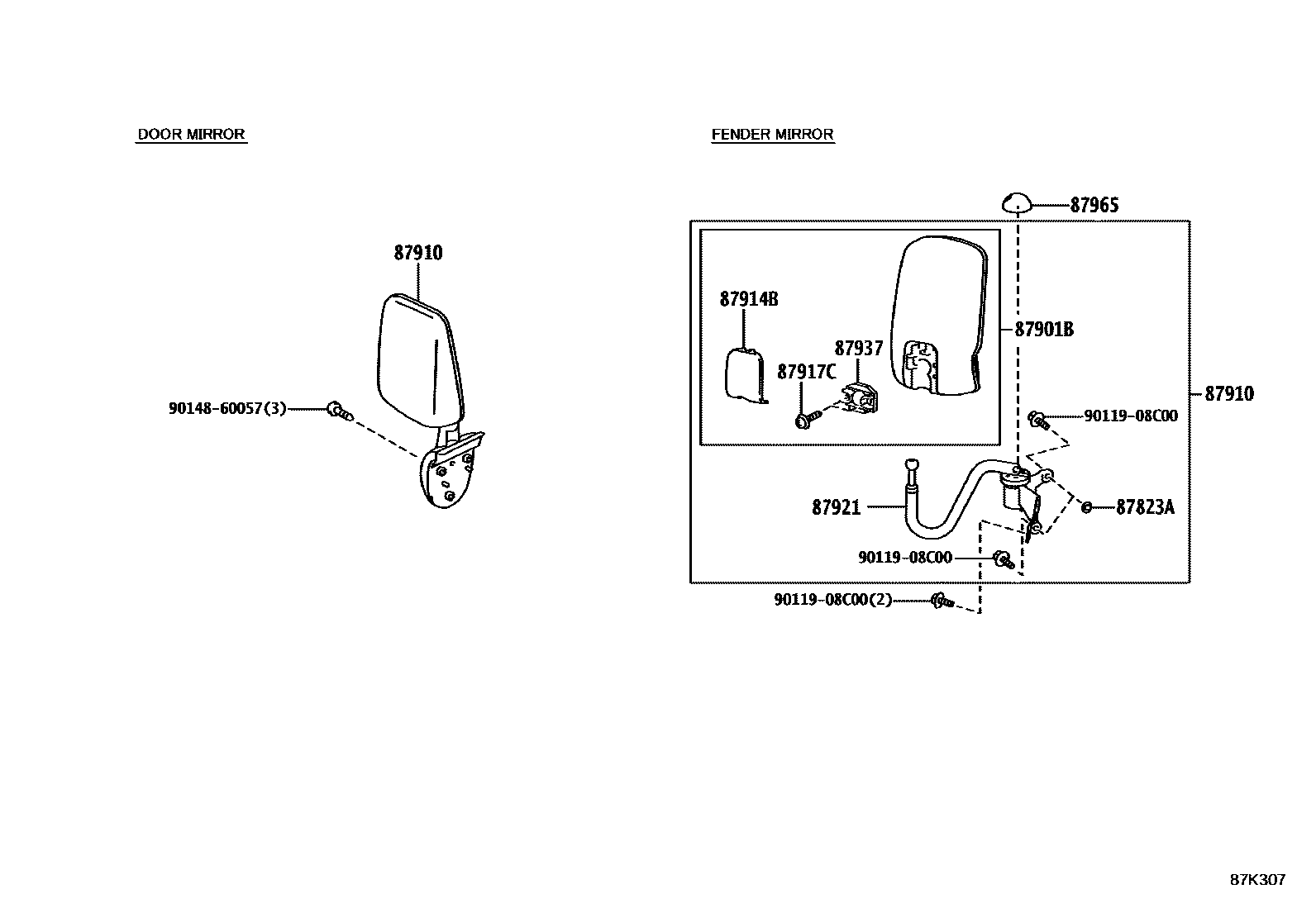

Toyota DYNA — MIRROR

0001 1OUTER REAR VIEW MIRROR(RH) 0002 1OUTER REAR VIEW MIRROR(LH) 0003 1OUTER REAR VIEW MIRROR 0004 1INNER REAR VIEW MIRROR

87823AWASHER, OUTER REAR VIEW MIRROR BODY JOINT

main87823-37010×2iGDY231..CBU202108-202305

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87901-37140iLY230..LHD202202-202503

NO PAINT REQ.

main87901-37232iGDY231..IV3202202-202405

NO PAINT REQ.

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-25040iGDY231..CBU202108-202305

NO PAINT REQ.

main87910-37745iGDY231..IV3202202-202405

NO PAINT REQ.

main87910-37782iLY230..LHD202202-202404

NO PAINT REQ.

main87910-37783iLY230..LHD202405-202503

NO PAINT REQ.

87914BCOVER, OUTER MIRROR KNOB, RH

main87914-37010iGDY231..IV3202202-202405

main87914-37020iLY230..LHD202202-202503

87917CSCREW, OUTER MIRROR

main87929-37070×2supersedes 87929-37070iGDY231..CBU202108-202305

87921ARM, OUTER REAR VIEW MIRROR, RH

main87921-37040iGDY231..IV3202202-202405

main87921-37090iLY230..LHD202202-202503

87937HOLDER, MIRROR, RH

main87937-37030iGDY231..IV3202202-202405

87965GROMMET, OUTER MIRROR

main87965-37030iGDY231..CBU202108-202305

9011908C00

main90119-08C00

9014860057

main90148-60057

10 parts on this diagram · 4 diagrams in section
