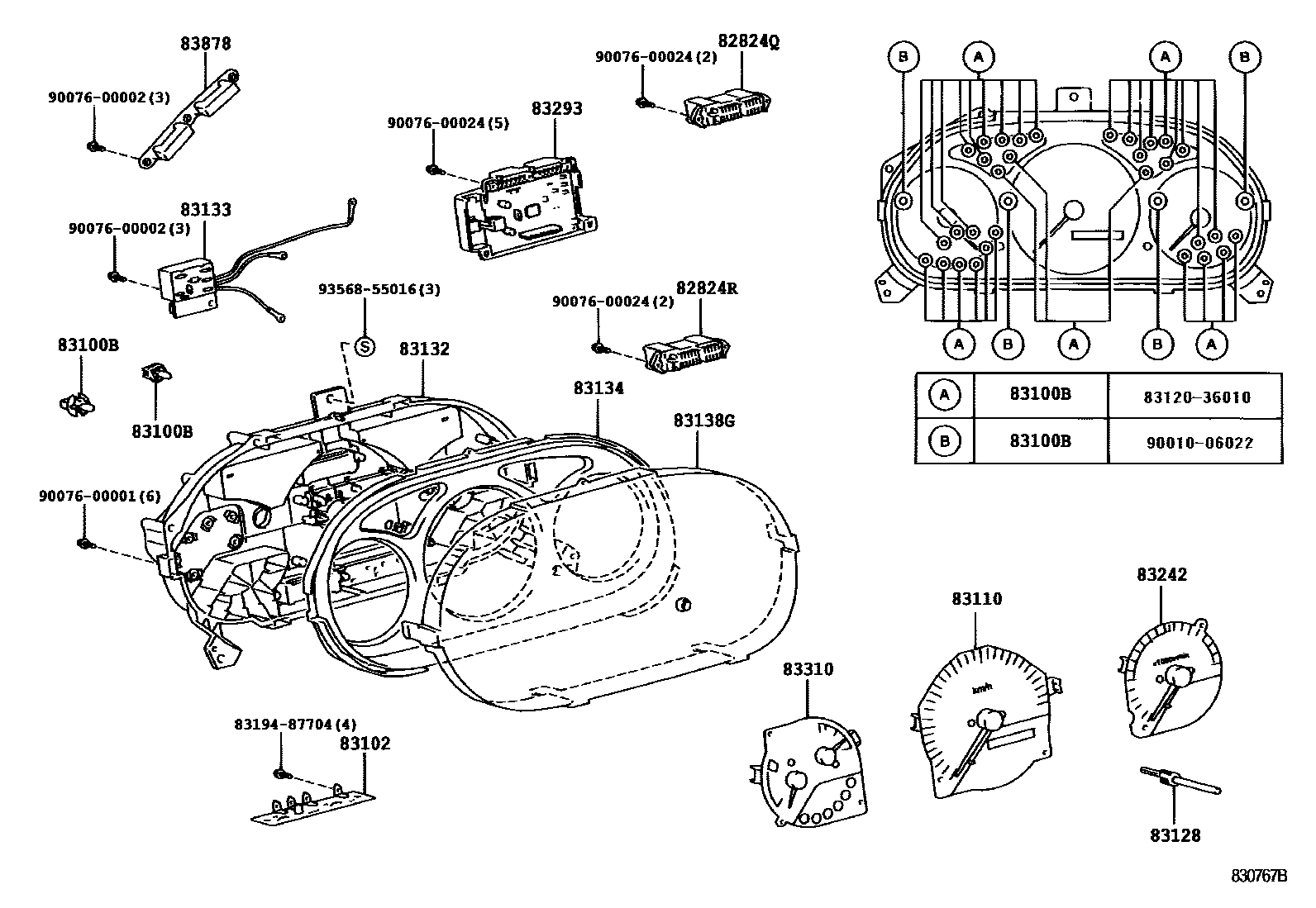

Toyota DYNA — METER
82824QCONNECTOR, WIRING HARNESS, NO.1(FOR SPEEDOMETER)
82824RCONNECTOR, WIRING HARNESS, NO.2(FOR SPEEDOMETER)
83100METER ASSY, COMBINATION
W(SPEED METER---MILE/H & KM/H) & W(TACHO METER)
W(SPEED METER---MILE/H & KM/H)
W(TACHOMETER)
W(TACHOMETER)
W/O(TACHOMETER)
W/O(TACHOMETER)
W(TACHOMETER)
W(TACHOMETER)
W(SPEED METER---MILE/H & KM/H) & W(TACHO METER)
W(SPEED METER---MILE/H & KM/H)
W(TACHOMETER)
W(TACHOMETER)
W(SPEED METER---MILE/H & KM/H) & W(TACHO METER)
W(SPEED METER---MILE/H & KM/H)
W/O(TACHOMETER)
W(TACHOMETER)
W(TACHOMETER)
W(SPEED METER---MILE/H & KM/H) & W(TACHO METER)
W(SPEED METER---MILE/H & KM/H) & W(TACHO METER)
W/O(TACHOMETER)
W(SPEED METER---MILE/H & KM/H)
83100BBULB, COMBINATION METER, NO.1
24V 1.4W,W(SOCKET)
24V 3W,W(GREEN CAP)
83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
83110SPEEDOMETER ASSY
83128KNOB, TRIP COUNTER
83132CASE, COMBINATION METER
83133PLATE, COMBINATION METER, NO.1
83134COVER, COMBINATION METER, NO.1
83138GGLASS, COMBINATION METER
83242TACHOMETER ASSY, ENGINE
83293COMPUTER, TOTAL COUNTER MODULE
83310GAGE ASSY, FUEL RECEIVER
83878RESISTOR, COMBINATION METER
8319487704
main83194-87704
9007600001
main90076-00001
9007600002
main90076-00002
9007600024
main90076-00024
9356855016
main93568-55016
20 parts on this diagram · 6 diagrams in section
